3.6 BLADE EJECTOR
WORM SCREW AND
BLADE EJECTOR REMOVAL

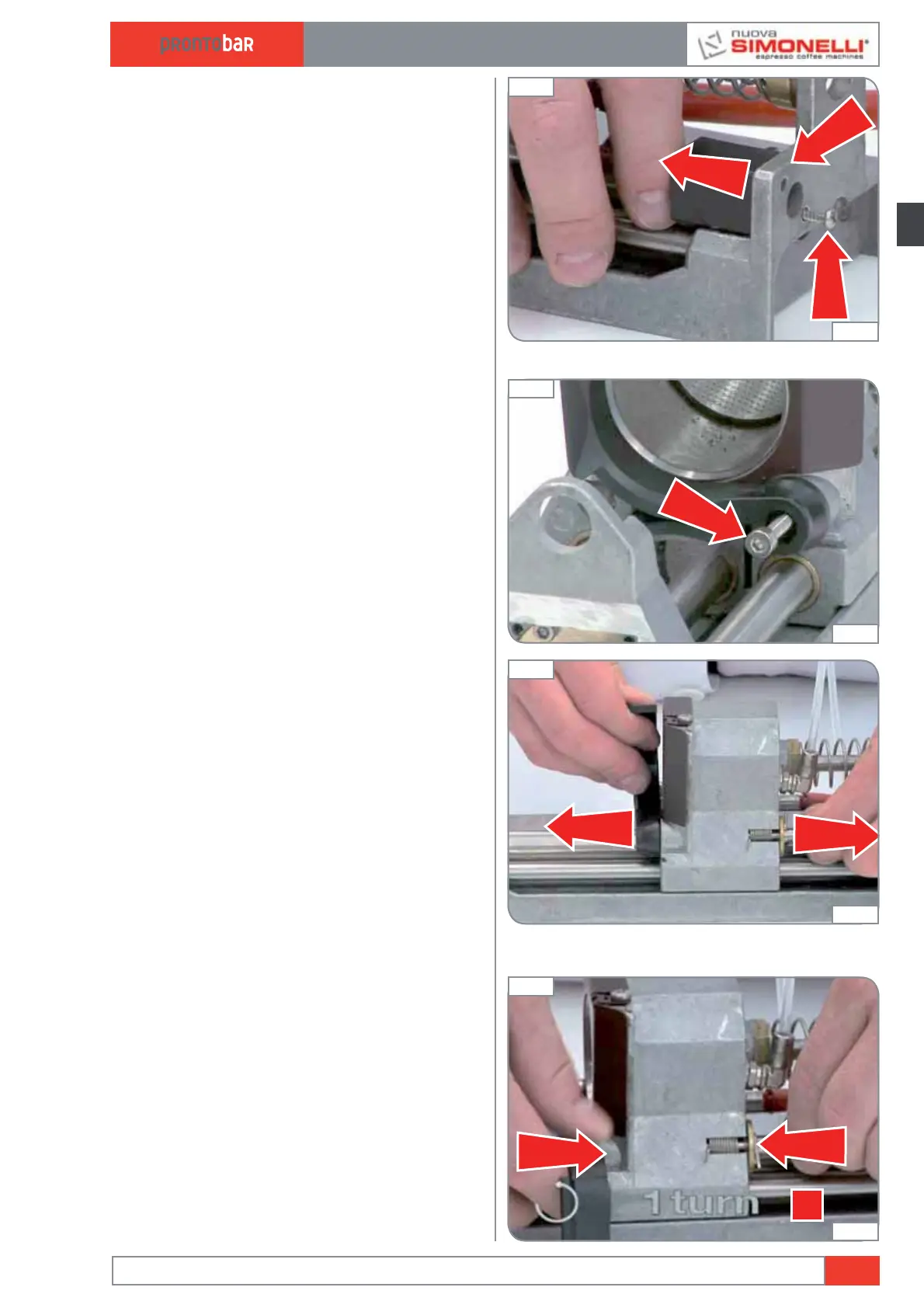

The blade ejector worm screw is located on the
lower support bracket of the group.
1
Once the pouring group has been removed (see
par. 3.1); it is possible to take out the blade ejec-
tor worm screw by removing the two screws on
the base with a philips screw driver.
2 To remove the blade ejector, it is necessary
to undo the screw with a 3 mm allen wrench.
When refitting, the engineer will have to:
4 Reposition the shaft.
5 Pre-load the spring by one turn using the
blade.
3 Gently turn the blade to free it from the shaft
and infusion chamber.
Edition 02 to 02/2014
3.9
SERVICE MANUAL
1
1
Fig. 74
03:41
2
Fig. 75
03:54
3
3
Fig. 76
03:57
4
4
5
Fig. 77
03:17
