9 The spring is secured to the blade ejector
shaft.
10 Wash everything with water and degreas-
ing soap. For a detailed overview of these
actions, please refer to previous section of
this chapter.
4.2.2 REASSEMBLING POURING
GROUP AND SUBSTITUTE
PARTS
When reassembling, the service engineer will
replace the following components:
1 Top and bottom piston seals.
2 Top and bottom piston showers.
Edition 02 to 02/2014
4.11
SERVICE MANUAL

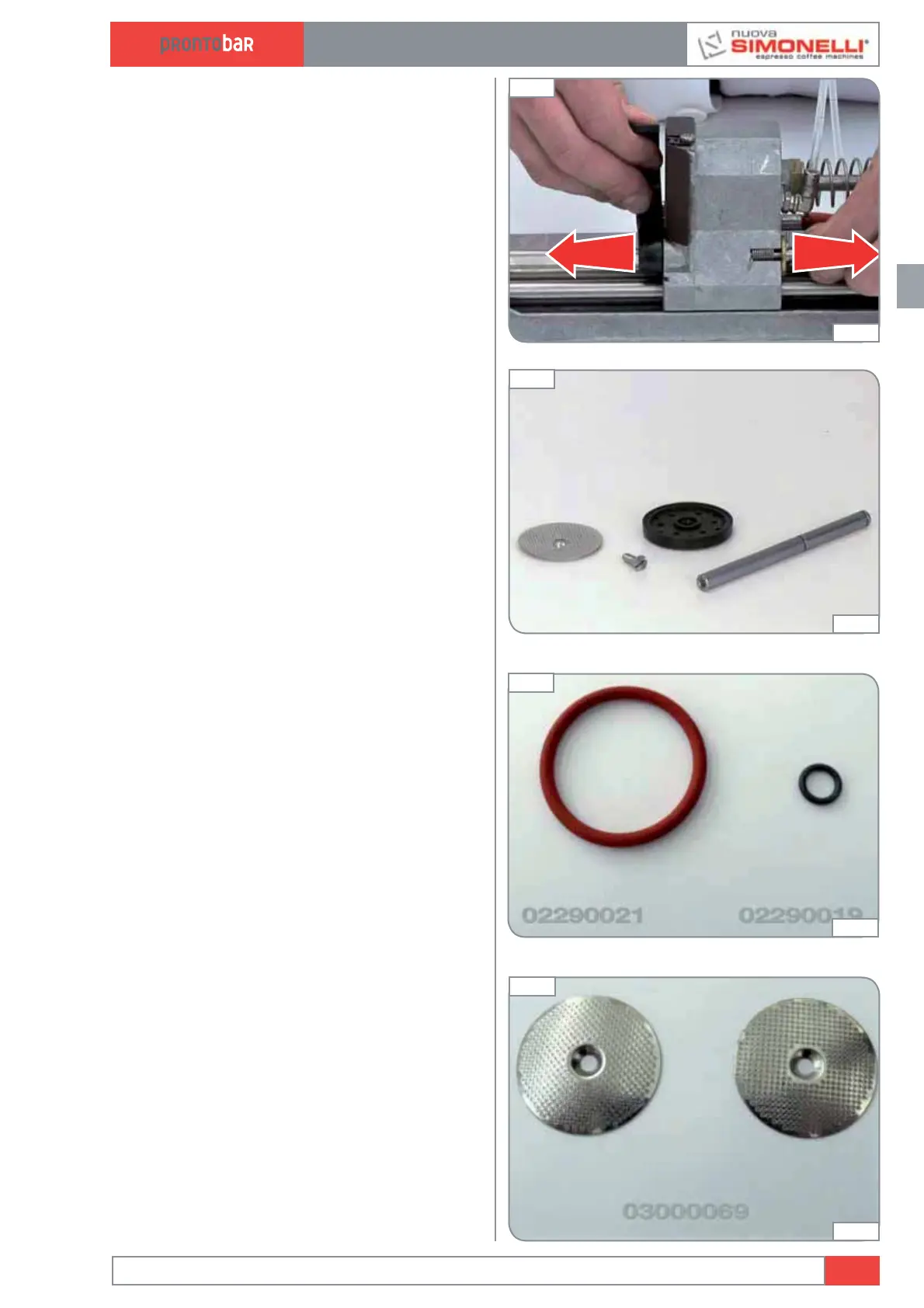

Fig. 116
04:10
Fig. 115
04:00
Fig. 117
04:24
Fig. 118
04:27
