Nuova Simonelli PRONTOBAR - And Nozzle

10.1 CAPPUCCINO MAKER AND
NOZZLE

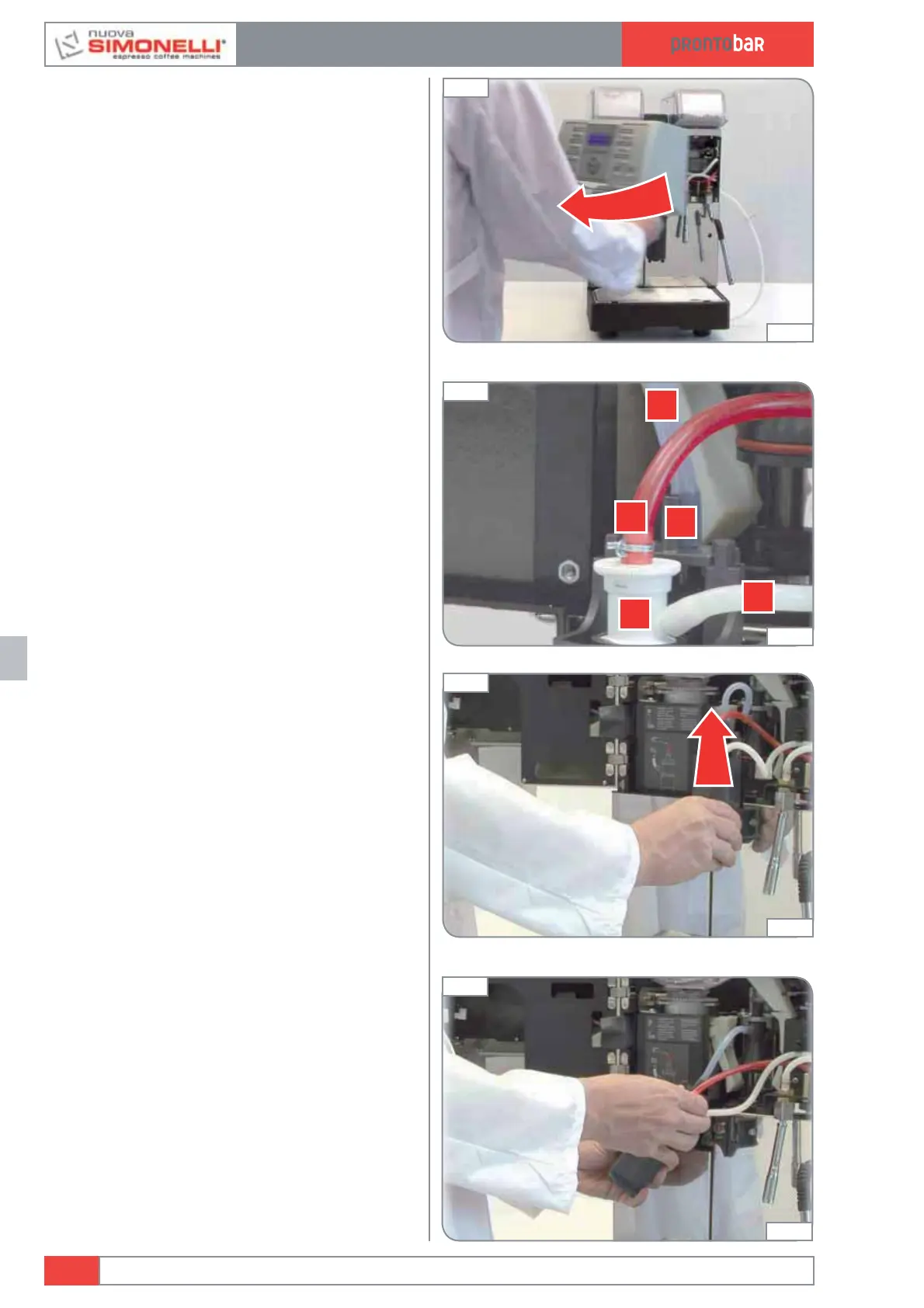

1 Turn off the machine and open the door.
2 Inside the pouring nozzle are:
A Cappuccino maker,
B Steam inlet pipe on top,
C Milk inlet pipe on the right (white silicone),
D the blue inner pipe is for the coffee,
E (OPTIONAL) The blue exterior one is to
add optional hot water.
3 To remove the nozzle, move the nozzle up
and free it from the guides.
4 Release the cappuccino maker.
5 Undo the coffee pipe clip and push out.
Edition 02 to 02/2014
10.2
SERVICE MANUAL
1
Fig. 234
00:08
3
Fig. 236
00:27
A
B
C
E
D
Fig. 235
00:14
Fig. 237
00:31
