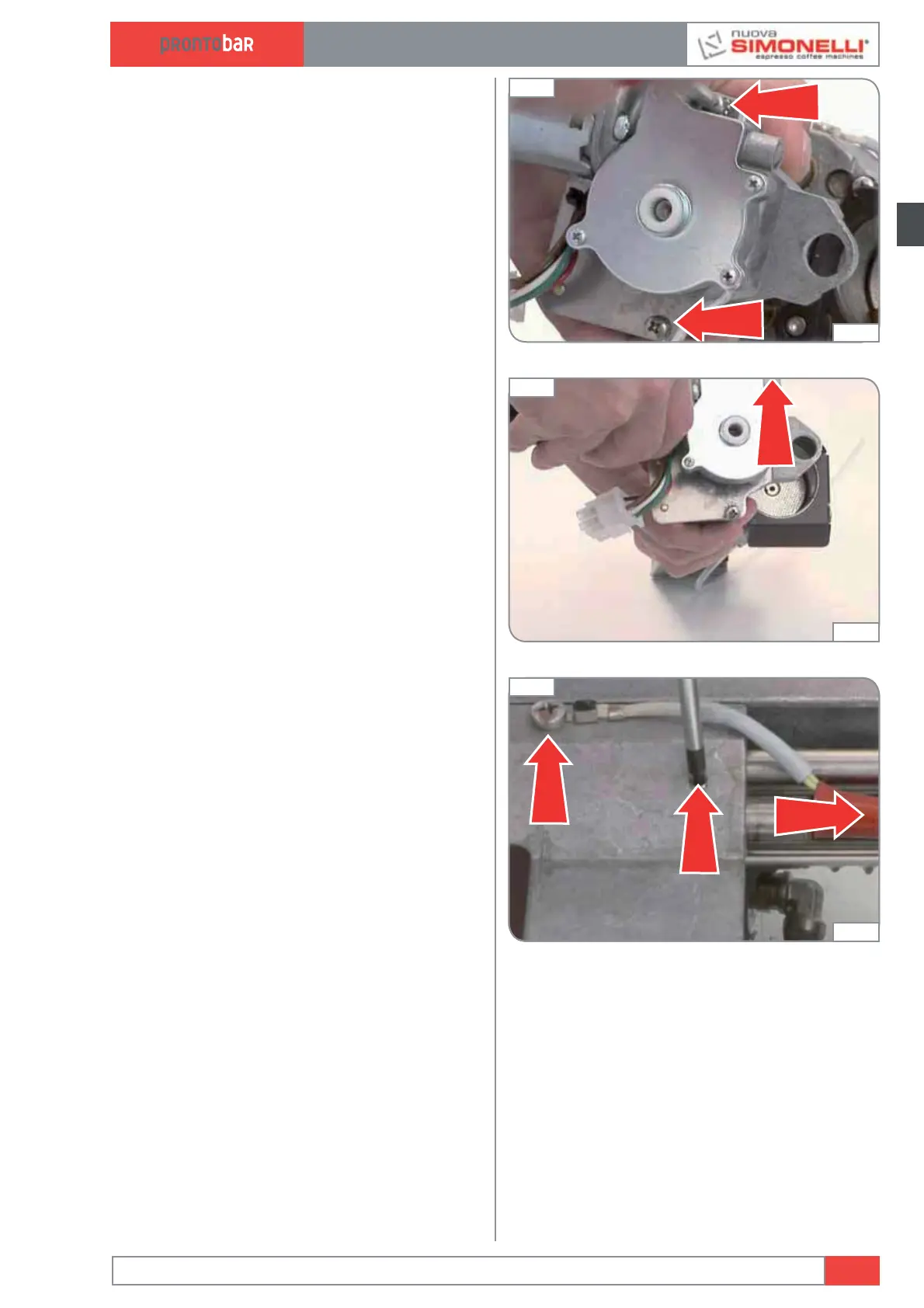

3.2 GROUP MOTOR REMOVAL
The service engineer needs to:
1 Remove the 2 screws at the top of the group
using a philips screw driver.
2 Slide out the motor.
3 Remove the motor plug.
This operation can be carried out with the group
fitted to the machine and following the same
procedure.
3.3 HEATING ELEMENT AND
PROBE REMOVAL
To remove the heating element:
1 Loosen the 2 mm set screw.
2 Undo the philips screw that fixes the probes.
3 Slide out the heating element.
