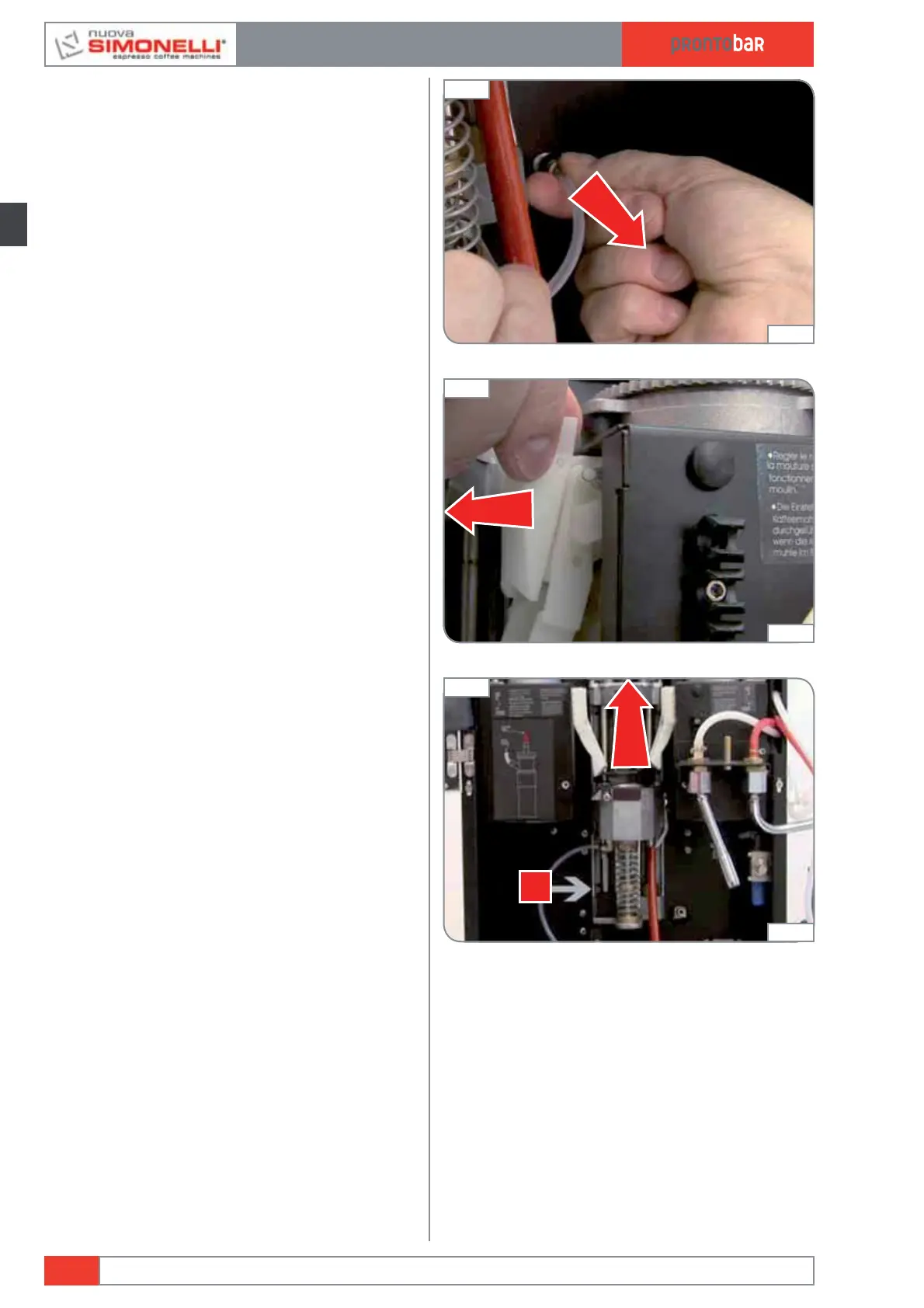

12 Unhook the water supply pipe by loosening
the fixing ring.
Press the metal ring using a flat head screw-
driver or a finger and pull the pipe.
13 Remove the covers of the grinder chutes.
14 Remove the 3mm allen screw holding the
group to the structure.
15 Remove from above by opening the grinder
chute.
Edition 02 to 02/2014
3.4
SERVICE MANUAL
12
Fig. 56
00:44
13
Fig. 57
00:47
15
14
Fig. 58
00:56
