Nuova Simonelli PRONTOBAR - Accessing the Cap Pump and Waterstop Valve

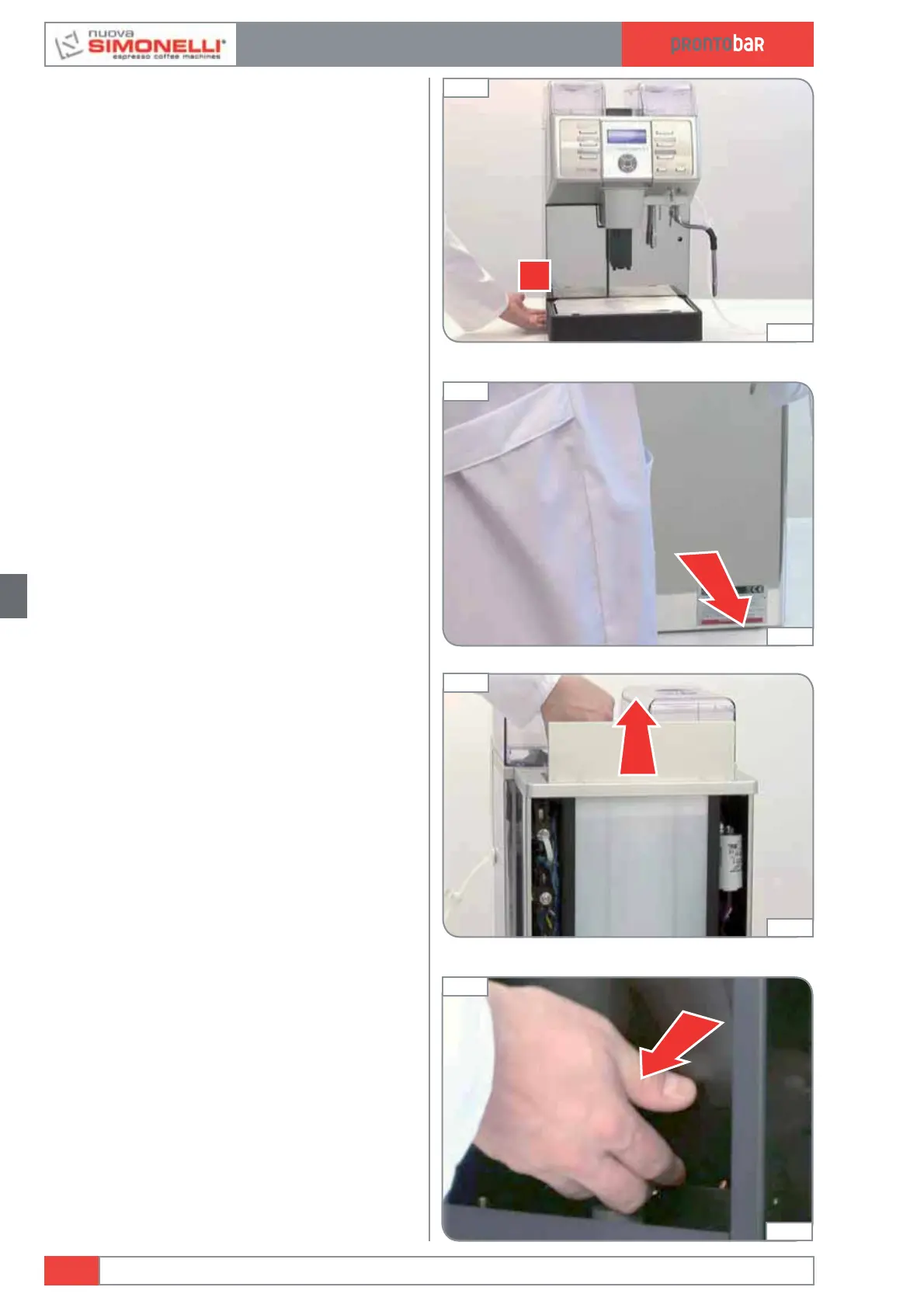

9.1 HOW TO ACCESS
To access the service engineer must:
1 Turn off the machine.
2 Remove the back panel by undoing the two
screws with a Phillips screwdriver.
3 In the tank version, remove the tank.
4 Remove the protective panel of the boiler
by undoing the two screws with a phillips
screwdriver.
Edition 02 to 02/2014
9.2
SERVICE MANUAL
1
Fig. 207
00:06
3
Fig. 209
00:14
2
Fig. 208
00:08
4
Fig. 210
00:16
