Nuova Simonelli PRONTOBAR - Replacing the Flowmeter

6 Please note that the two versions of the
machine presents some differences:
In the tank version are:
On the bottom panel both the versions are
equipped with a metal high pressure flow-
meter (C). The direct connection version also
has a water stop valve used to control the
input water (D).
9.2 HOW TO REPLACE THE
FLOWMETER
1 Turn off the machine and unplug it, open the
rear panel.
2 Disconnect the fastons.
3 From below, undo the screws supporting the
flowmeter.
Edition 02 to 02/2014
9.4
SERVICE MANUAL

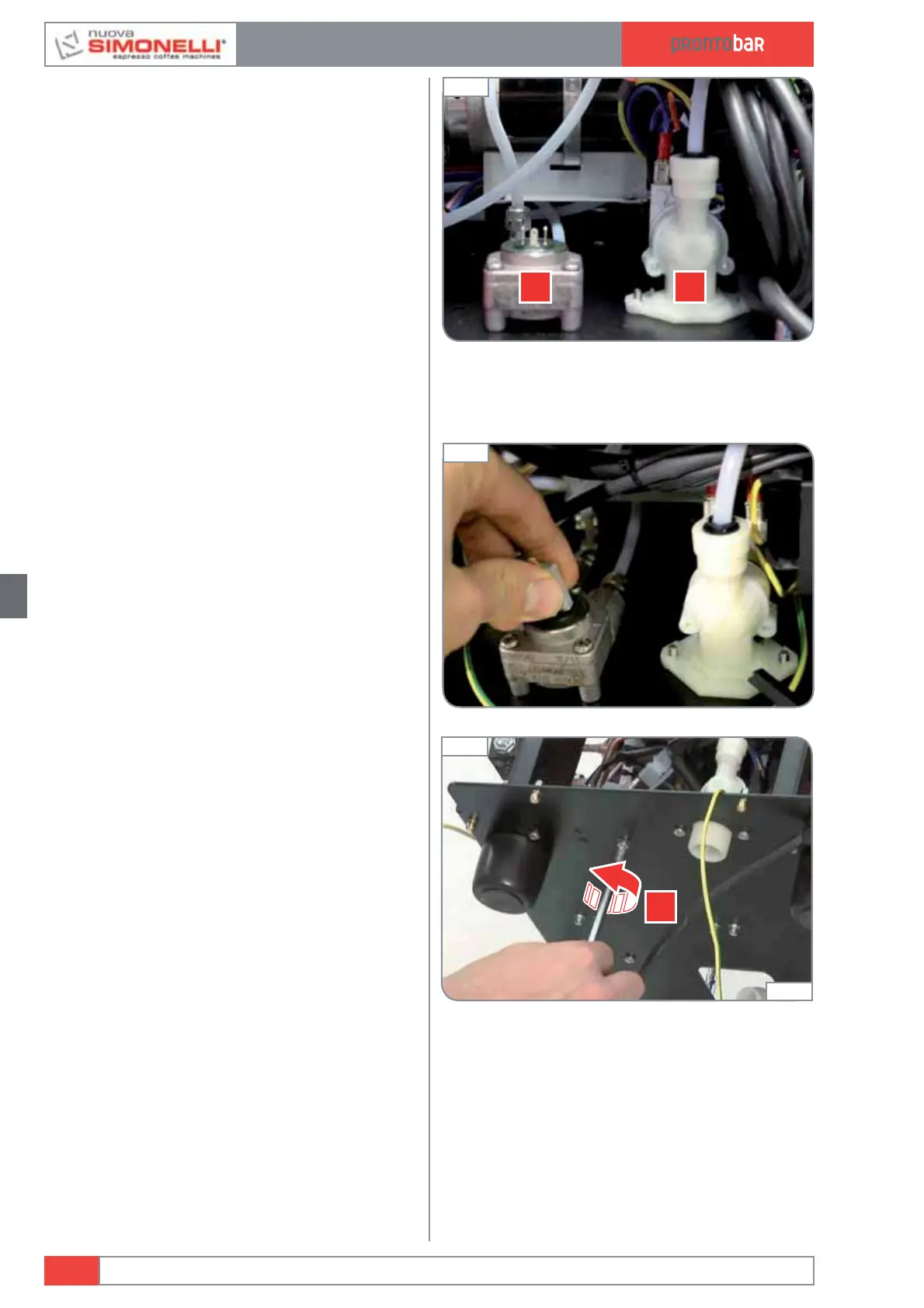

C D
Fig. 214
Fig. 215
3
Fig. 216
