Nuova Simonelli PRONTOBAR - Boiler Tank and Fuse Components

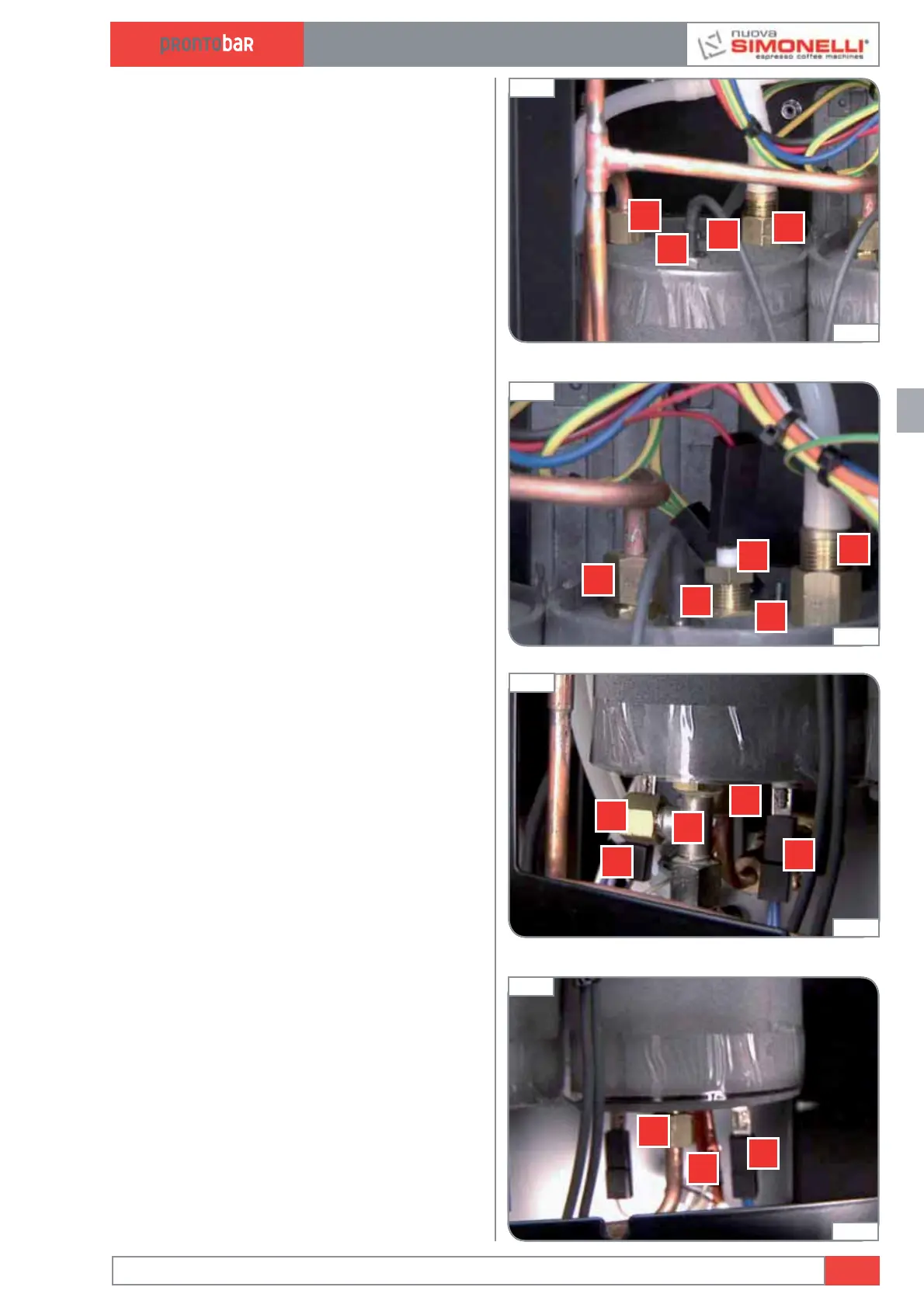

6.1 BOILER TANK AND FUSE
COMPONENTS
1 The coffee boiler tank has:
(A): Temperature probe
(B): 16Bar expansion valve
(C): Hot water solenoid valve connection
fitting (C)
(D): Safety thermostat (98 ° C - CSA version
for the North American market only).
2 The steam boiler has:
(E) Thermostat (150 ° C - CSA for the
North American market version only)
(F) Level sensor
(G) Temperature sensor
(H) 6Bar expansion valve
(I) Solenoid valve connection fitting.
3 The bottom part of the coffee boiler con-
tains:
(L) 1000W heating element
(M) Thermo-Fuse (167 ° C)
(N) Drain plug
(O) Water inlet connection
(P) Wireless solenoid coffee connection.
4 The steam boiler contains:
(Q) The 1000W heating element
(R) Thermo-Fuse (184 ° C)
(S) Water inlet connection.
Edition 02 to 02/2014
6.3
SERVICE MANUAL
C
B
A
D
Fig. 137
00:41
L
M
N
O
P
Fig. 139
01:10
E
F
G
H
I
Fig. 138
01:00
Q
R
S
Fig. 140
01:25
