4.1.1 TOP PISTON

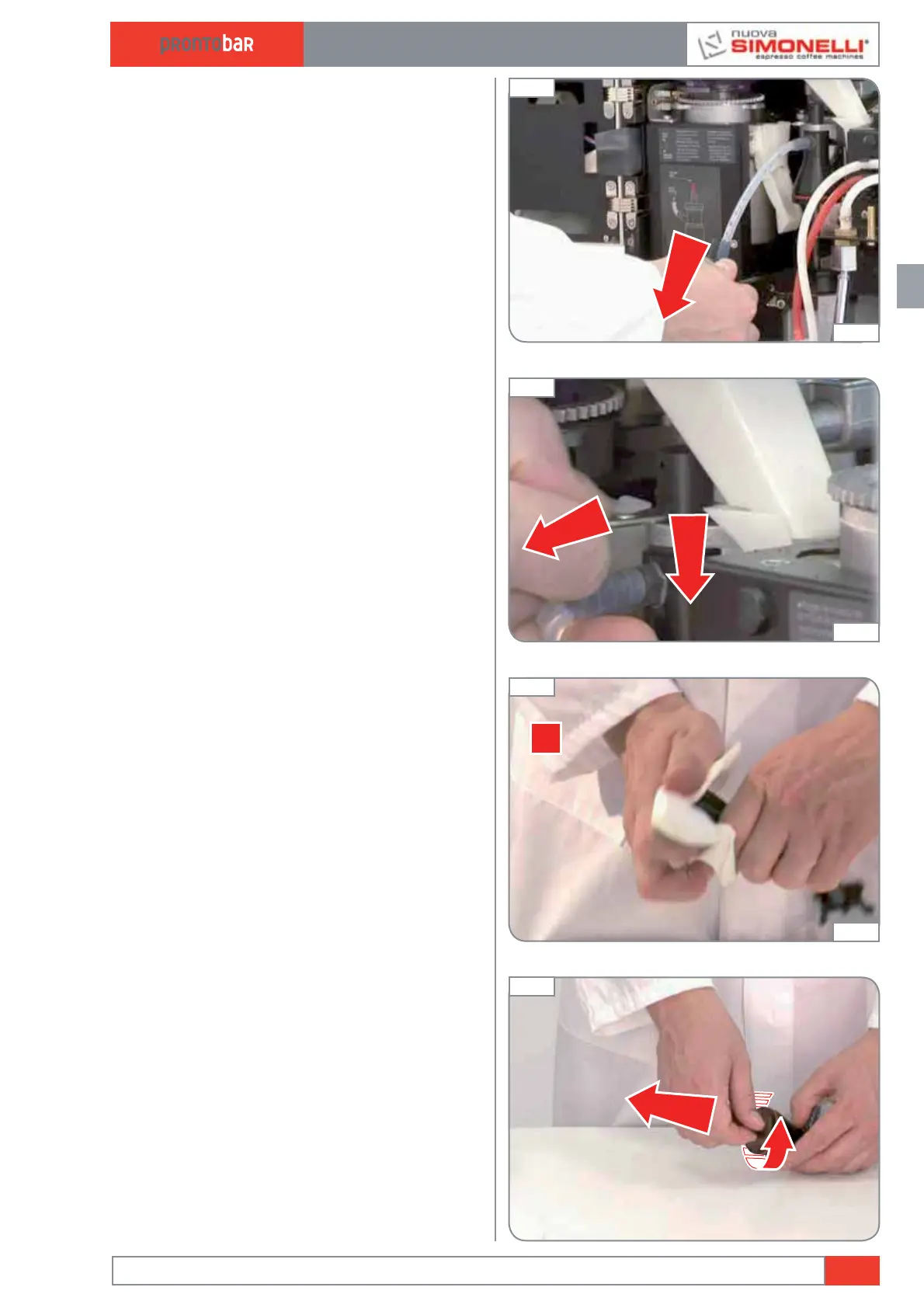

1 Remove the nozzle from the pipes.
2 Remove the upper piston cup.
3 Slide down the piston.
4 With the aid of a flat screw driver remove the
screw security the piston shower.
Clean the shower well with a damp cloth or soak
it a while in hot water and pulicaff; if the shower
is too dirty replace it with a new one.
5 Using a flat head screwdriver, remove the
seal and rinse off the seating and also the
piston surface or soak them in hot water and
pulicaff.
6 Use a screwdriver to insert the new seal and
make sure that it fits perfectly in the seating.
Screw the shower back on the piston.
