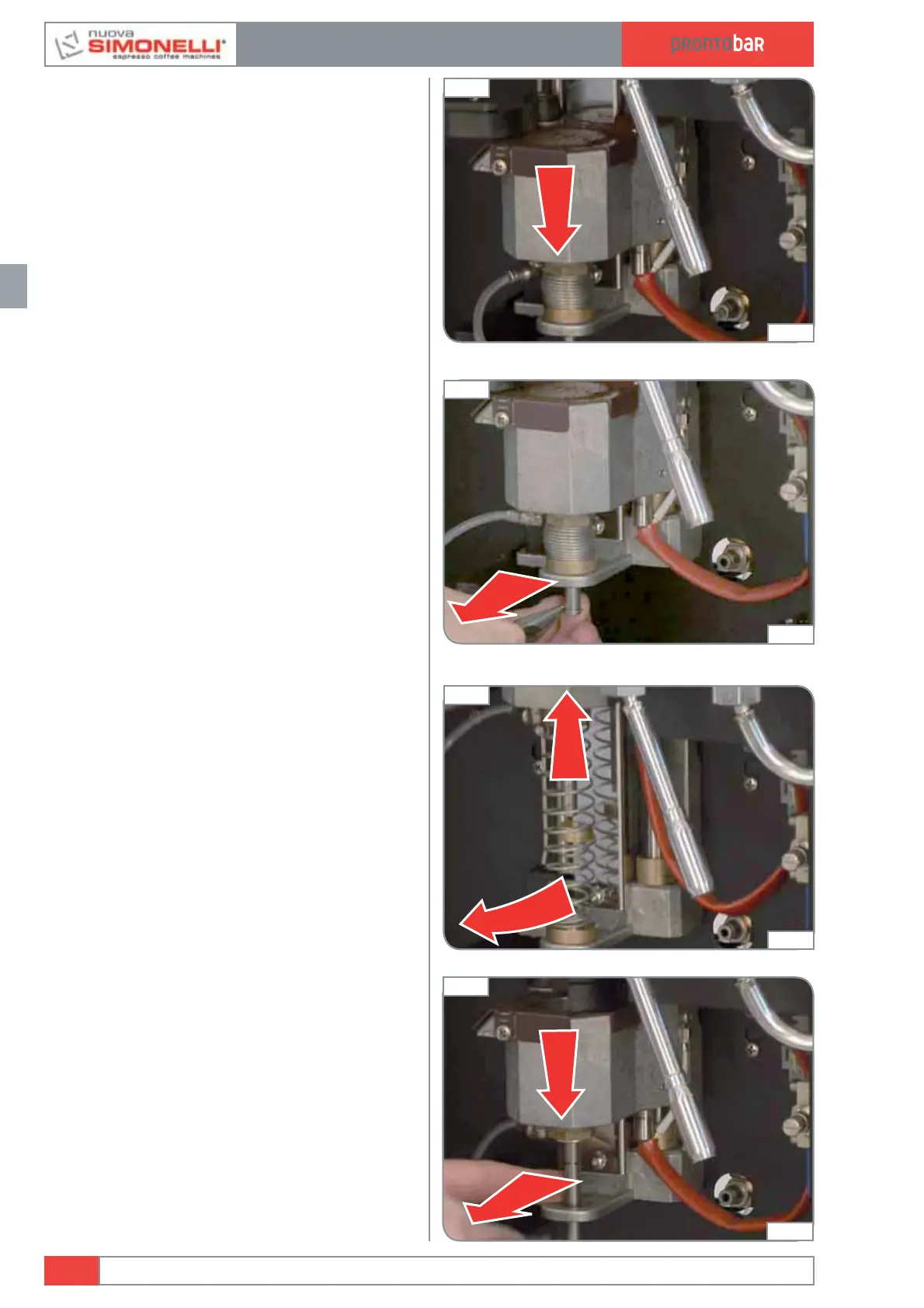

4.1.2 LOWER PISTON
1 Press the down arrow and move the cham-
ber to the bottom position.
2 Remove the teflon pipe from the fitting: while
holding the ring, pull on the delivery pipe.
6 Press the down arrow and let go before the
blade begins to be expelled.
7 Remove the central seeger from the lower
piston shaft.
3 With pliers, remove the bottom seeger from
the lower piston shaft.
4 Press the up arrow and move the group to
the top position.
5 Slide out the springs.
