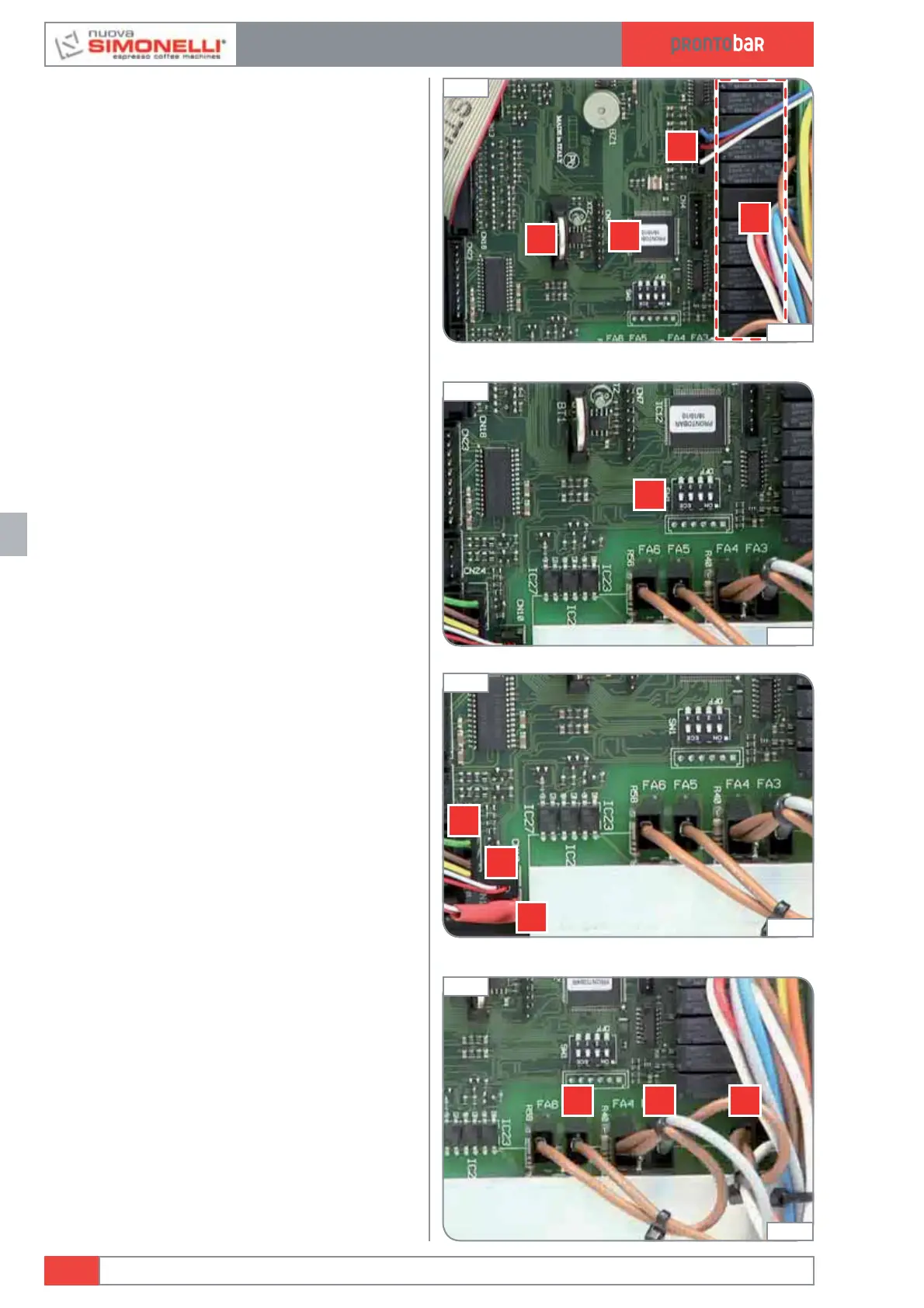

4 At the bottom of the unit are:
(A) Clock battery
(B) On the eprom is indicated the release
of the software loaded
(C) Door and bottom drawer microswitch
connector
(D) Relay and solenoid valves, grinders
and pump connectors.
5 Dip switch to configure the machine (see
cha
p. 13.8 for deeper info).
6 On bottom are:
(A) Flow meter connector
(B) Coffee boiler tank sensor connector
(C) Steam boiler tank sensor connector
(D) Group heating element
(E) Coffee boiler heating element
(F) Steam boiler heating element
Edition 02 to 02/2014
8.8
SERVICE MANUAL
A
B
C
D
Fig. 201
01:42
A
B
C
Fig. 203
02:01
D E F
Fig. 204
02:08
5
Fig. 202
02:00
