Abnormal Image Flowchart No.
The entire image is faint or the color is irregular. (Figure 5.2- A ) 1
The white portion is dirty. (Figure 5.2- B ) 2
A white page is output. (Figure 5.2- C ) 3
Streaks or solid lines appear in the vertical direction. 4
(Black line, color line / black streak, color streak) (Figure 5.2- D )
White solid lines / streaks or blurred color lines / streaks appear in the vertical 5
direction. (Figure 5.2- F )
Faulty fusing (image blurs or scatters when touched) 6
Consistent abnormality (Figure 5.2- E ) 7
Color detachment 8
Color irregularity 9
Different color compared with the original. 0

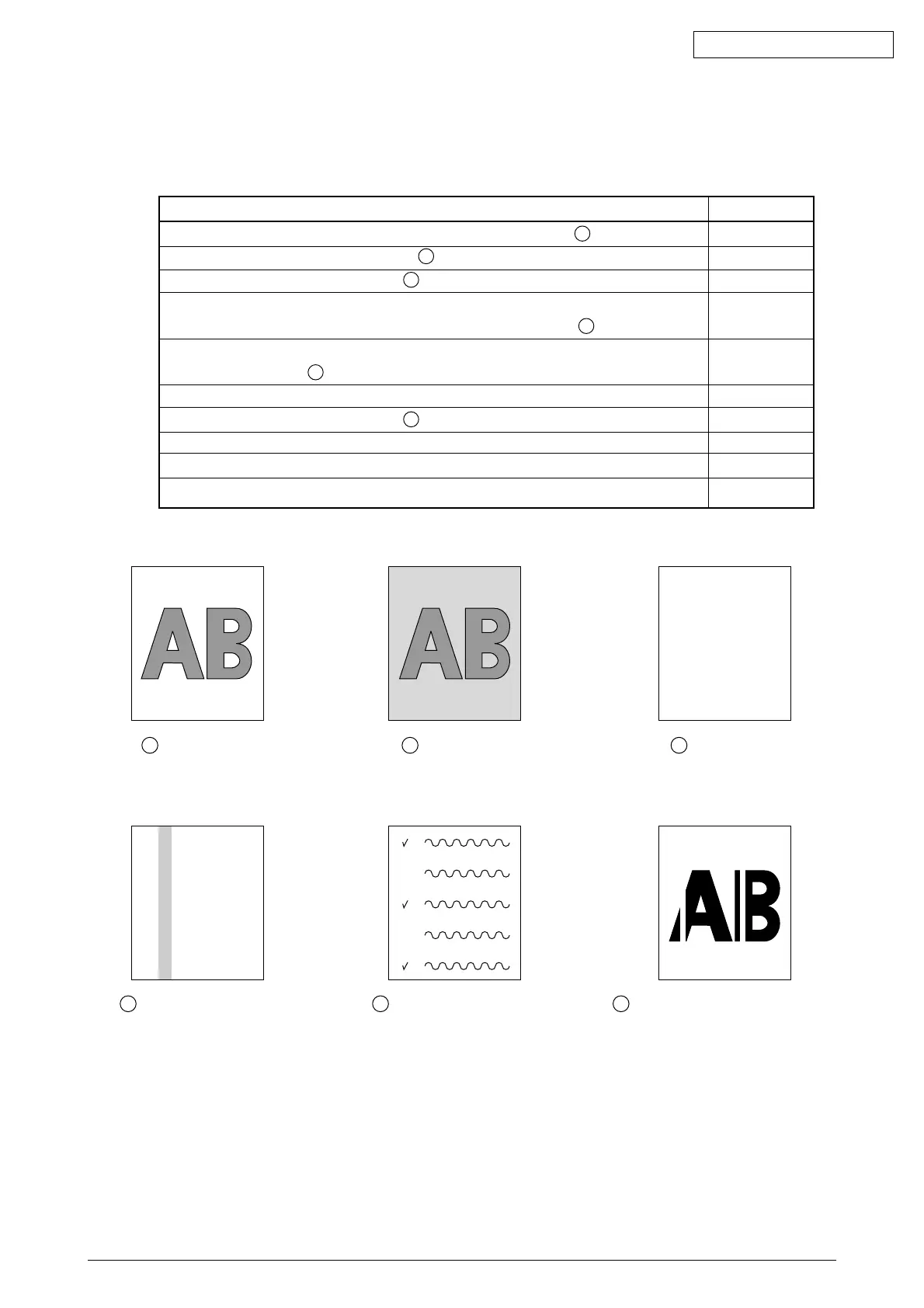

5.5.3 Troubleshooting for abnormal images
Apply remedies according to the following table when printed images are abnormal as shown
below.
Figure 5.2
Faint or blurred
A
Vertical lines/streaks
D
Dirty white portion
B
Consistent abnormality
E
All white
C
Vertical white lines/streaks
F
To Next Page
