41956001TH Rev.6 25 /
Oki Data CONFIDENTIAL
8
4
1
7
6
3
1
5
2
2
2.3.3 Top Cover Unit
(1) Remove the Top Cover. (See Sec. 2.3.1.)
(2) Remove the Rear Cover. (See Sec. 2.3.12.)
(3) Remove the Front Cover (See Sec. 2.3.11.)
(4) Remove the Electrical Chassis. (See Sec. 2. 3. 22.)
(5) Unscrew the screws 1 and 2, and remove the Limiters (F) 3 and (R) 4.
(6) Remove the Inner Shaft 5 and then the Top Cover Unit 8. At this time, the Inner
Springs 6.
and 7 also come off.

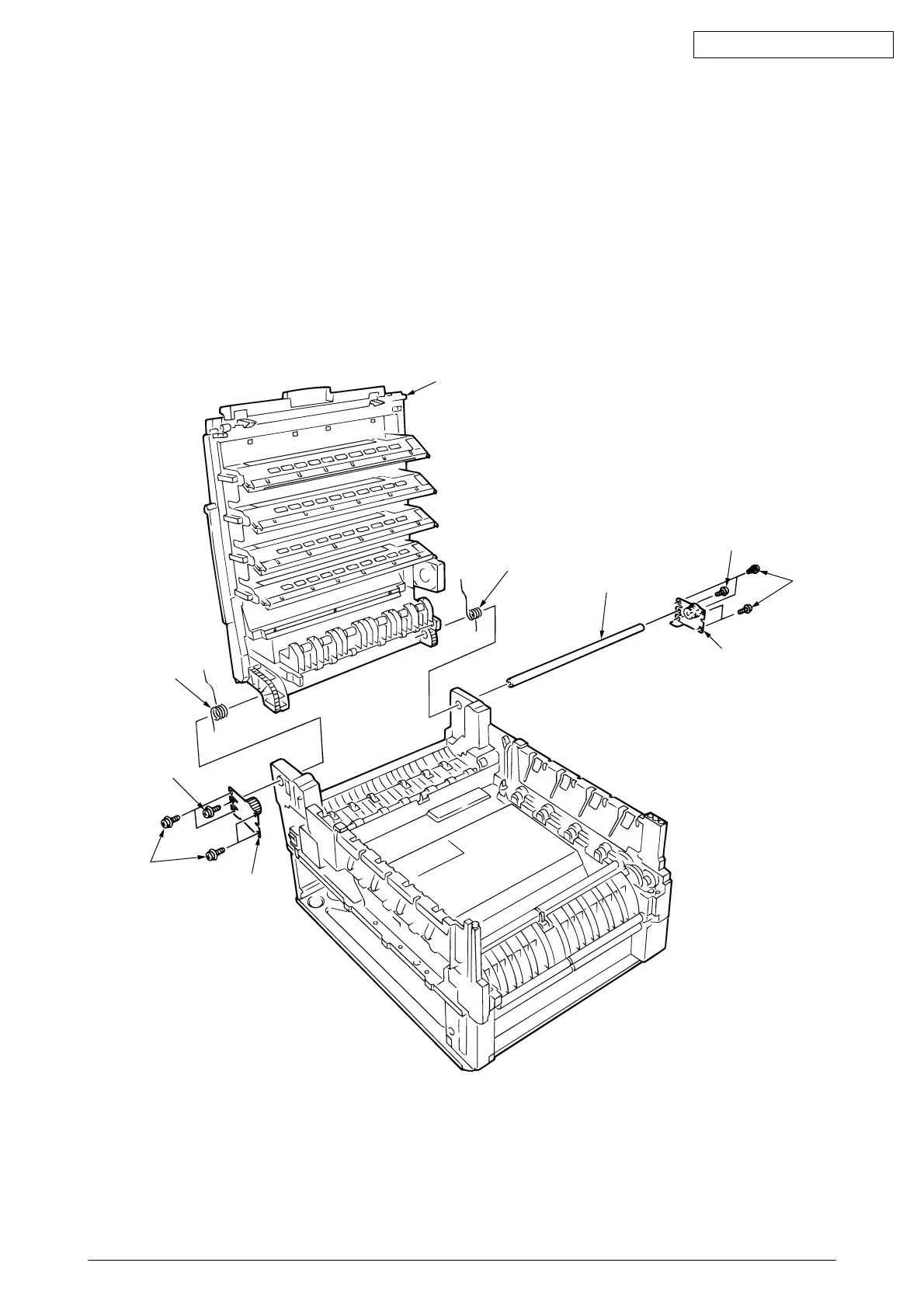

Figure 2-3-3 Top Cover Unit
To Next Page
