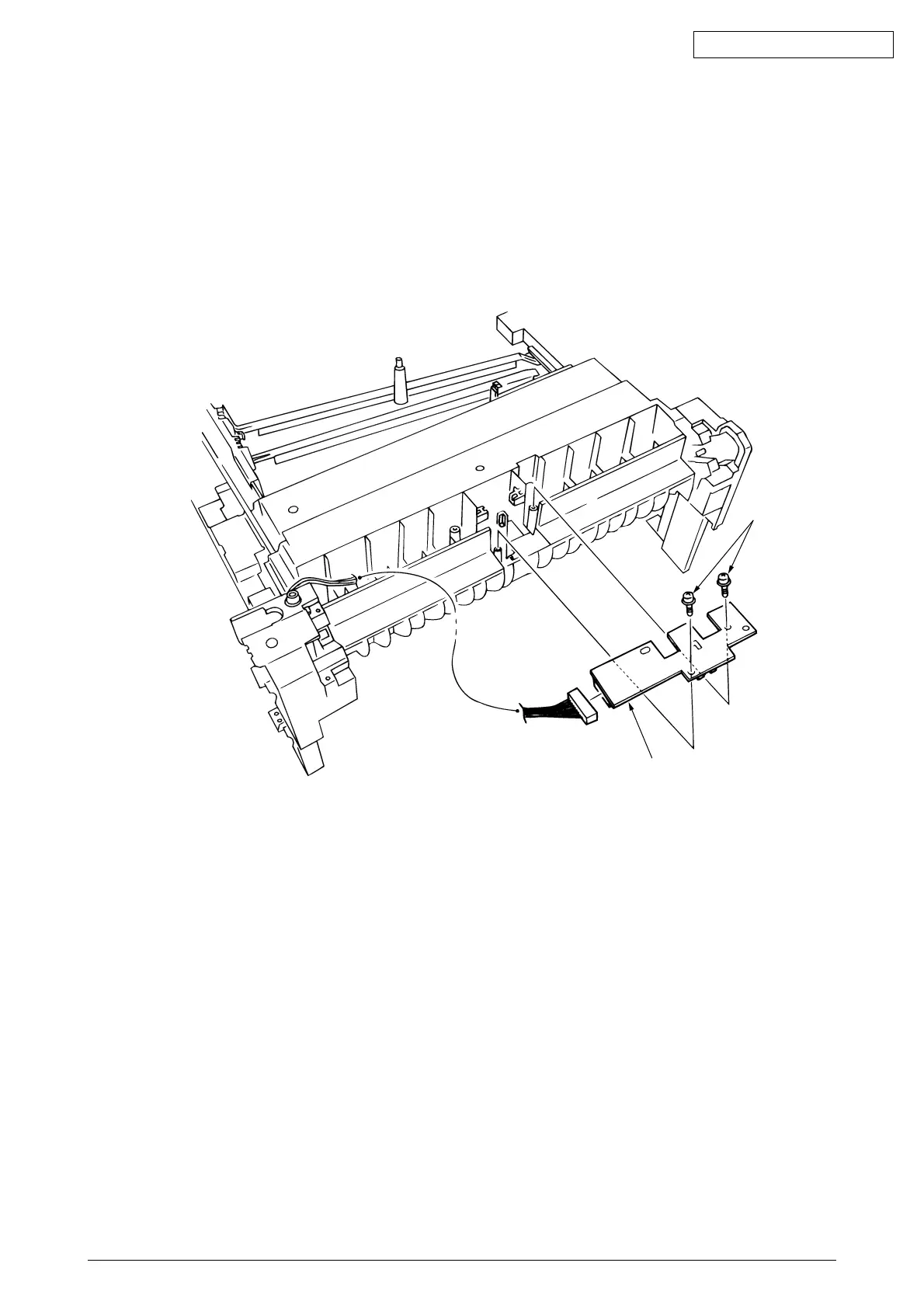

Figure 2-3-26 Entrance Sensor PWB
2.3.26 Entrance Sensor PWB (R71)
(1) Remove the Registration Roller Assy B. (See Sec. 2.3.17.)
(2) Unscrew 2 screws 1 and remove the Entrance Sensor PWB 2.
