Oki C9500 - Contact Assy; Side Plate Assy

41956001TH Rev.6 57 /
Oki Data CONFIDENTIAL
4
2
1
3

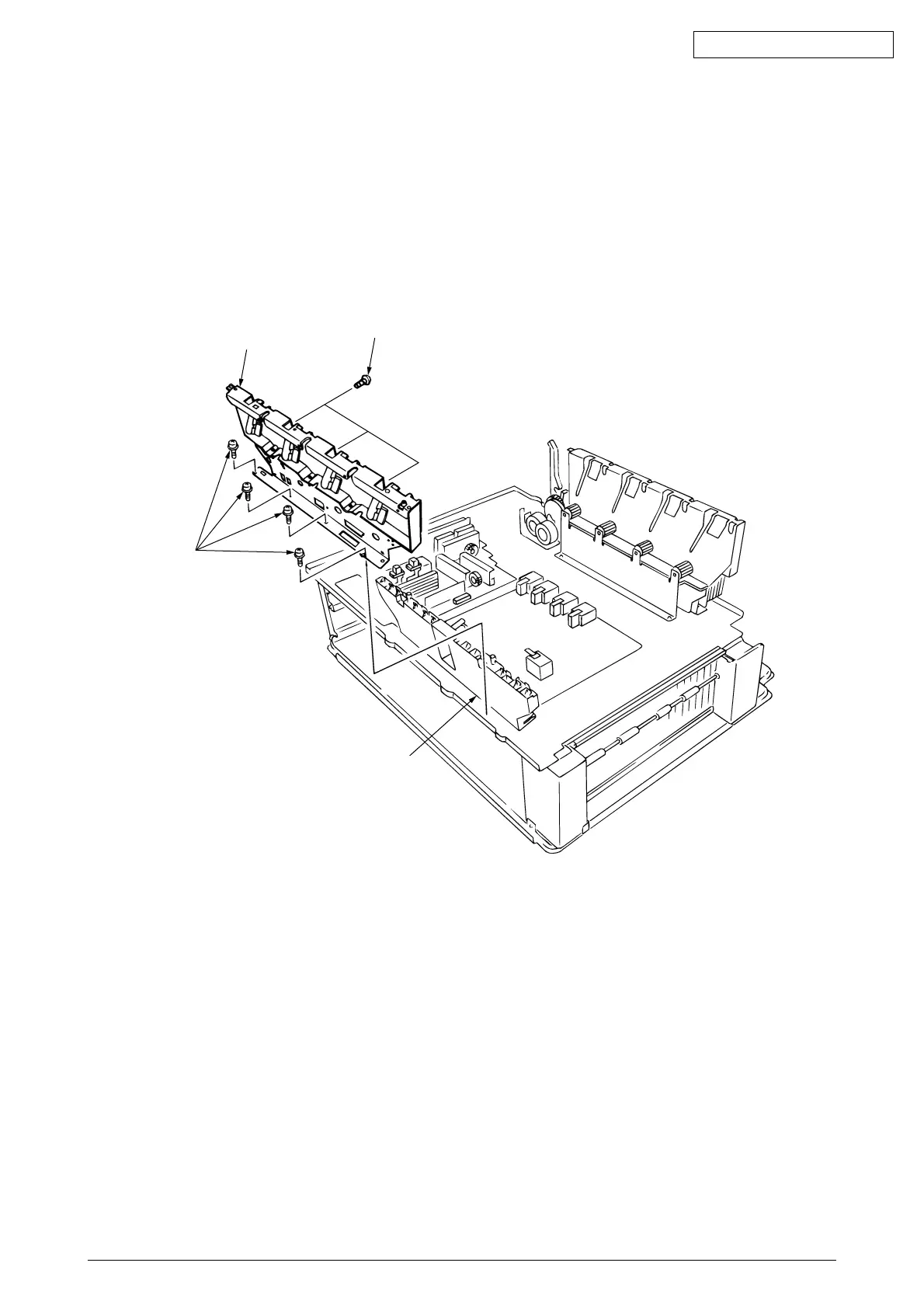

Figure 2-3-34 Contact Assy / Side Plate Assy
2.3.34 Contact Assy / Side Plate Assy
(1) Remove the Printer Unit Chassis. (See Sec. 2.3.24.)
(2) Unscrew 4 screws 1 and remove the Side Plate Assy 2.
(3) Unscrew the screws 3 and remove the Contact Assy 4.
