2.3.17 Registration Roller Assy (B)
(1) Take out the Cassette Assy.
(2) Remove the Front Cover. (See Sec. 2.3.11.)
(3) Remove the Rear Cover. (See Sec. 2.3.12.)
(4) Remove the Electrical Chassis. (See Sec. 2. 3. 22.)
(5) Remove the Registration Clutch. (See Sec. 2.3.18.)
(6) Remove the Printer Unit Chassis. (See Sec. 2.3.24.)
(7) Unscrew 4 screws 1 and pull out the Registration Roller Assy (B) 2 to the arrow direction.

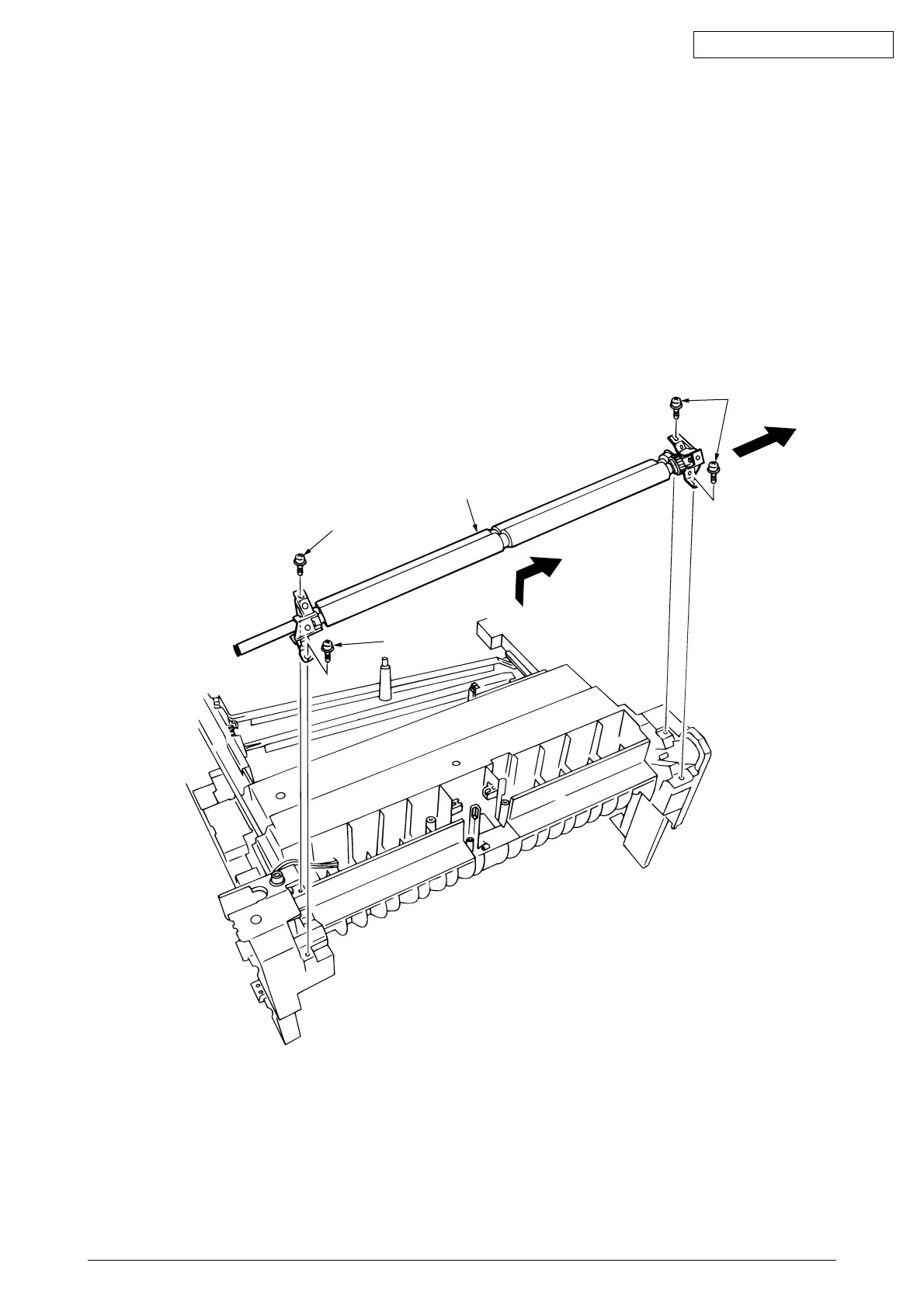

Figure 2-3-17 Registration Roller Assy (B)
