Oki C9500 - Duplex Guide Assy

41956001TH Rev.6 44 /
Oki Data CONFIDENTIAL
1
2
2
Main Chassis (L)

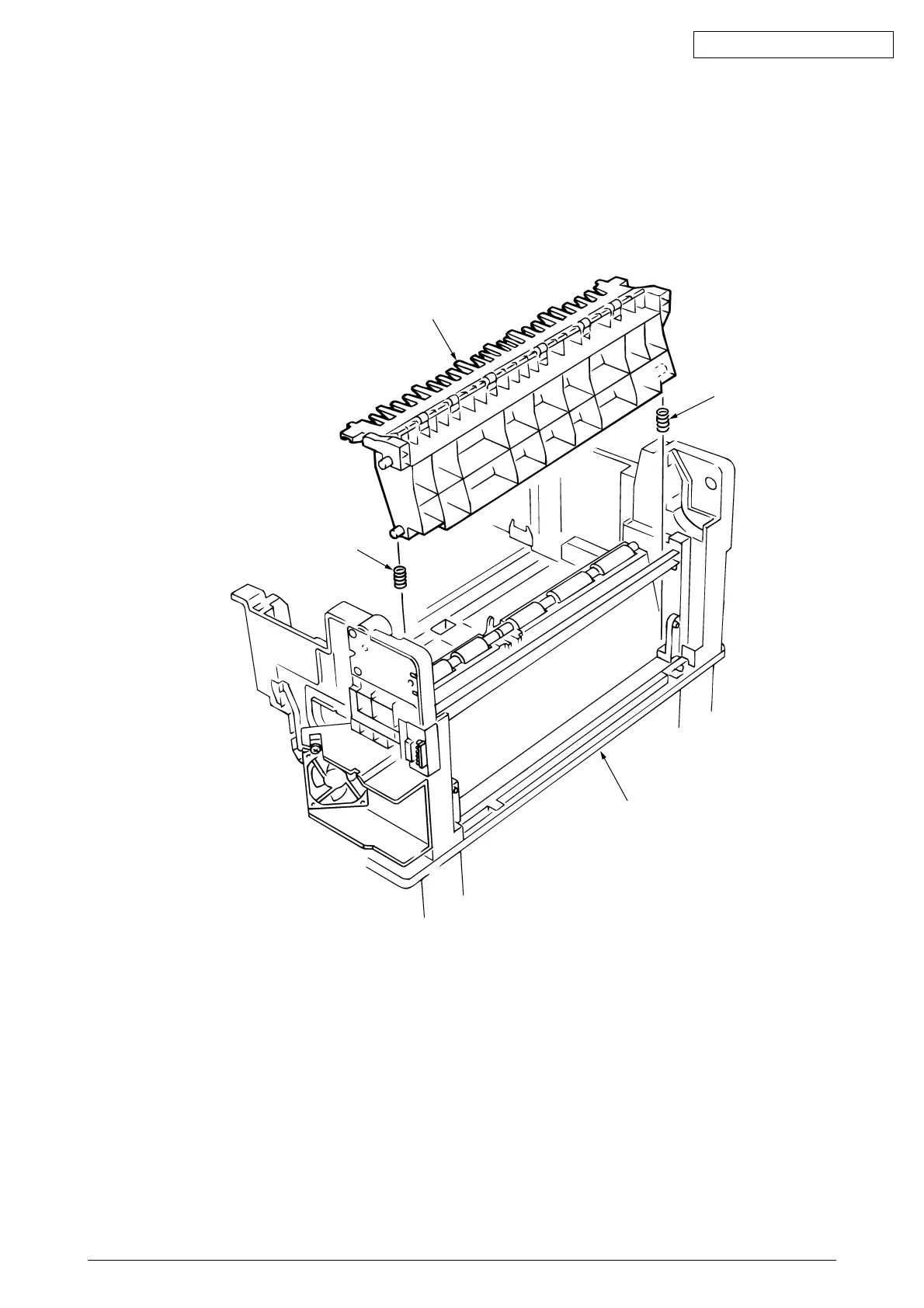

Figure 2-3-21 Duplex Guide Assy
2.3.21 Duplex Guide Assy
(1) Release the latch and remove the Duplex Guide Assy 1.
(2) Remove the springs 2.
