2.3.30 Fuser Latch Handle (L)
(1) Remove the Latch Handle Spring 1.
(2) Unscrew the screw 2 and remove the Fuser Latch Handle (L) 3.

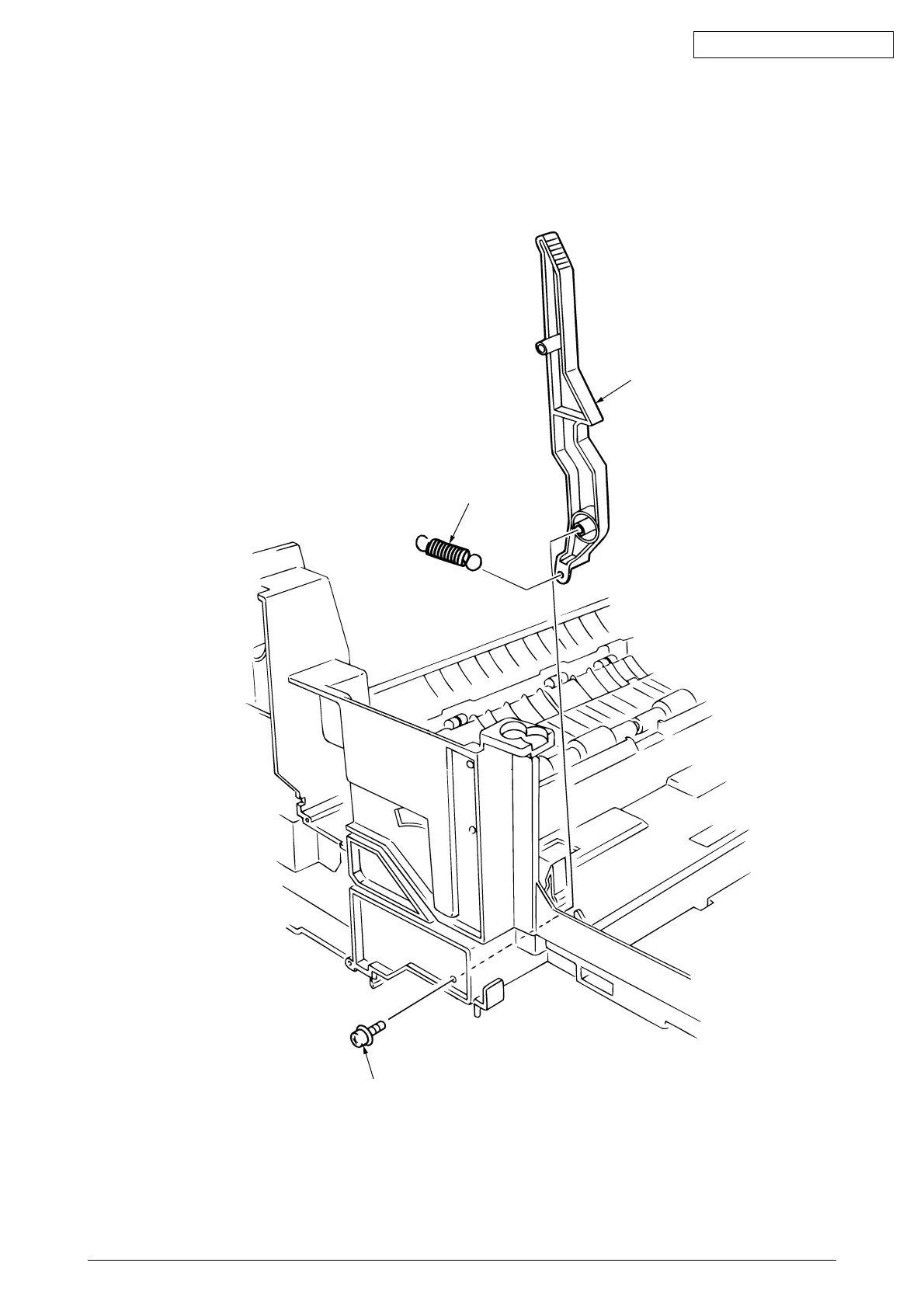

Figure 2-3-30 Fuser Latch Handle (L)
