2.3.7 Cassette Assy / Cover-Blind / Side Cover Assy
(1) Take out the Cassette Assy 1.
(2) Release 2 joints and remove the Cover-Blind 2.
(3) Unscrew 2 screws 3 and remove the stopper 4.
(4) Unscrew 5 screws 5, release the claw at the left support of the Side Cover (R) and
remove the Side Cover (R) 6.

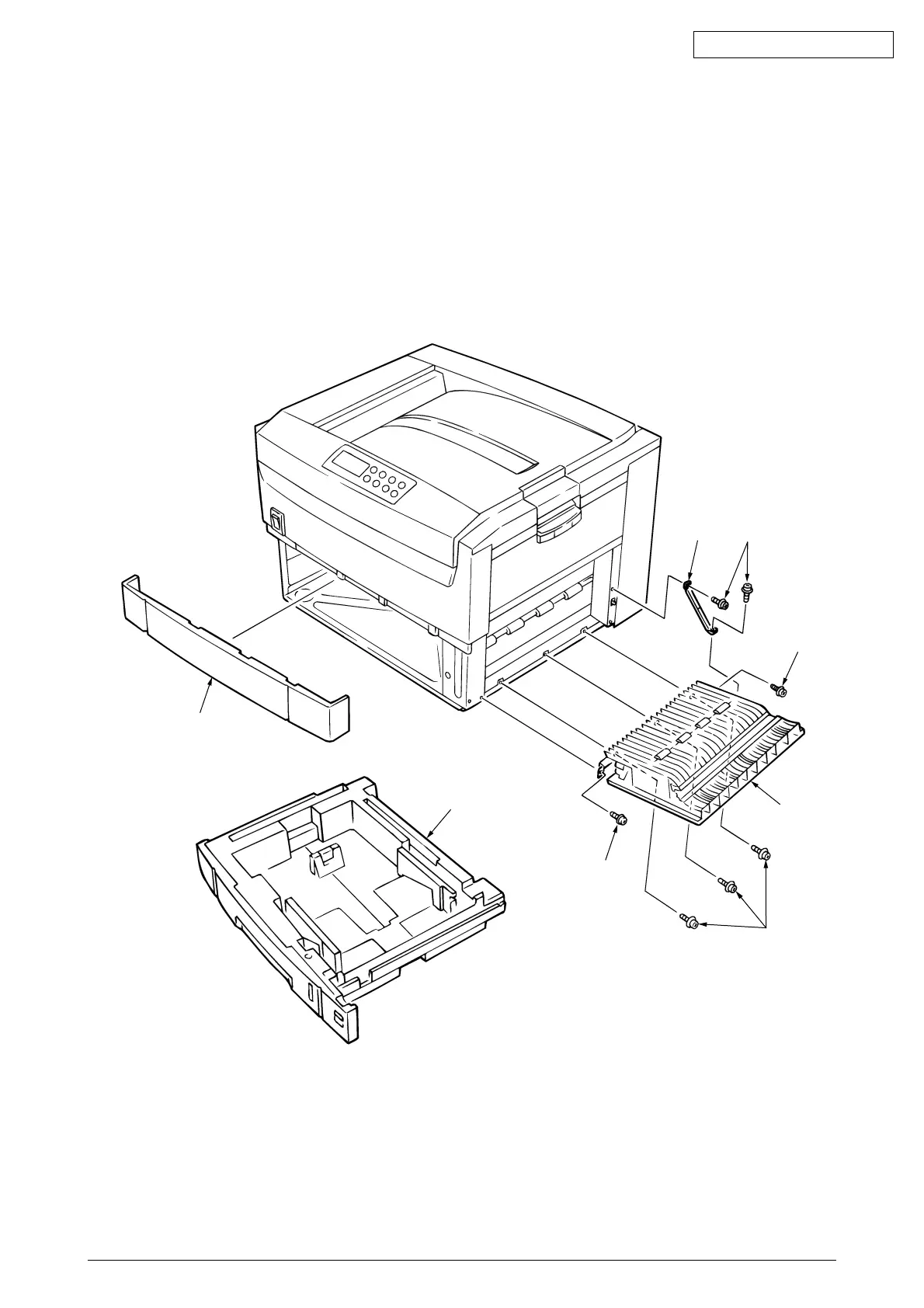

Figure 2-3-7 Cassette Assy / Cover-Blind / Side Cover Assy
