Oki C9500 - Belt Motor Assy

41956001TH Rev.6 54 /
Oki Data CONFIDENTIAL
2
3
1
1
2.3.31 Belt Motor Assy
(1) Remove the Fuser Latch Handle (R). (See Sec. 2.3.32.)
(2) Unscrew 2 screws 1 and unplug 2 connectors 2.
(3) Remove the Belt Motor Assy 3.

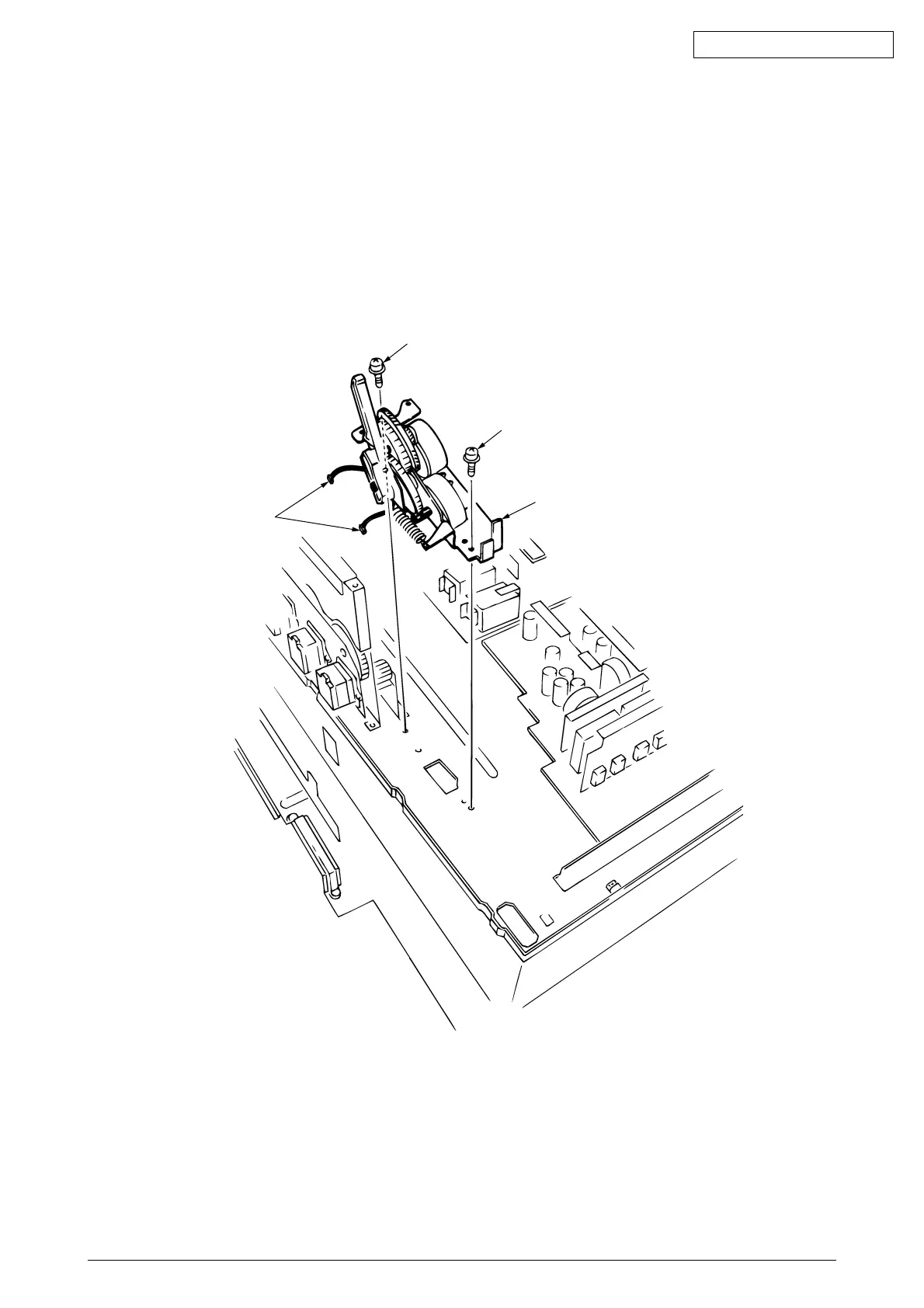

Figure 2-3-31 Belt Motor Assy
