Oki C9500 User Manual

41956001TH Rev.6 35 /
Oki Data CONFIDENTIAL
1
2
3
6
5
6
4
5
Engagement
Engagement
7
3
7
1
2.3.13 Multipurpose Tray Assy / Multipurpose Tray Cover Assy / Link / Multipurpose Tray Top Cover /
Multipurpose Tray Drive Gear / OHP Sensor
(1) Remove the Rear Cover (See Sec. 2.3.12.)
(2) Remove the Front Cover (See Sec. 2.3.11.)
(3) Unscrew 3 screws 1 and remove Multipurpose Tray Top Cover 2.
(4) Remove the Cover Seal Sensor and the sensor connector.
(5) Release the joints between 4 and 5, and remove Multipurpose Tray Cover Assy 5.
(At this time, the Links 6 also comes off.)
(6) Release a hook and remove the Multipurpose Tray Drive Gear 7.

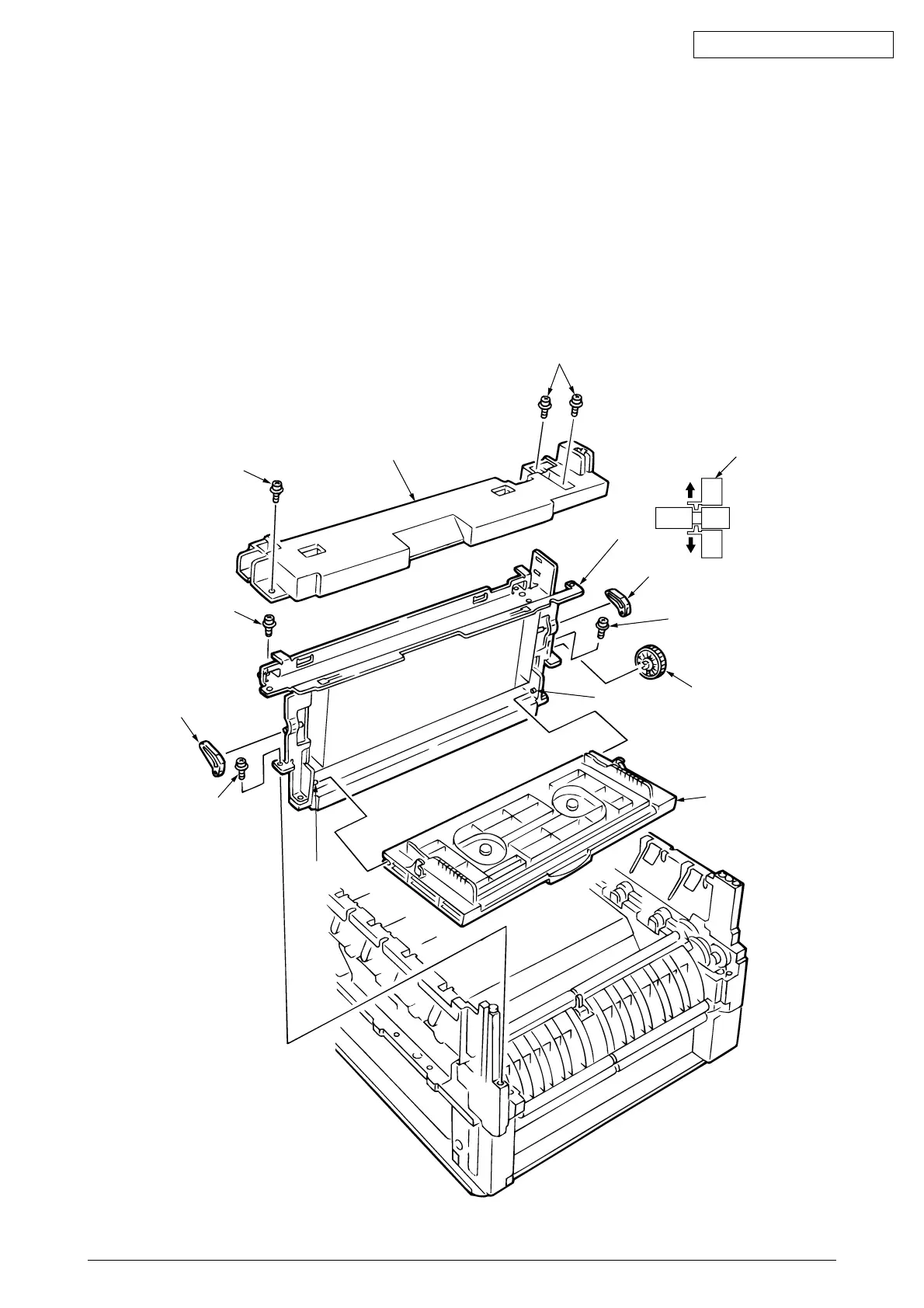

Figure 2-3-13 Multipurpose Tray Assy / Multipurpose Tray Cover Assy / Link / Multipur-
pose Tray Top Cover / Multipurpose Tray Drive Gear / OHP Sensor
