2.3.10 Face Up Tray
(1) Open the Face Up Tray 1 to the arrow direction, release the joints of the Links 2 (2
joints each) and then remove the Face Up Tray 1.

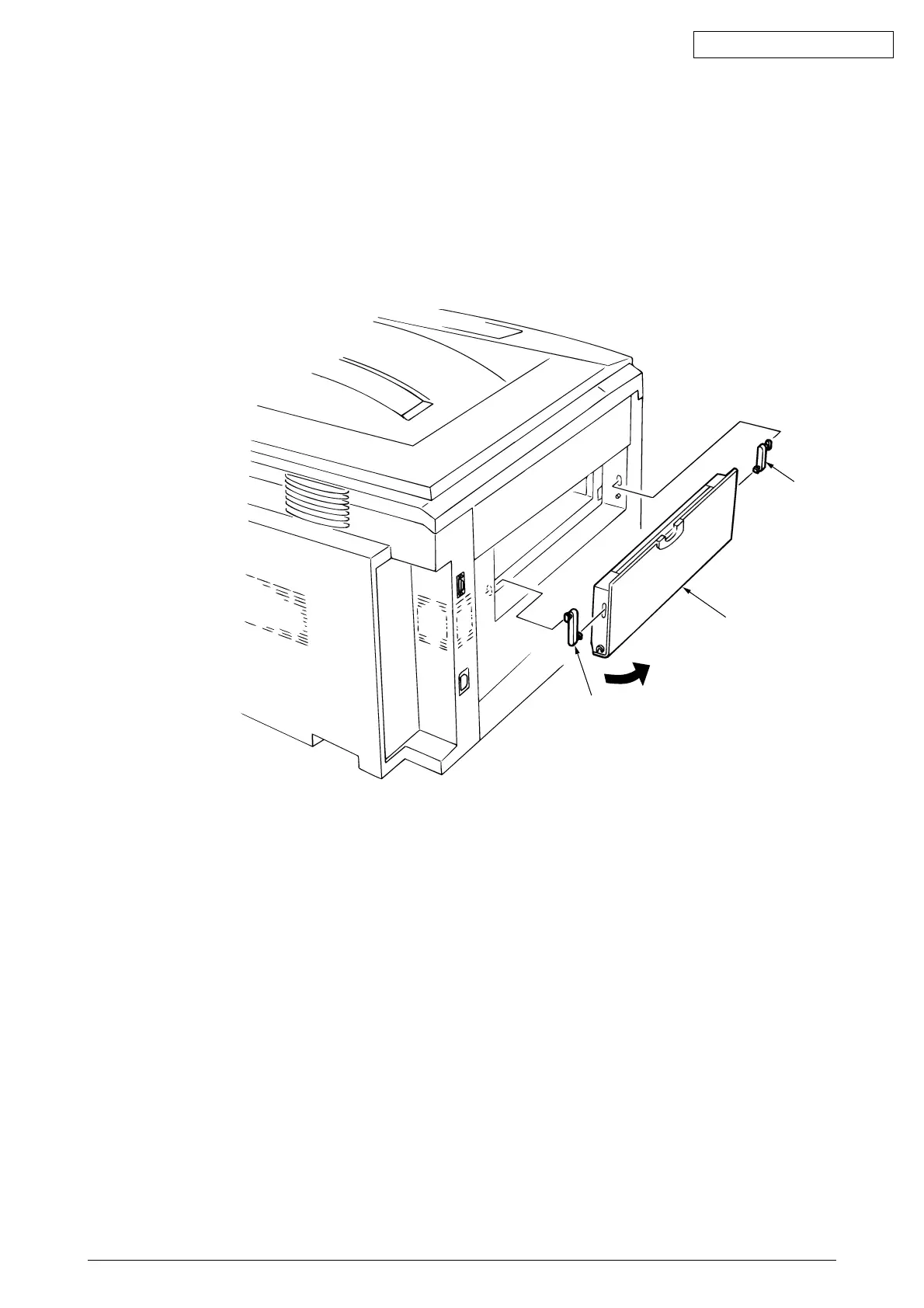

Figure 2-3-10 Face Up Tray
