2.3.27 Entrance MT Sensor Actuator / Entrance Belt Sensor Actuator / Entrance Waste Toner Sensor
Actuator
(1) Remove the Entrance Sensor PWB (R71). (See Sec. 2.3.26.)
(2) Release the latch and remove the Entrance MT Sensor Actuator 1.
(3) Release the latch and remove the Entrance Belt Sensor Actuator 2.
(4) Release the latch and remove the Entrance Waste Toner Sensor Actuator 3.

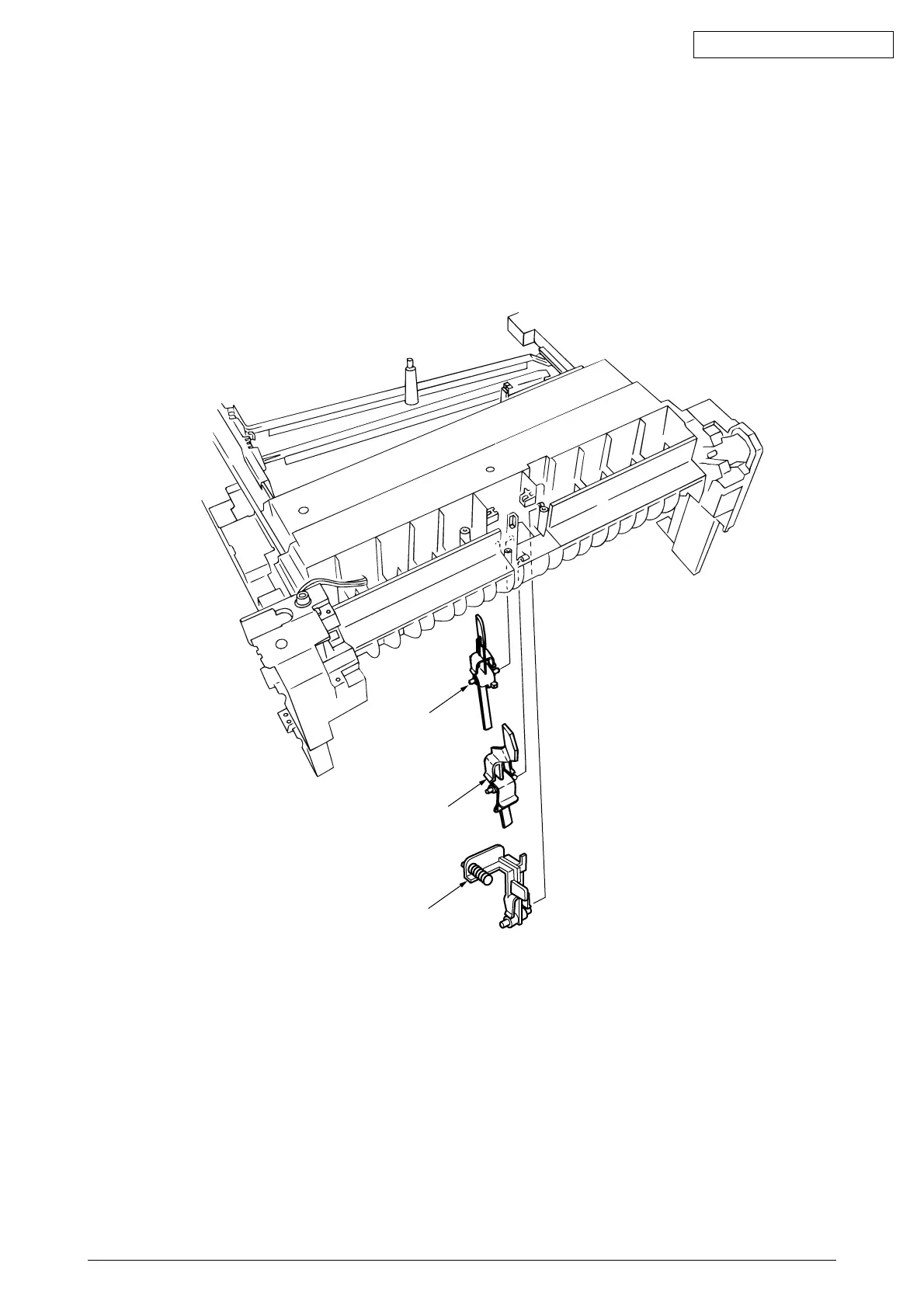

Figure 2-3-27 Entrance MT Sensor Actuator / Entrance Belt Sensor Actuator /
Entrance Waste Toner Sensor Actuator
