Oki C9500 - Top Cover Handle; Top Cover Latch; Top Cover Latch Spring

41956001TH Rev.6 27 /
Oki Data CONFIDENTIAL
3
1
1
2
4
4
2.3.5 Top Cover Handle / Top Cover Latch / Top Cover Latch Spring
(1) Unscrew 2 screws 1 and remove the Top Cover Handle 2 and Top Cover Latch 3.
(At this time, 2 Top Cover Latch Springs 4 also come off.)

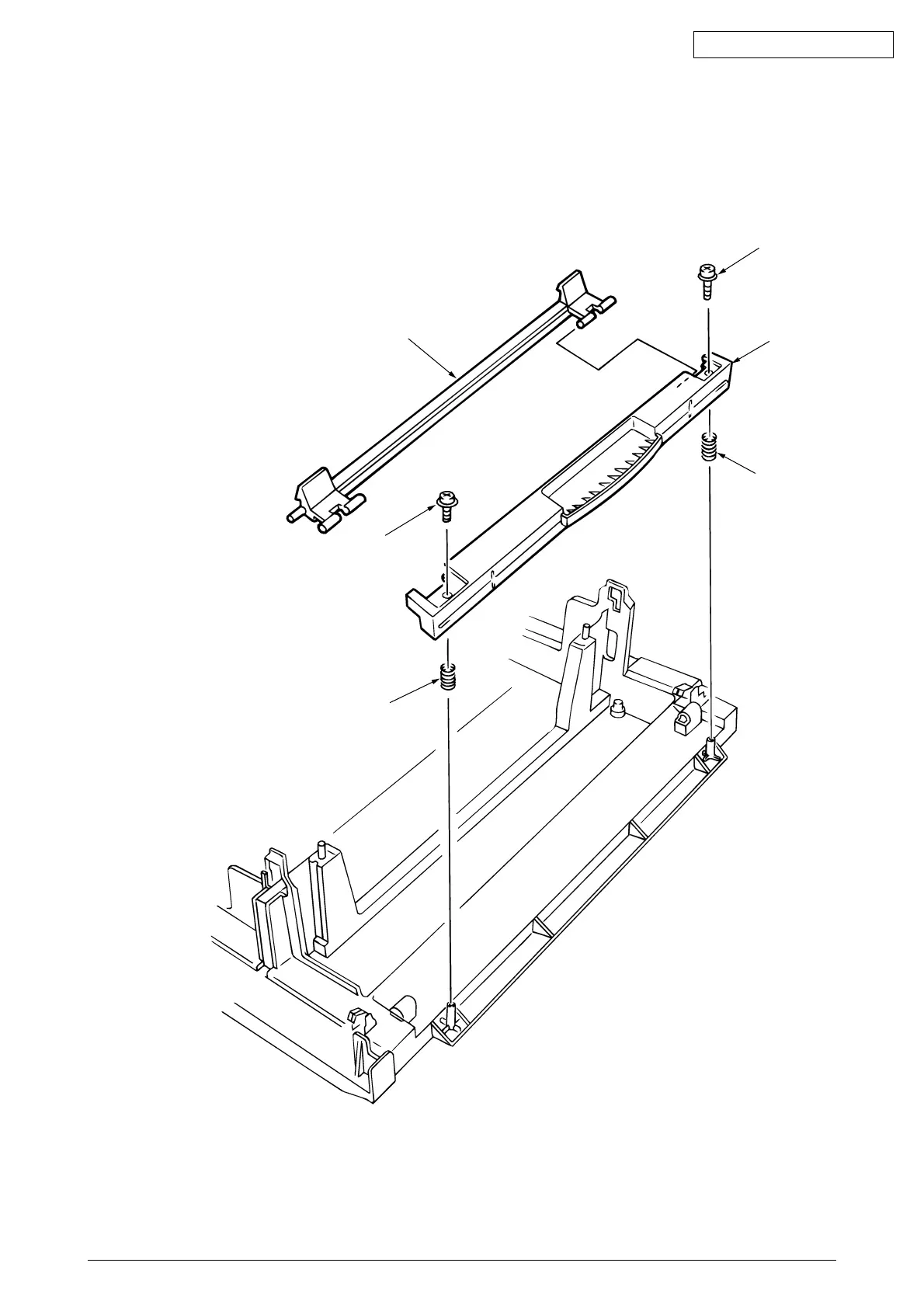

Figure 2-3-5 Top Cover Handle / Top Cover Latch / Top Cover Latch Spring
