Oki C9500 - Registration Clutch; Registration Motor Assy

41956001TH Rev.6 41 /
Oki Data CONFIDENTIAL
7
3
6
4
1
2
6
5
2.3.18 Registration Clutch / Registration Motor Assy
(1) Remove the Left Side Cover. (See Sec. 2.3.9.)
(2) Remove the Electrical Chassis. (See Sec. 2. 3. 22.)
(3) Unplug the connector, take out the E Ring 1 and dismount the Registration Clutch 2. Unscrew
the screws 3 and 4, and remove the Earth Plate 5.
(4) Unplug the connector, unscrew 2 screws 6 and remove the Registration Motor Assy 7.

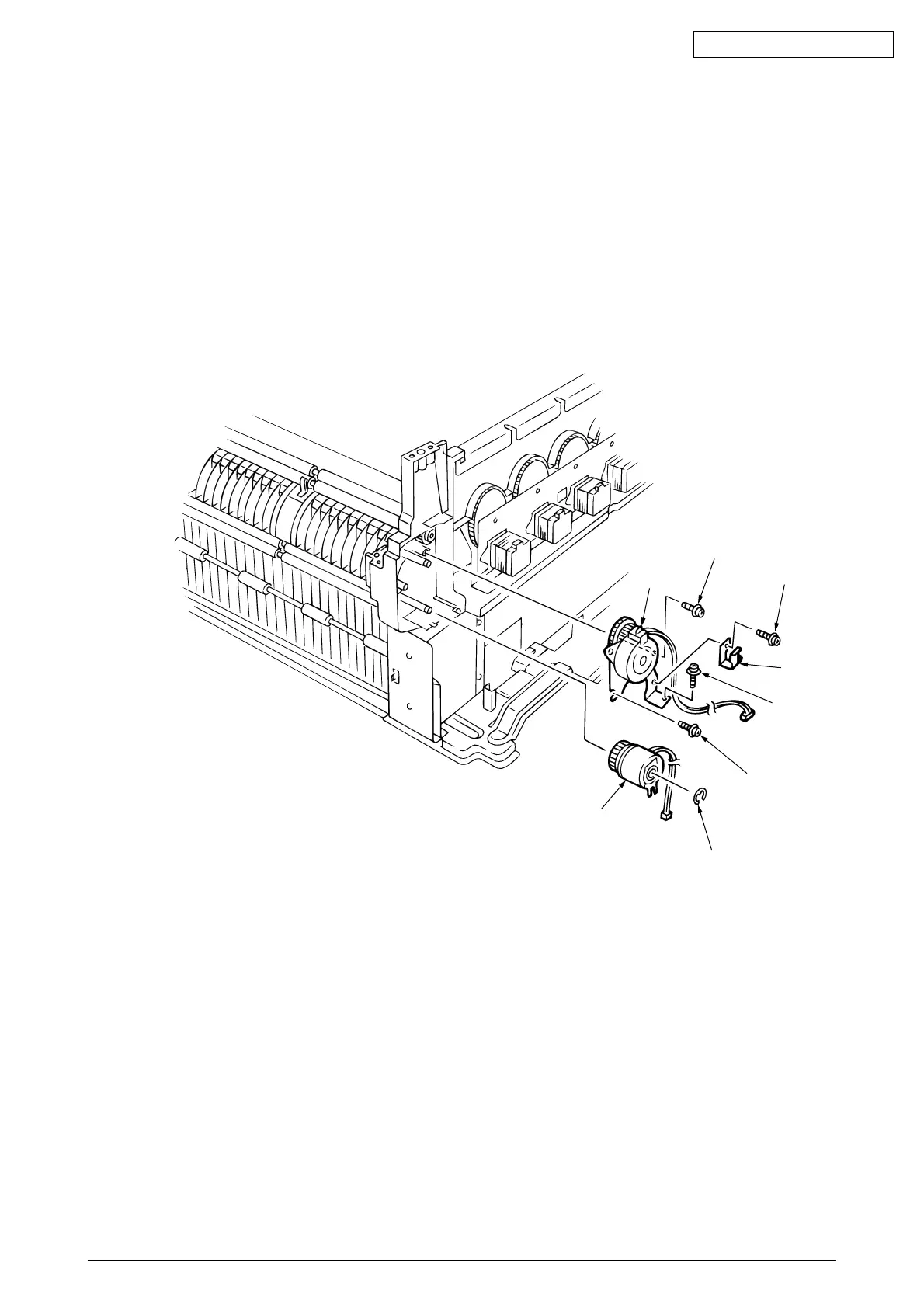

Figure 2-3-18 Registration Clutch / Registration Motor Assy
