41956001TH Rev.6 97 /
Oki Data CONFIDENTIAL
3.4.2.3 Sensitivity Adjustment

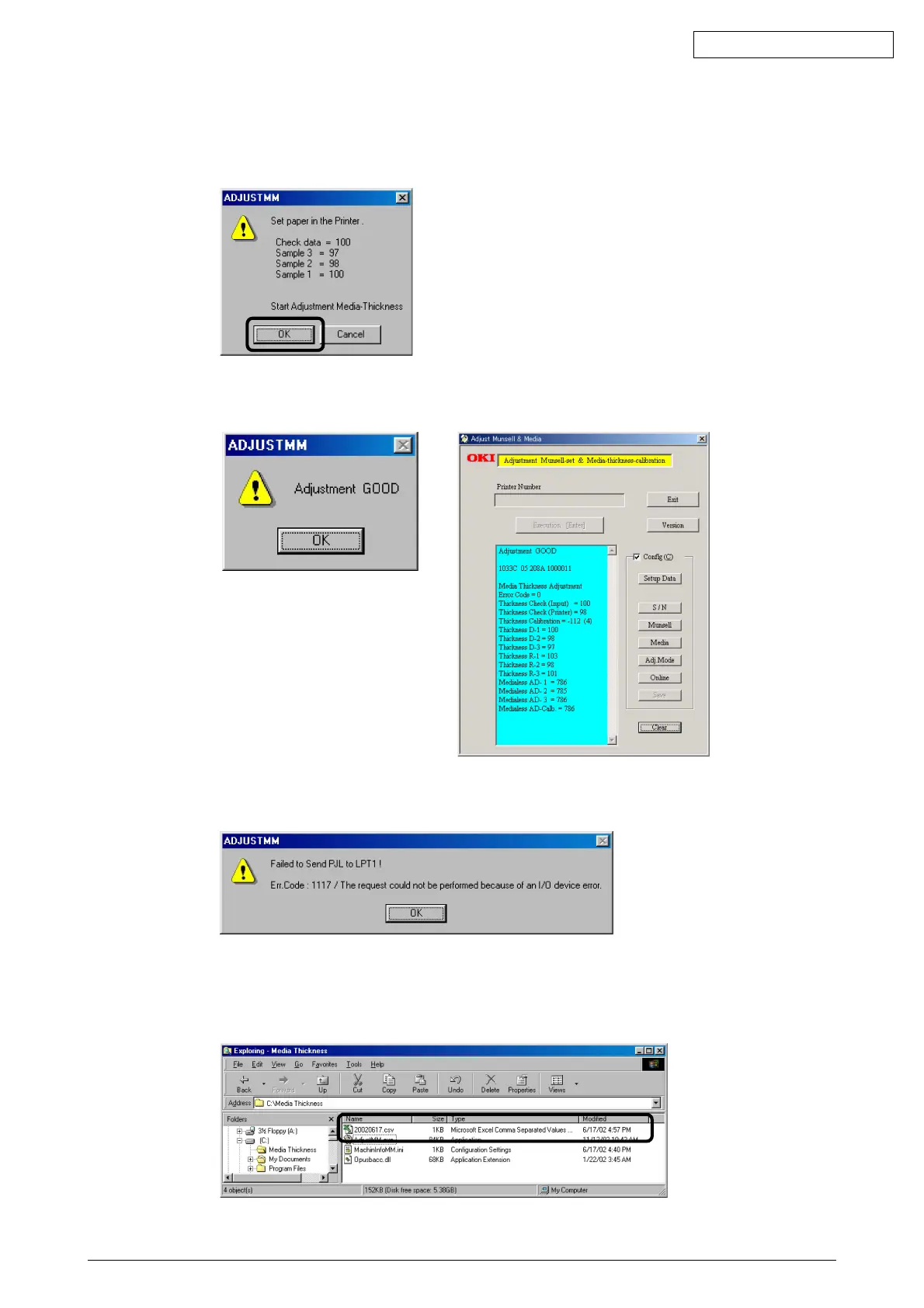

(1) With the press of OK on the ADJUSTMM screen, sensitivity adjustment is performed. The
printer boots up, and four sheets of media are passed through it.
(2) When the sensitivity adjustment is completed properly, the ADJUSTMM screen and the
Adjust Munsell & Media screen are displayed.
(3) When the sensitivity adjustment is not properly completed, the screen appears. In such
cases, see Actions for NG Sensitivity Adjustment.
(4) The folder C:\MediaThickness is automatically created, storing the result of the sensitivity
adjustment in the CSV format.
Determine cause(s) of NG results from the stored file. After the cause(s) are corrected,
conduct sensitivity adjustment again.
(5) Power off the printer and disconnect the interface cable.
To Next Page
