Oki C9500 - Belt Unit

41956001TH Rev.6 62 /
Oki Data CONFIDENTIAL
1
2
3

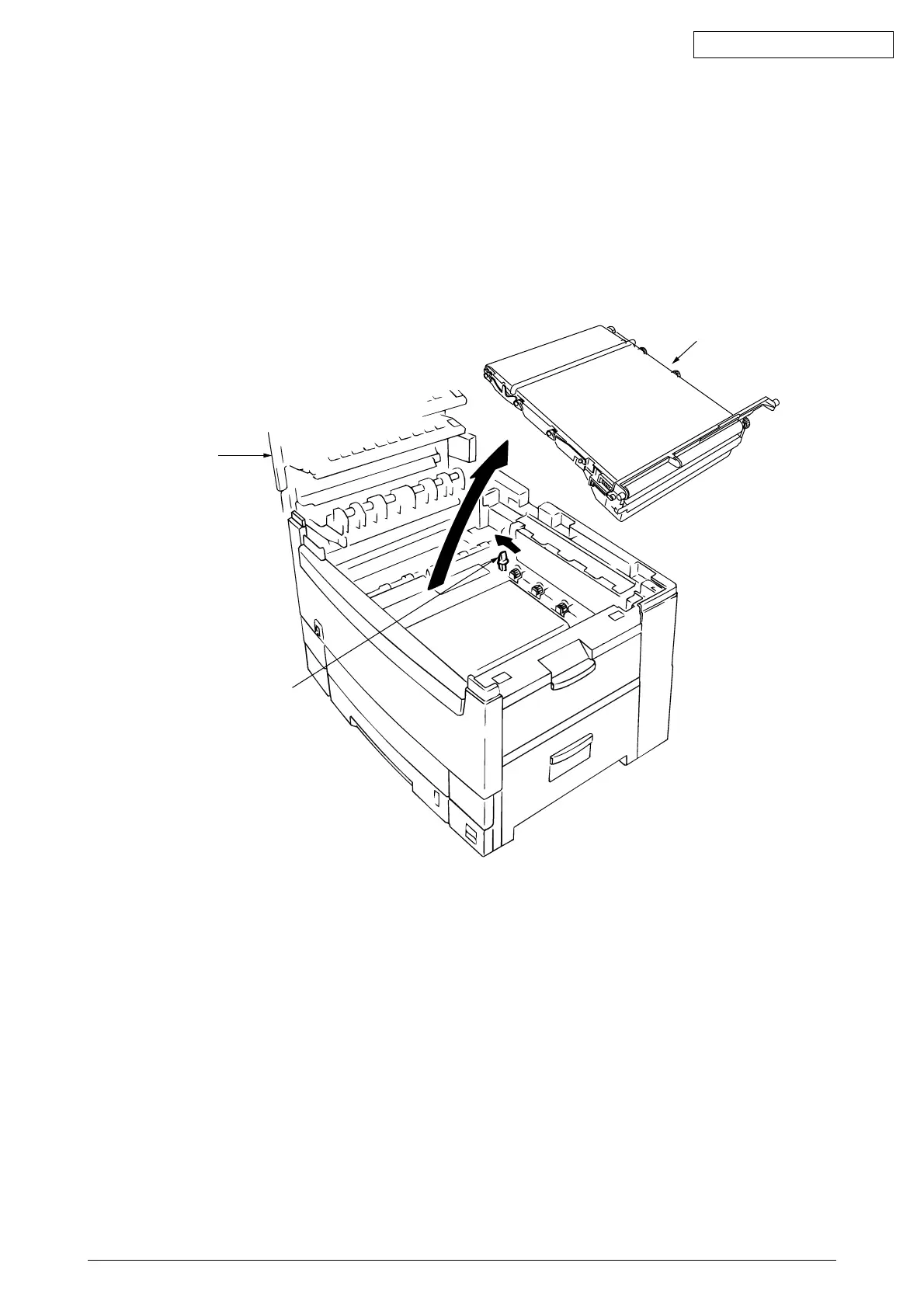

Figure 2-3-39 Belt Unit
2.3.39 Belt Unit
(1) Open the Top Cover 1.
(2) Remove the I/D Unit.
(3) Push the lever (blue) 2 to the arrow direction and pull the handle (blue) upward to remove the
Belt Unit 3.
