41956001TH Rev.6 63 /
Oki Data CONFIDENTIAL
1
3
2
5
4

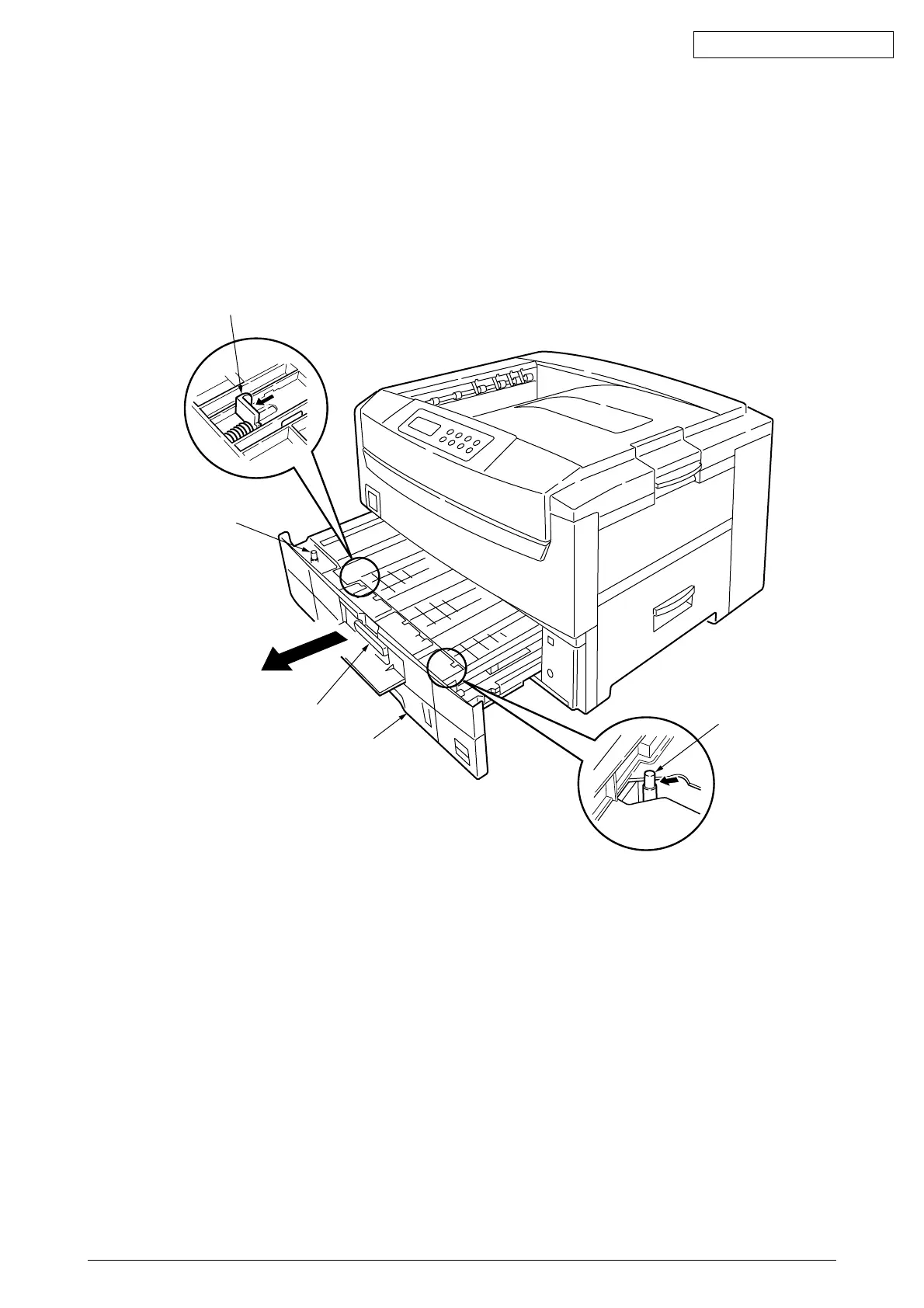

Figure 2-3-40 Duplex Unit
2.3.40 Duplex Unit
(1) Pull the lever 2 of the duplex unit 1 to slide out the unit 1 toward the front, and detach the unit
1 by pulling its front upward.
(2) Turn the lever 3 of the duplex unit 1 toward the front, then pull the lever 4 toward the front to
check to see that the pin 5 moves up.
(3) The duplex unit 1 can be separated from the cassette Assy by moving the unit up.
To Next Page
