2.3.32 Fuser Latch Handle (R)
(1) Remove Printer Unit Chassis. (See Sec. 2.3.24.)
(2) Take out the E Ring 1.
(3) Release the Fuser Latch Handle Spring 2 and remove the Fuser Latch Handle (R) 3.

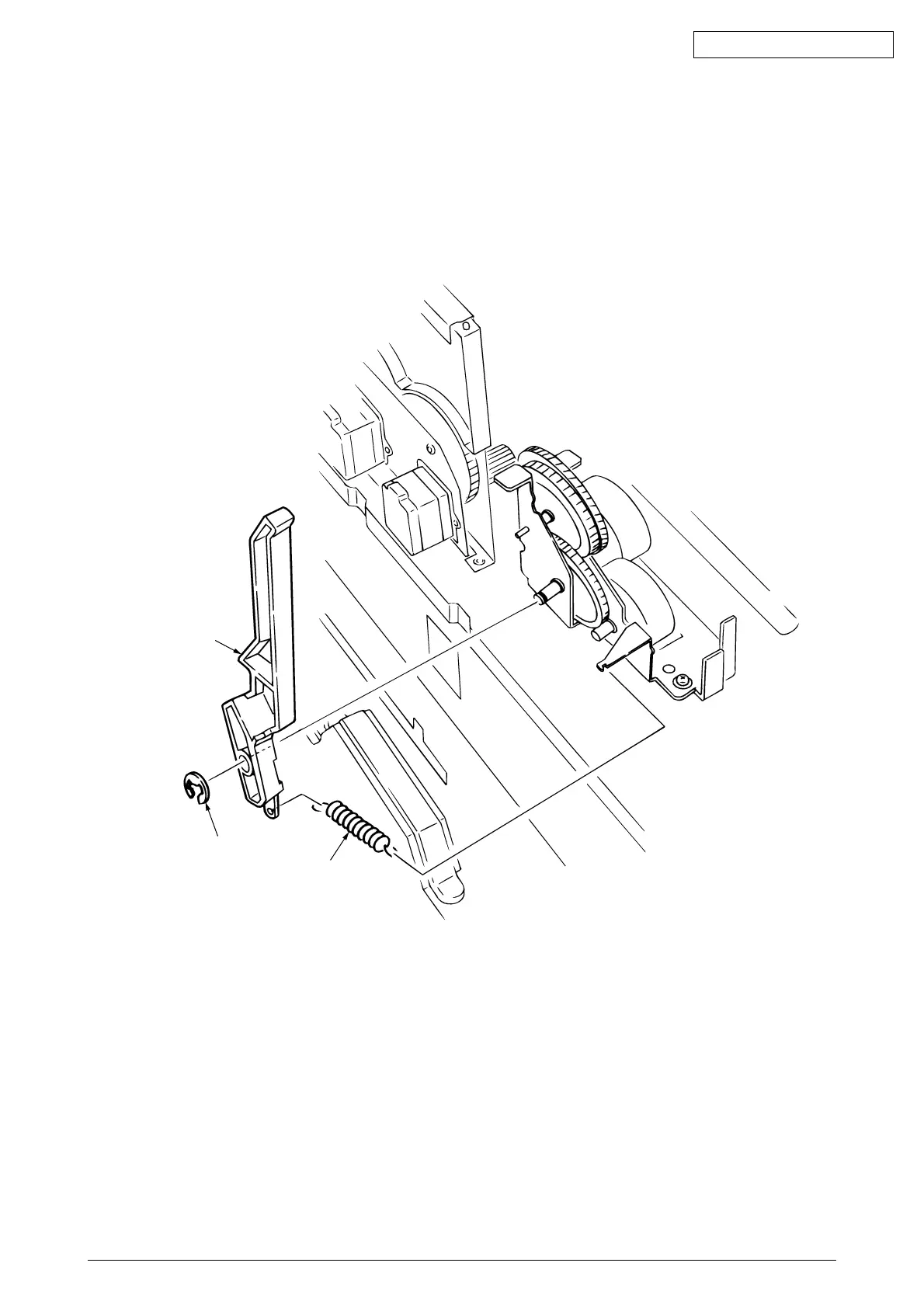

Figure 2-3-32 Fuser Latch Handle (R)
