APPENDIX B 2ND/3RD TRAY, HIGHT CAPACITY TRAY UNIT
2nd Tray

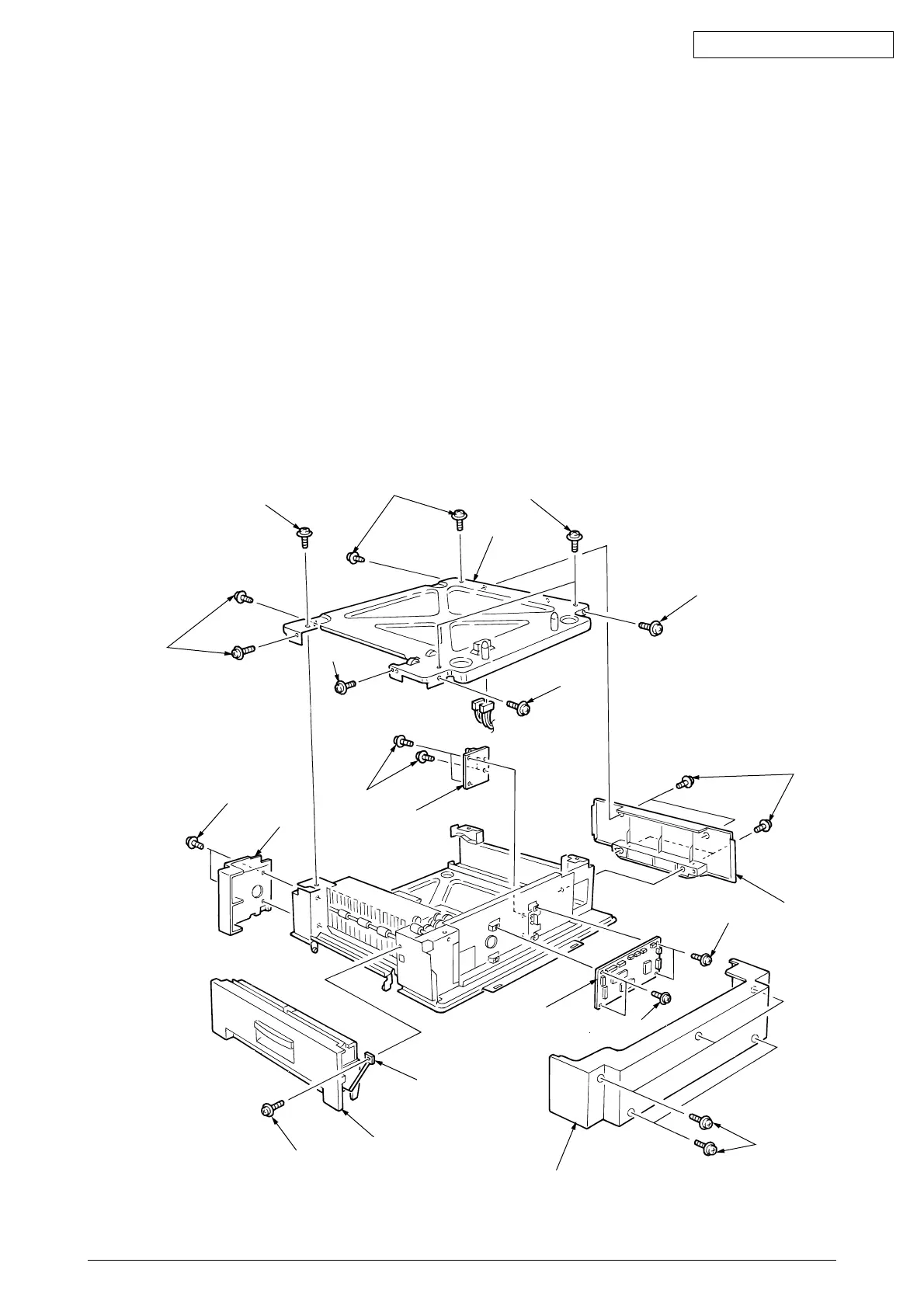

1. Control PWB, Paper Size Sensor PWB.
(1) Unscrew the five screws 1 to remove the cover-rear-opt 2.
(2) Unscrew the four screws 3 to remove the cover-side (L)-opt 4.
(3) Unscrew the two screws 5 to remove the cover-side (R) sub-opt 6.
(4) Unscrew the screw 7 to remove the stopper 8, and disengage the front claw, to remove the
cover Assy.-R 9.
(5) Remove the ten screws 0 and the connector to remove the plate top A.
(6) Remove the all connectors and the four screws B to demount the control PWB C.
(7) Unscrew the four screws D to demount the paper size sensor PWB E.
1
2
3
4
5
6
7
9
8
0
0
0
0
0
0
0
A
B
B
C
D
E
