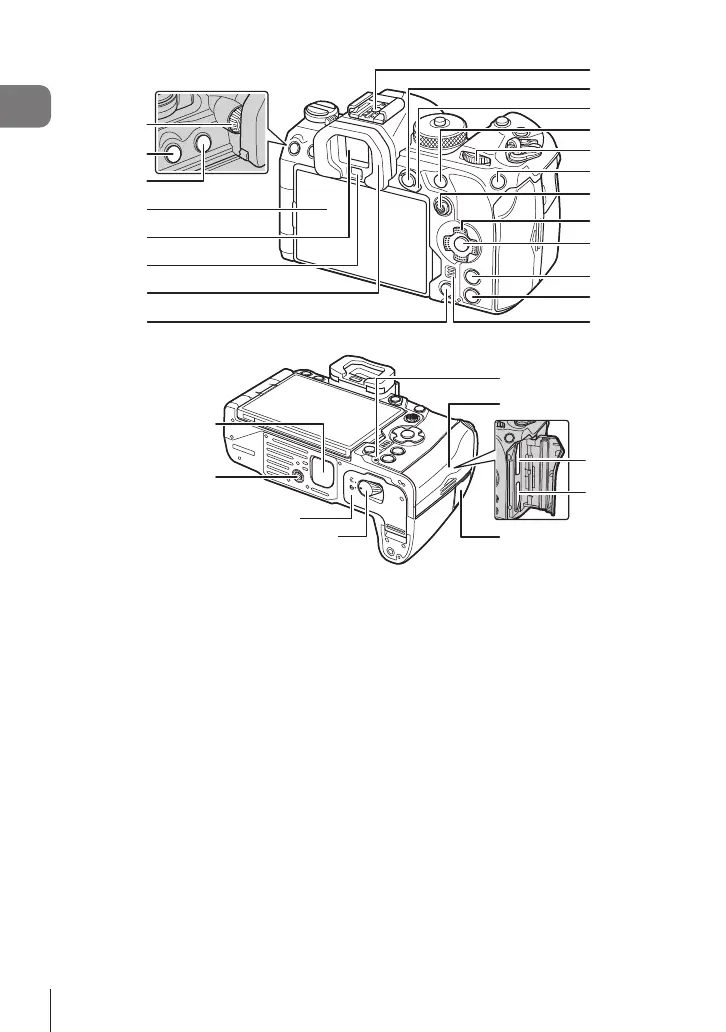

Names of parts
6
5
7
8
4
1
2
3
9
0
a
d
c
b
h
i
j
f
e
g
k
l
m
n
p
o
s
q
r
1 Diopter adjustment dial ...................P. 37
2 MENU button .................................P. 63
3 u (LV) button ..............................P. 37
4 Monitor (Touch screen)
............................P. 34, 37, 41, 101, 191
5 Viewnder ...............................P. 37, 228
6 Eye sensor
7 Eyecup ..........................................P. 301
8 D (Erase) button ..........................P. 194
9 Hot shoe ...............................P. 119, 300
0 AEL / 0 (Protect) button
...........................................P. 109/P. 193
a Fn lever ...........................P. 43 – 49, 219
b AF-ON button ......................P. 83, P. 84
c Rear dial (j)
................
P. 43 – 50, 63, 188, 205, 216, 218
d ISO / f (Rating) button
...........................................P. 113/P. 196
e Multi selector (S/T) .............P. 76, 218
f Arrow pad (FGHI) ..................P. 188
g Q button ..........................P. 63, 69, 188
h INFO button .................P. 38, P. 65, 187
i q (Playback) button ....................P. 188
j Speaker
k Power battery holder (PBH) cover
......................................................P. 295
l Tripod socket
m Battery compartment cover.............P. 20
n Battery compartment lock ...............P. 20
o Battery charge lamp........................P. 23
p Card compartment cover ................P. 24
q Card slot 1 ......................................P. 24
r Card slot 2 ......................................P. 24
s Remote cable terminal cover
(Remote cable terminal) ...............P. 279
