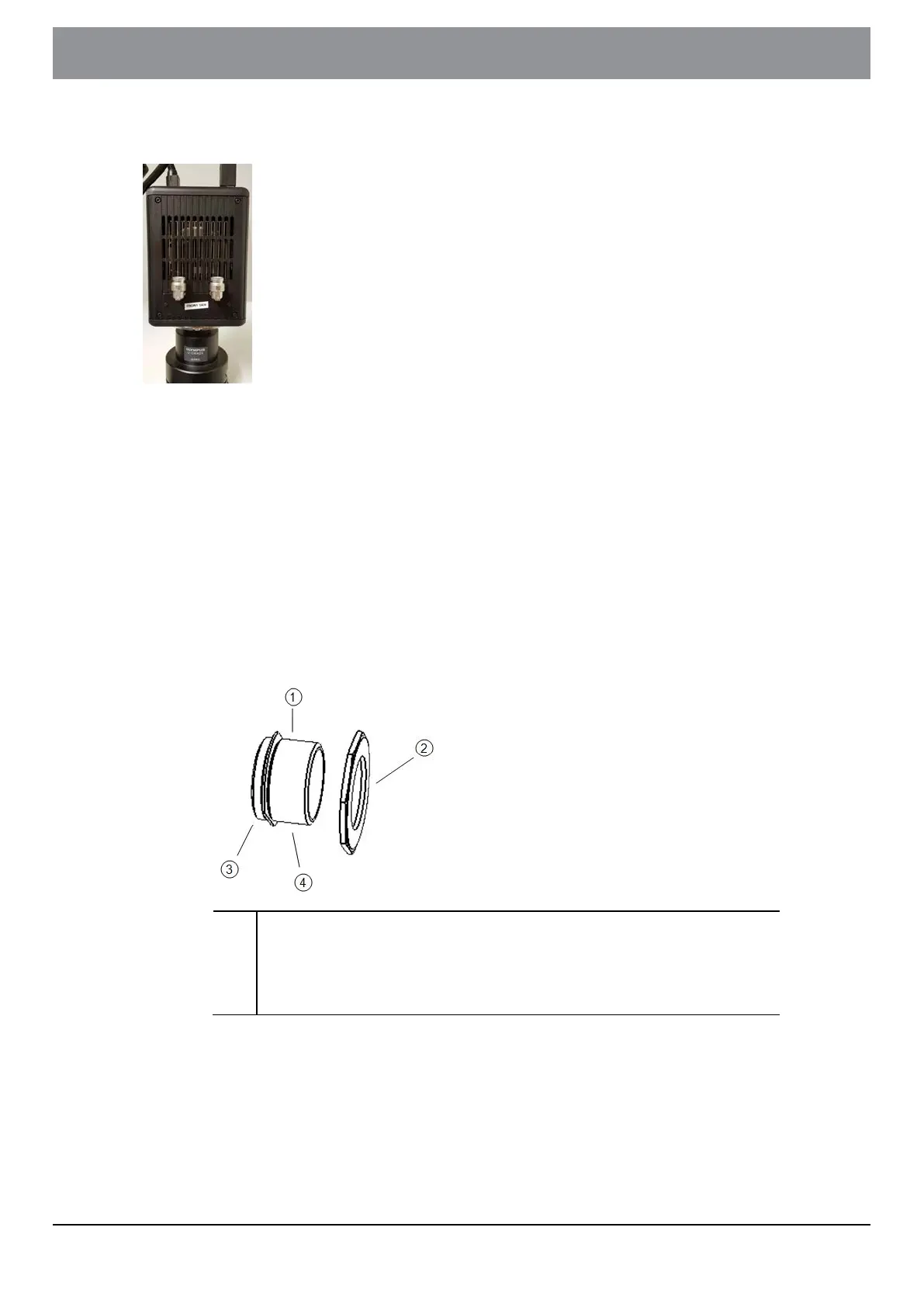

The orientation of the ORCA Fusion VS200 camera should be with the water cooling
connectors facing the front side of the system.
If your fluorescence kit contains a U-FFWO T3, follow the instructions below to
mount a monochrome camera. For more details refer to the U-FFWO manuals.
This example describes how to attach an ORCA Flash 4.0 camera to the U-FFWO T3.
The attachment of VS304M (iDS) and ORCA Fusion VS200 is identical.
Mounting a camera to the U-FFWO
Refer to the U-FFWO instruction manual to chapter [Mounting a camera to the U-
FFWO] for more information.
1. Check that the counternut is pre-installed on the long side of the C-mount
adapter. The counternut should be 1 turn away from the C-mount
adapter.
(1) C-mount adapter
(2) counternut
(3) short side
(4) long side
2. Hand-tighten the short side of the C-mount adapter to the camera clock-
wise.
- 54 -
Instructions for use
11 Mounting fluorescence components
OLYMPUS VS200 System
