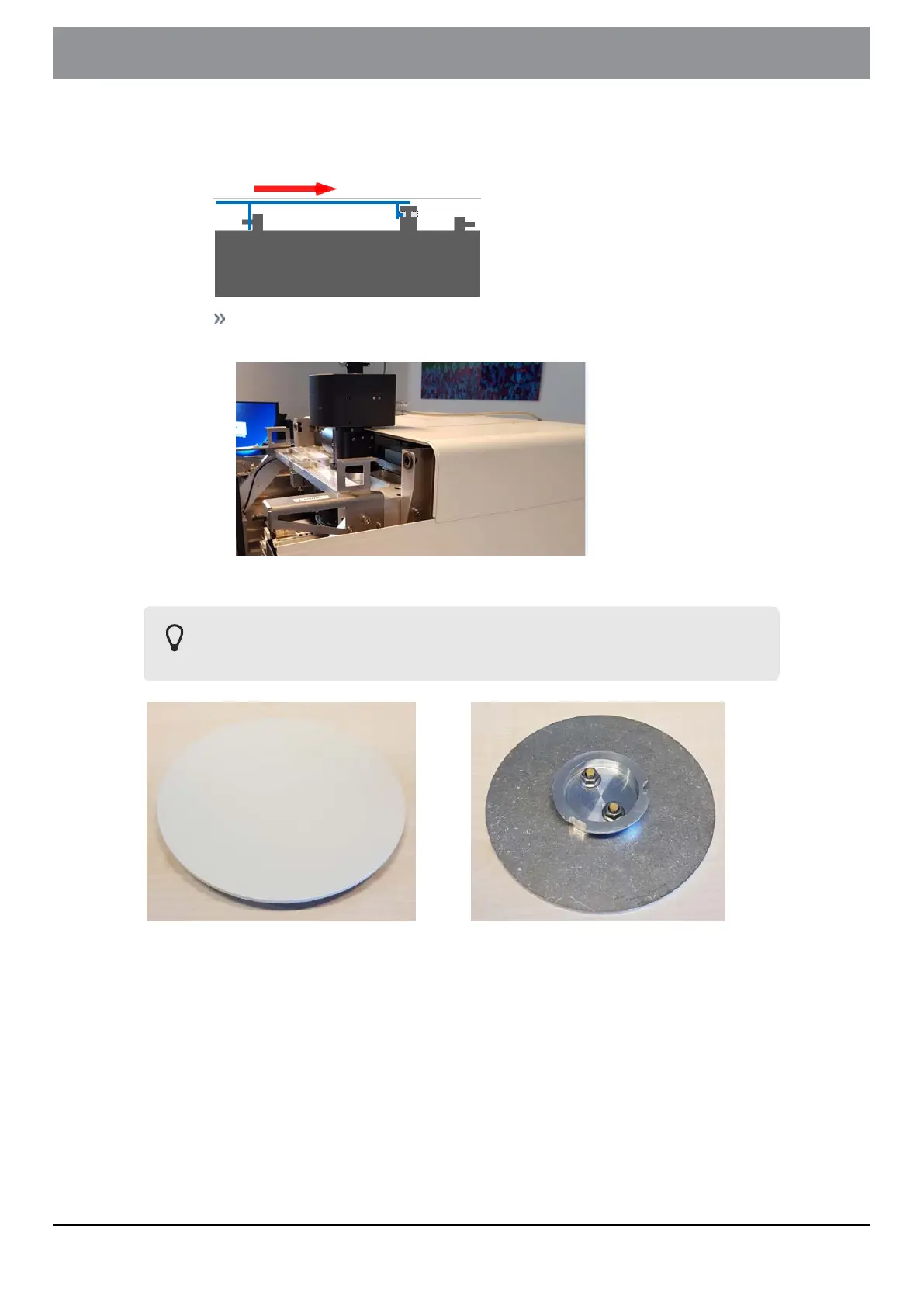

12 Assembly of the housing for scanner
3. Gently push the top panel to the front of the system (where the front door
is mounted).
If the first part of the top panel is correctly mounted it should look like
this:
Mount the beam splitter cover
In case you have a brightfield system only you have to mount the beam
splitter cover now.
top view bottom view
1. Put the round cover on top of the beam splitter flange and fix it by tight-
ening the 3mm headless hex screw.
Images
Top panel - second part
To attach the second part of the top panel follow the instructions below.
- 67 -
Instructions for useOLYMPUS VS200 System
