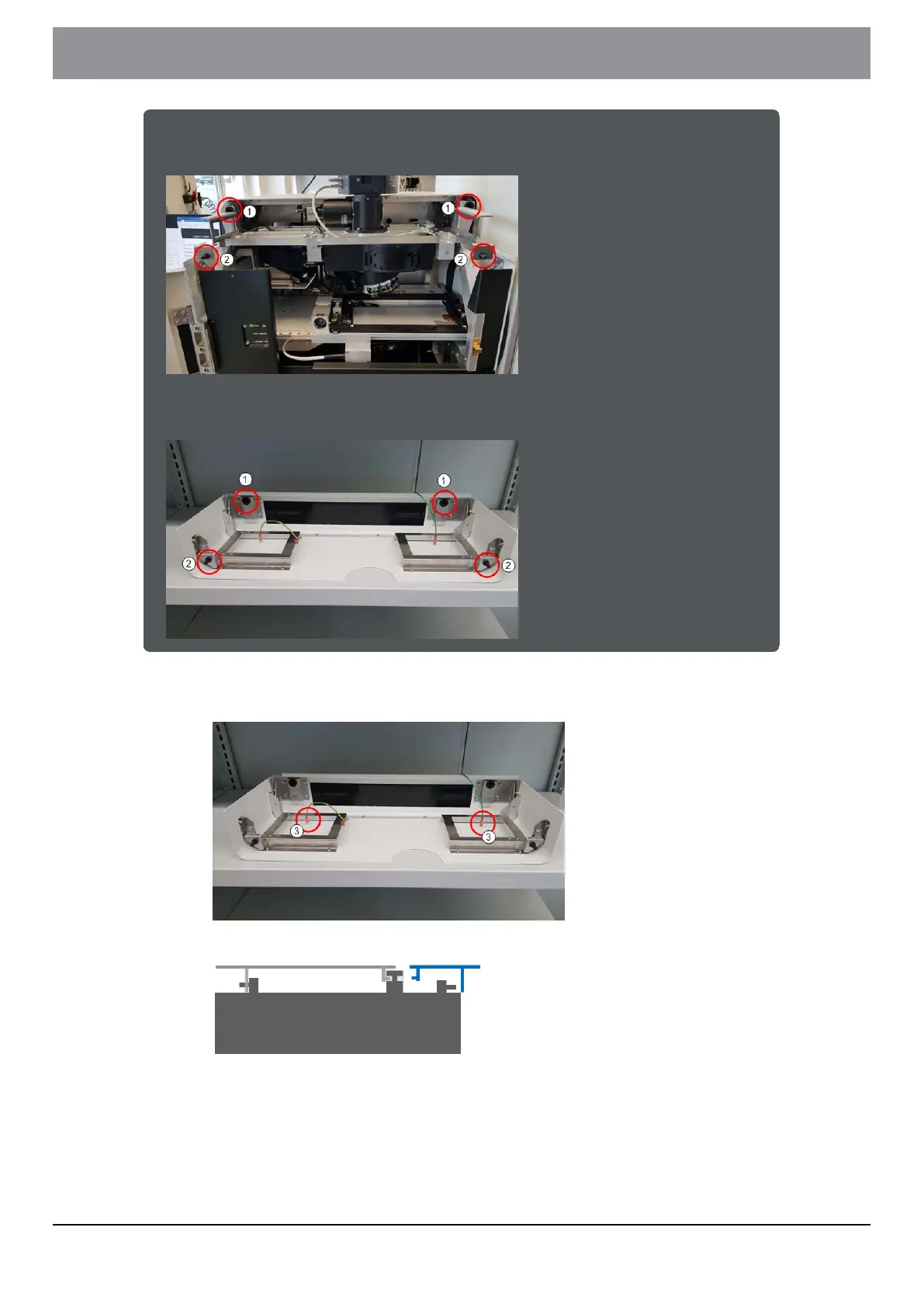

On the VS200 scanner you find two quick lock sockets(1) and two quick lock
pins (2).
On the panel itself you find the corresponding parts; two quick locks sockets
(1) and two quick lock pins (2).
1. To make the assembly easier connect the two grounding flags already to
the grounding plugs (3) of the top panel.
2. Open the front door and put the short top panel parallel on the scanner.
3. Gently push it towards the back of the system until the pins fit into the
quick lock sockets.
- 68 -
Instructions for use
12 Assembly of the housing for scanner
OLYMPUS VS200 System
