164
Programming Devices Section 3-3

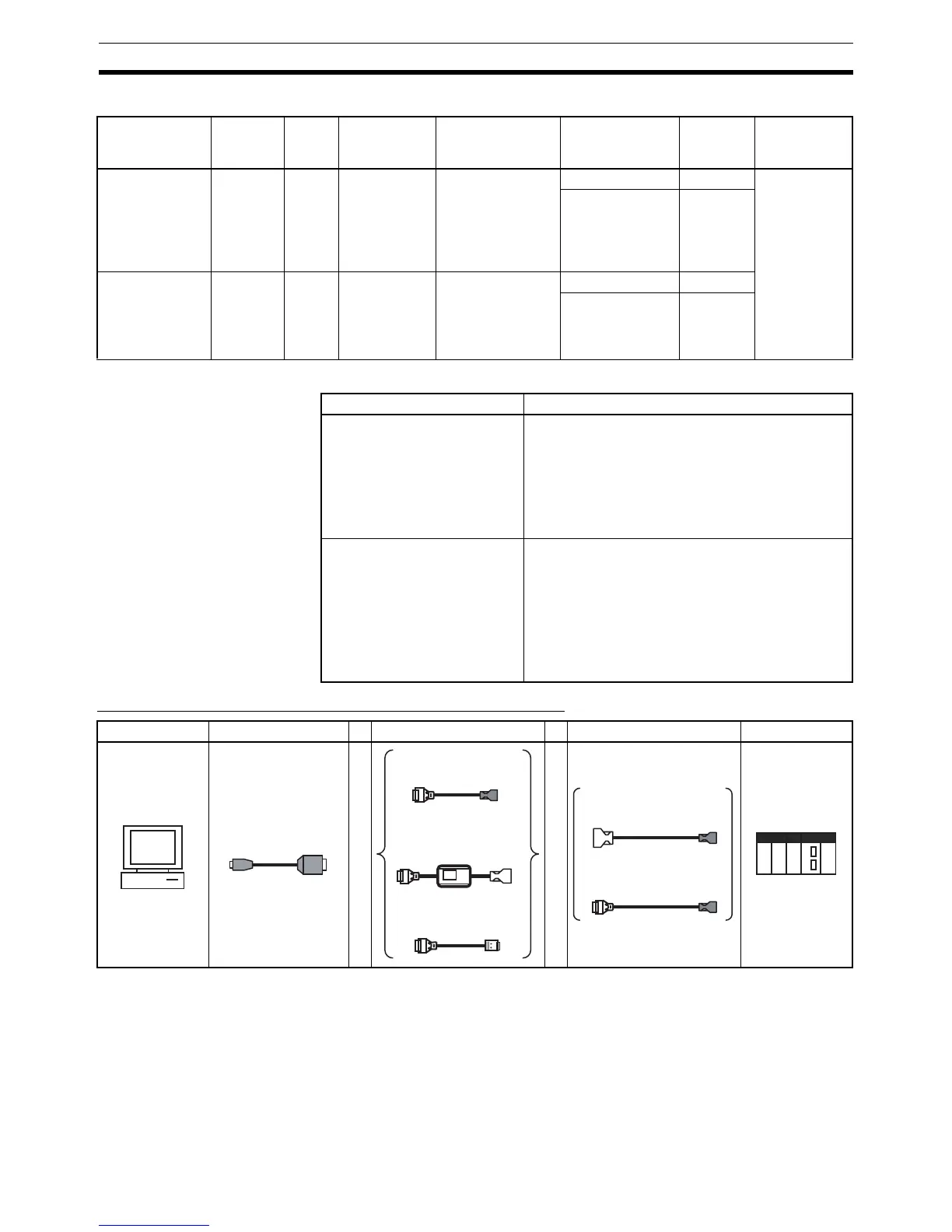

Using a RS-232C Cable for a IBM PC/AT or Compatible
Communications Modes when Connecting a CX-Programmer to a CS-series CPU Unit
Connection Method for USB-Serial Conversion Cable
Unit Unit port Com-
puter
Computer
port
Serial
communications
mode
Model Length Cable notes
CPU Units Built-in
RS-232C
port
D-Sub,
9-pin,
female
DOS D-Sub, 9-pin,
male
Host Link XW2Z-200S-V 2 m ---
XW2Z-500S-V 5 m
Serial Communi-
cations Units
RS-232C
port
D-Sub,
9-pin,
female
DOS D-Sub, 9-pin,
male
Host Link XW2Z-200S-V 2 m
XW2Z-500S-V 5 m
Serial communications mode Characteristics
Peripheral Bus High-speed communications are possible. Conse-
quently, connecting via a peripheral bus is recom-
mended when using a CX-Programmer.
Only 1:1 connection is possible.
When using a CS-series CPU Unit, the baud rate of
the communications devices can be automatically
recognized for connection.
Host Link This is a communications protocol with a general-
purpose host computer.
Either 1:1 or 1:N connections are possible.
Host Link communications are slow compared with
the Peripheral Bus communications.
The following connections are possible: Via a
modem or optical fiber adapter, over long distance
using a RS-422A/485, and 1:N.
Computer CS1W-CIF31 Cable 1 Cable 2 PLC
++
CS1W-CIF31 USB
Connecting Cable
OR
OR
CS1W-N226/626 CS/CJ-series
Peripheral Port Programming
Device Connecting Cable
CQM1H-CIF02 C-series
Peripheral Port Programming
Device Connecting Cable
XW2Z-@@@ RS-232C
Programming Device
Connecting Cable
CS1W-CN114 C-series Peripheral-
CS/CJ-series Peripheral
Conversion Cable
CS1W-CN118 RS-232C-CS/CJ-
series Peripheral Conversion
Cable
To Next Page
