CJ-series Basic I/O Units Section 3-6

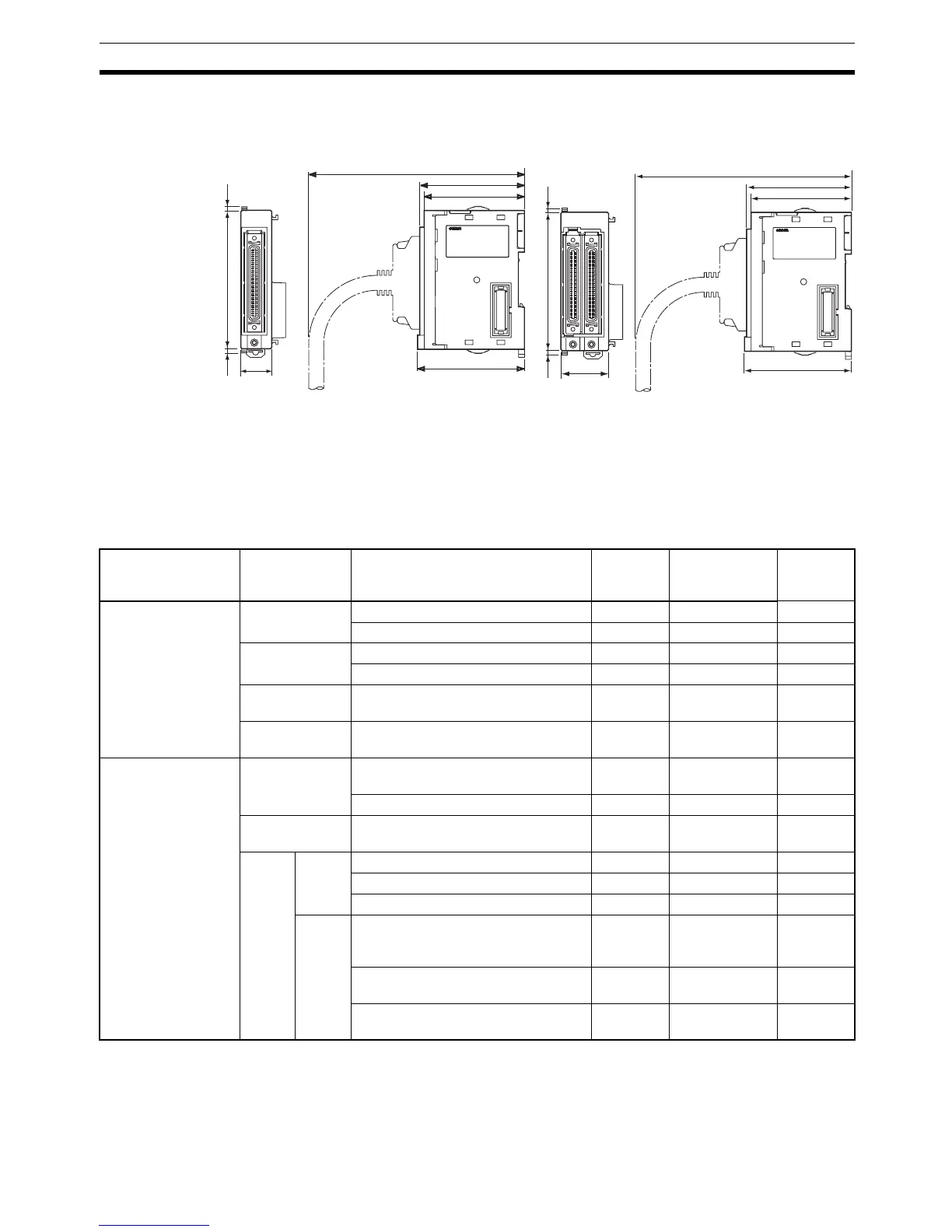

3-5-4 Dimensions
Note Attached the enclosed cover to the I/O Connecting Cable connector on the I/O
Interface Unit when it is not being used to protect it from dust.
3-6 CJ-series Basic I/O Units
3-6-1 CJ-series Basic I/O Units with Terminal Blocks
Classification Name Specifications Number
of bits
allocated
Model Page
Basic Input Unit with
Ter m i n al B l o ck
DC Input Units 24 V DC 16 CJ1W-ID211 540
12 to 24 V DC 8 CJ1W-ID201 539
AC Input Units 200 to 240 V AC 8 CJ1W-IA201 548
100 to 120 V AC 16 CJ1W-IA111 549
Quick-response
Units
24 V DC 16 CJ1W-IDP01 551
Interrupt Input
Unit
24 V DC 16 CJ1W-INT01 550
Basic Output Units
with Terminal Blocks
Relay Output
Units
250 V AC/24 V DC, 2 A;
8 independent contacts
8 CJ1W-OC201 565
250 V AC/24 V DC, 2 A; 16 outputs 16 CJ1W-OC211 566
Tr i a c O u t p u t
Unit
250 V AC, 0.5 A 8 CJ1W-OA201 567
Tran-
sistor
Output
Unit
Sink 12 to 24 V DC, 2.0 A 8 CJ1W-OD201 568
12 to 24 V DC, 0.5 A 8 CJ1W-OD203 569
12 to 24 V DC, 0.5 A 16 CJ1W-OD211 570
Source 24 V DC, 2 A, load short-circuit pro-
tection and line disconnection detec-
tion
8 CJ1W-OD202 578
24 V DC, 0.5 A, load short-circuit pro-
tection
8 CJ1W-OD204 579
24 V DC, 0.5 A, load short-circuit pro-
tection
16 CJ1W-OD212 580
2.72.7 90
69.3
65
68
(140)
OUT IN
II101
31
OUT
OUT
IC101
IC101
2.7
2.7
90
69.3
65
68
(140)
20
CJ1W-IC101 I/O
Control Unit
CJ1W-II101 I/O
Interface Unit
