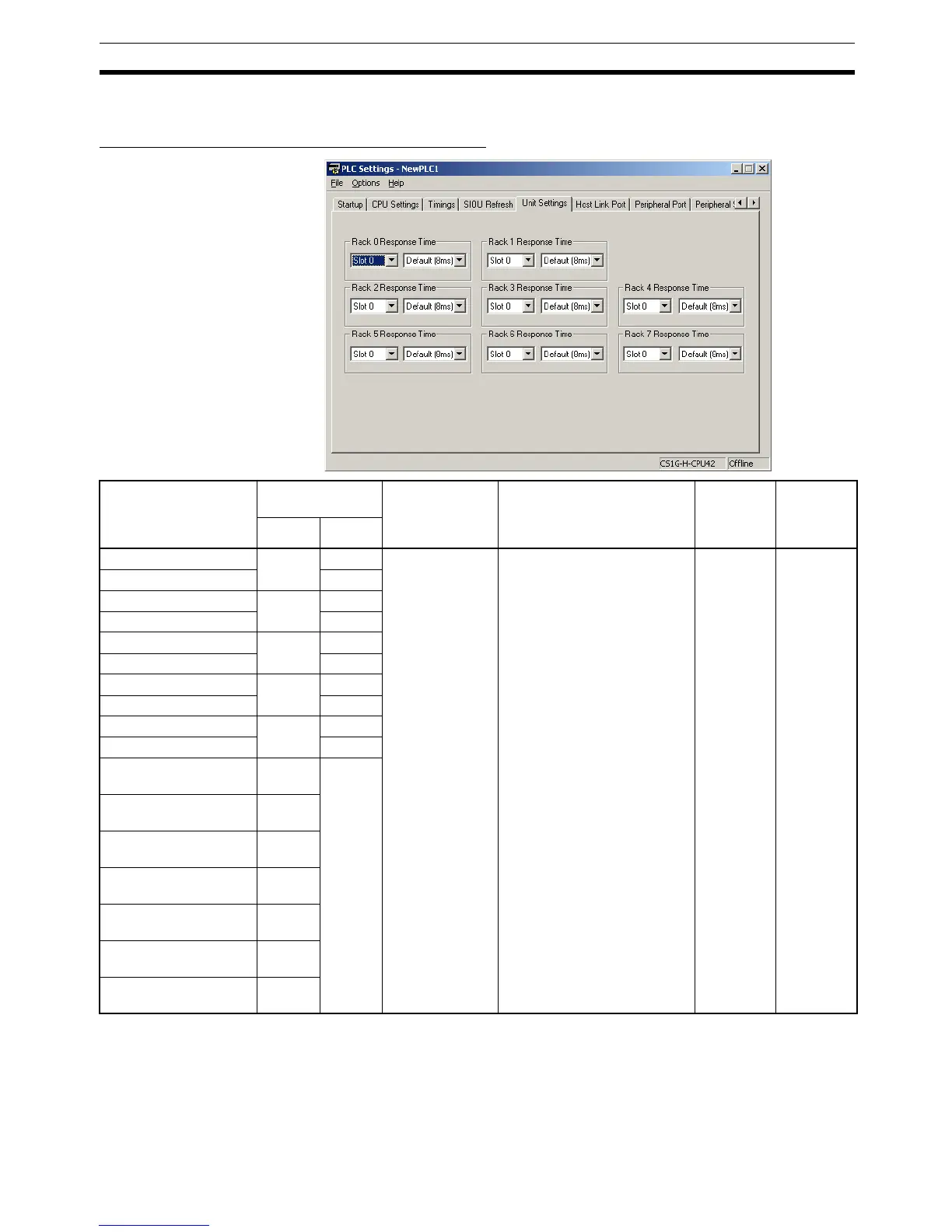

PLC Setup Section 7-1
7-1-2-5 Unit Settings Tab Page
Basic I/O Unit Input (Rack) Response Times
Item Programming
Console address
Settings Function Related
flags and
words
When
setting is
read by
CPU Unit
Word Bit(s)
Rack 0, Slot 0 +10 0 to 7 00: 8 ms
10: 0 ms
11: 0.5 ms
12: 1 ms
13: 2 ms
14: 4 ms
15: 8 ms
16: 16 ms
17: 32 ms
Default:
00 (8 ms)
Sets the input response time
(ON response time = OFF
response time) for CJ-series
Basic I/O Units. The default
setting is 8 ms and the setting
range is 0 ms to 32 ms.
This value can be increased to
reduce the effects of chatter-
ing and noise, or it can be
reduced to allow reception of
shorter input pulses.
A220 to
A259:
Actual
input
response
times for
Basic I/O
Units
At startup.
Rack 0, Slot 1 8 to 15
Rack 0, Slot 2 +11 0 to 7
Rack 0, Slot 3 8 to 15
Rack 0, Slot 4 +12 0 to 7
Rack 0, Slot 5 8 to 15
Rack 0, Slot6 +13 0 to 7
Rack 0, Slot 7 8 to 15
Rack 0, Slot 8 +14 0 to 7
Rack 0, Slot 9 8 to 15
Rack 1, Slots 0 to 9 +15 to
19
See
Rack 0.
Rack 2, Slots 0 to 9 +20 to
24
Rack 3, Slots 0 to 9 +25 to
29
Rack 4, Slots 0 to 9 +30 to
34
Rack 5, Slots 0 to 9 +35 to
39
Rack 6, Slots 0 to 9 +40 to
44
Rack 7, Slots 0 to 9 +45 to
49
To Next Page
