Omron CJ - 08-2008 User Manual

324

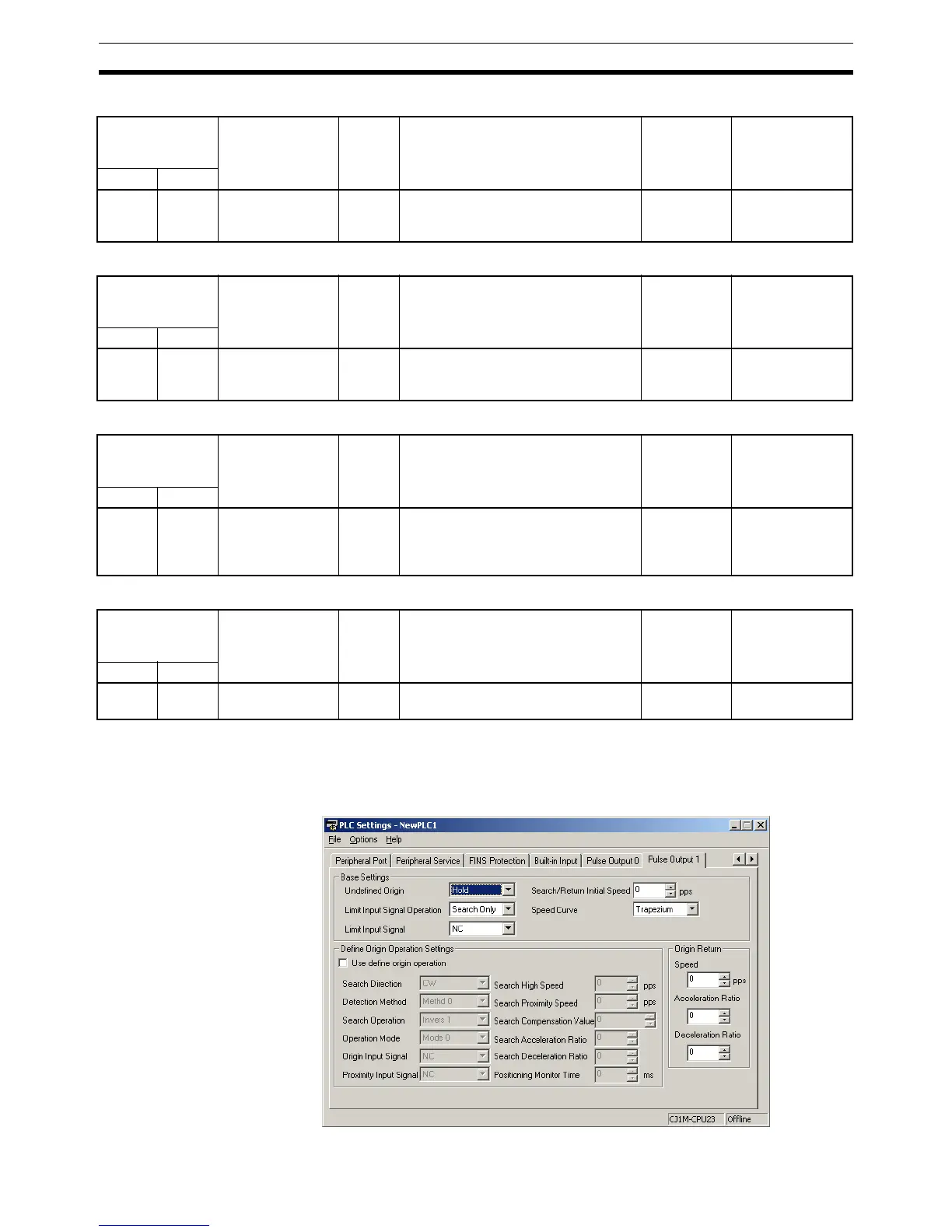

PLC Setup Section 7-1
Pulse Output 0 Origin Proximity Input Signal Type
Pulse Output 0 Origin Input Signal Type
Pulse Output 0 Undefine Origin Setting (CJ1M CPU Unit Ver. 2.0 Only)
Pulse Output 0 Positioning Monitor Time
Note When the CX-Programmer is being used to make the setting, the setting is
input in decimal.
7-1-2-13 Pulse Output 1 Settings
Programming
Console
address
Settings Default Function Related
Auxiliary
Area flags/
bits
Time when
setting is read
by CPU Unit
Word Bits
+268 04 to 07 0 hex: NC
1 hex: NO
0 hex Specifies whether the Origin Proxim-
ity Input Signal for pulse output 0 is
normally closed or normally open.
--- When operation
starts
Programming
Console
address
Settings Default Function Related
Auxiliary
Area flags/
bits
Time when
setting is read
by CPU Unit
Word Bits
+268 08 to 11 0 hex: NC
1 hex: NO
0 hex Specifies whether the Origin Input
Signal for pulse output 0 is normally
closed or normally open.
--- When operation
starts
Programming
Console
address
Settings Default Function Related
Auxiliary
Area flags/
bits
Time when
setting is read
by CPU Unit
Word Bits
+268 12 to 15 0 hex: Hold
1 hex: Undefine
0 hex Specifies whether to hold the origin
setting when the CW/CCW limit input
signal is input during execution of an
origin search or pulse output function.
--- When operation
starts
Programming
Console
address
Settings Default Function Related
Auxiliary
Area flags/
bits
Time when
setting is read
by CPU Unit
Word Bits
+269 00 to 15 0000 to 270F hex
(See note.)
0000
hex
Specifies the positioning monitor time
(0 to 9,999 ms) for pulse output 0.
--- When operation
starts
