Omron CPM1 Programming Manual

397

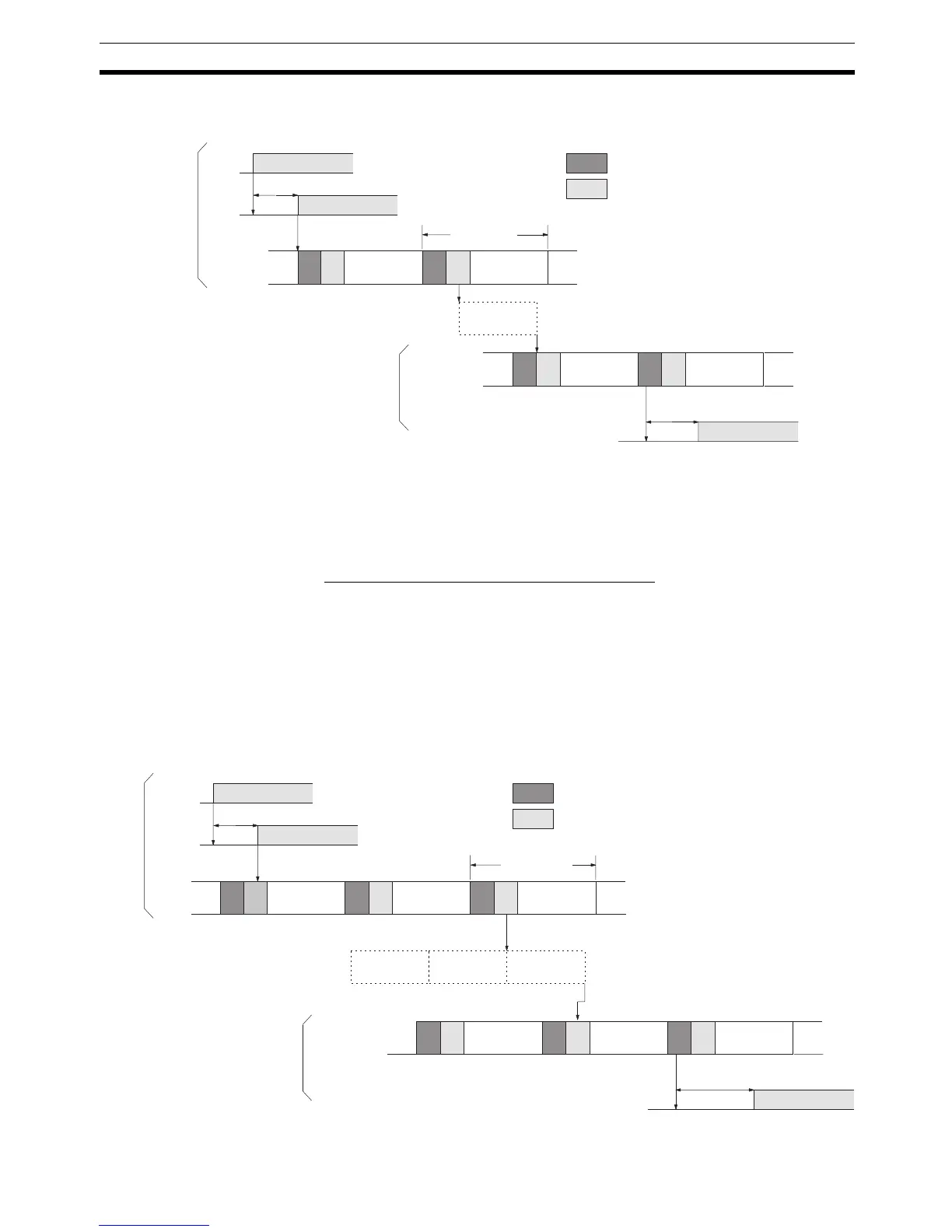

CQM1 Cycle Time and I/O Response Time Section 7-1
3. The slave executes communications servicing immediately after comple-
tion of communications.
The minimum I/O response time is as follows:
Input ON delay: 8 ms
Master cycle time: 10 ms
Transmission time: 39 ms
Slave cycle time: 15 ms
+ Output ON delay: 10 ms
Minimum I/O response time: 82 ms
Maximum I/O Response
Time
The CQM1 takes the longest to respond under the following circumstances:
1,2,3... 1. The CQM1 receives an input signal just after the input refresh phase of the
cycle.
2. The master to slave transmission does not begin on time.
3. Communications are completed just after the slave executes communica-
tions servicing.
Master
Input
point
Input
bit
CPU
processing
I/O refresh
Overseeing, communica-
tions, etc.
Cycle time
Input ON delay
One-to-one link
communications
Master to
Slave
CPU
processing
Slave
Instruction
execution
Instruction
execution
Instruction
execution
Instruction
execution
Output point
Output ON
delay
I/O refresh
Overseeing, communica-
tions, etc.
Input ON delay
Master
Input
point
Input
bit
CPU
processing
Cycle time
Instruction
execution
Instruction
execution
Instruction
execution
Instruction
execution
Instruction
execution
Slave
Master to
Slave
Slave to
Master
Master to
Slave
CPU
processing
Output point
Output ON
delay
Instruction
execution
One-to-one link
communications

Omron CPM1 Specifications

General

Model	CPM1
Manufacturer	Omron
Instruction Set	Basic and advanced instructions
Power Supply	100 to 240 VAC or 24 VDC
Communication	RS-232C
I/O Points	10, 20, 30, or 40 points depending on the model
Timers	Yes, multiple timers available
Counters	Yes, multiple counters available
Input Voltage	24V DC
Output Type	Relay or transistor
Number of I/O Points	10, 20, 30, 40
Communication Ports	RS-232C (optional)
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C
Humidity	10% to 90% (non-condensing)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
Program Memory	2048 steps (2K steps)
