Omron CPM1 Programming Manual

426
SRM1 Cycle Time and I/O Response Time Section 7-3
3. The Slave’s communications servicing occurs just after the transmission is
completed.
Maximum I/O Response
Time

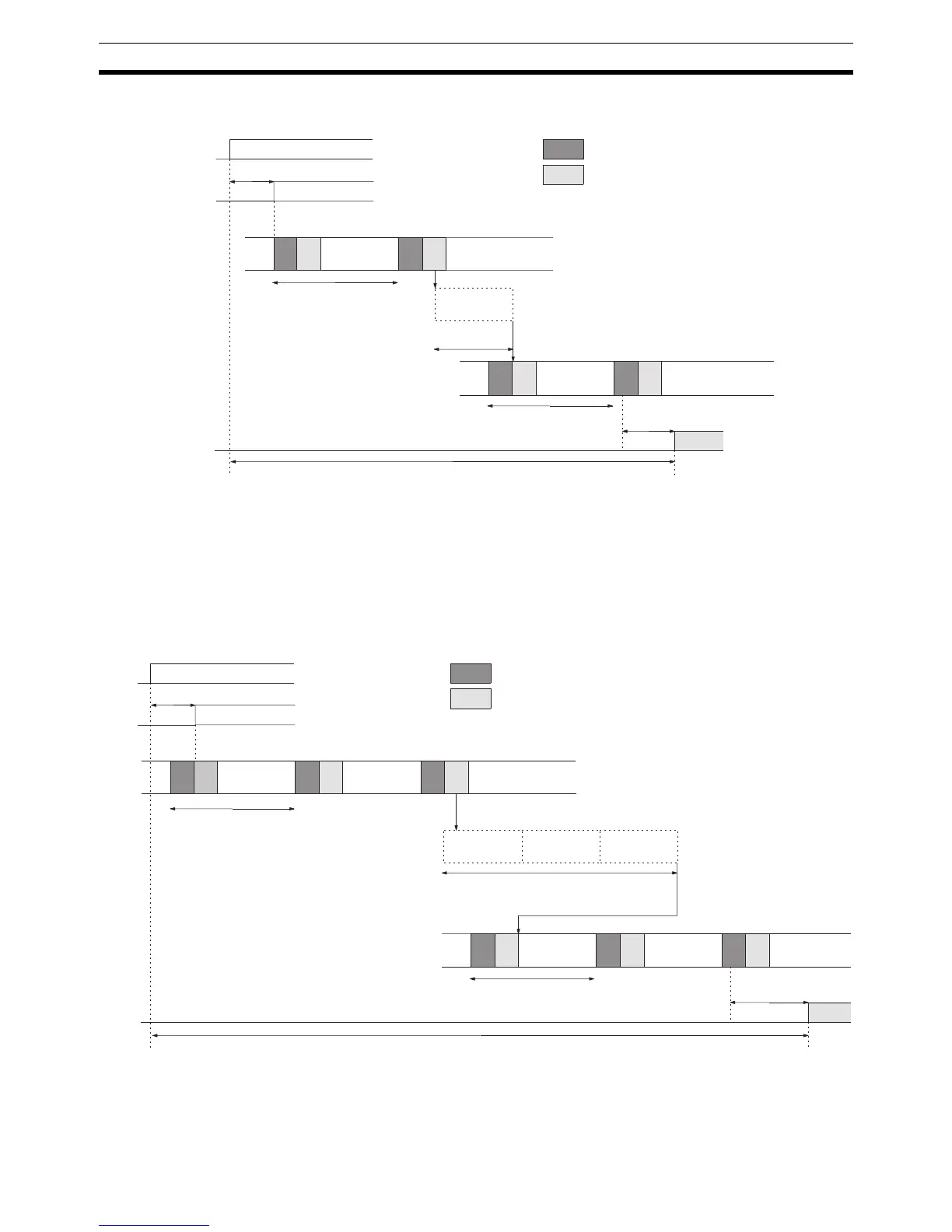

The SRM1 takes the longest to respond under the following circumstances:
1,2,3... 1. The SRM1 receives an input signal just after the I/O refresh phase of the
cycle.
2. The Master’s communications servicing just misses the master-to-slave
transmission.
3. The transmission is completed just after the Slave’s communications ser-
vicing ends.
Output
point
Master's cycle time (10 ms)
Program
execution
Transmission time (39 ms)
Slave's cycle time (15 ms)
Min. I/O res
p
onse time = 8+10+39+15+10 = 82 ms
Input
point
Input
bit
I/O refresh
Overseeing, communica-
tions, etc.
Input ON delay (8 ms)
Master to
Slave
Output ON
delay (10 ms)
Program
execution
Output
point
Master's cycle time (10 ms)
Transmission time (39 ms 3)
Slave's cycle time (15 ms)
Max. I/O response time = 8 + 10 2 + 39 3 + 15 2 + 10 = 185 ms
I/O refresh
Overseeing, communica-
tions, etc.
Input ON delay (8 ms)
Input
point
Input
bit
Master to
Slave
Slave to
Master
Master to
Slave
Output ON
delay (10 ms)
Program
execution
Program
execution
Program
execution
Program
execution

Omron CPM1 Specifications

General

Model	CPM1
Manufacturer	Omron
Instruction Set	Basic and advanced instructions
Power Supply	100 to 240 VAC or 24 VDC
Communication	RS-232C
I/O Points	10, 20, 30, or 40 points depending on the model
Timers	Yes, multiple timers available
Counters	Yes, multiple counters available
Input Voltage	24V DC
Output Type	Relay or transistor
Number of I/O Points	10, 20, 30, 40
Communication Ports	RS-232C (optional)
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C
Humidity	10% to 90% (non-condensing)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
Program Memory	2048 steps (2K steps)
