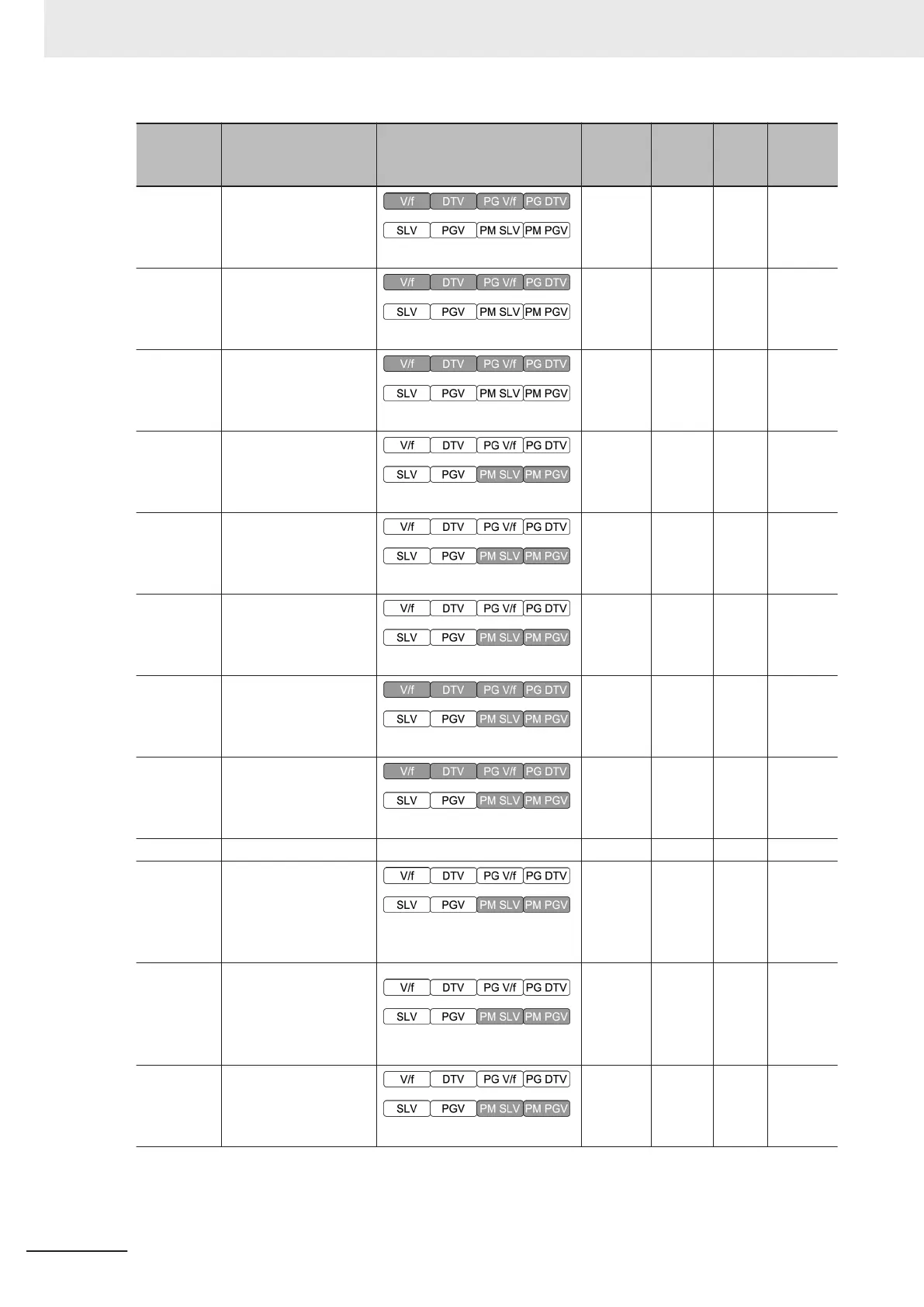

Omron M1 Series User Manual

Parameter
No.
Function name Monitor or Data Range
Default
data
Setting
during
RUN
Unit Page
A48
Speed Control 2 Out-
put Filter
0.000 to 0.100 s
0.002
Availa-
ble
s
page
6-26
A49
Speed Control 2 Notch
Filter Resonance Fre-
quency
1 to 500 Hz
200
Availa-
ble
Hz
page
6-26
A50
Speed Control 2 Notch
Filter Attenuation Lev-
el
0 to 40 dB
0
Availa-
ble
dB
page
6-26
A51
2nd Cumulative Motor
Run T
ime
0 to 9,999 (in 10 hours)
0 -
10
hex
page
7-93
A52
2nd Startup Counter
for Motor
0 to 65,535
0
Availa-
ble
-
page
7-93
A53
2nd Motor 2 %X Cor-
rection Factor 1
0 to 300 %
100
Availa-
ble
%
page
6-65
A55
Torque Current for 2nd
V
ector Control
0.00 to 500.0 A
16.71 - A
page
6-6
A56
Induced Voltage Fac-
tor for 2nd Vector Con-
trol
50 to 100 %
95 - %
page
6-6
A57 Do not use - - - - -
A60
2nd Speed Conver-
sion Coef
ficient
0.00: Using E50 value
0.01 to 600.00
0
Availa-
ble
-
page
6-78
page
7-76
A61
2nd Display Coeffi-
cient for Transport
time / Auxiliary Display
Coefficient for Speed
Monitor
0.000 to 9999
1
Availa-
ble
-
page
7-76
A62
2nd Starting Frequen-
cy Holding Time
0.00 to 10.00 s
0.00
Availa-
ble
s
page
7-114
4 Parameter List
4-140
M1 Series Standard Type User's Manual (I669)

Omron M1 Series Specifications

General

Input Voltage	200-240V AC
Output Voltage	3-phase 200 to 240 VAC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Communication	RS-485, Modbus RTU
Enclosure	IP20
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
Frequency Range	0.5-400 Hz
Storage Temperature	-20°C to +65°C
