7 Wiring
7 - 10
NX-series EtherNet/IP Coupler Unit User’s Manual (W536)

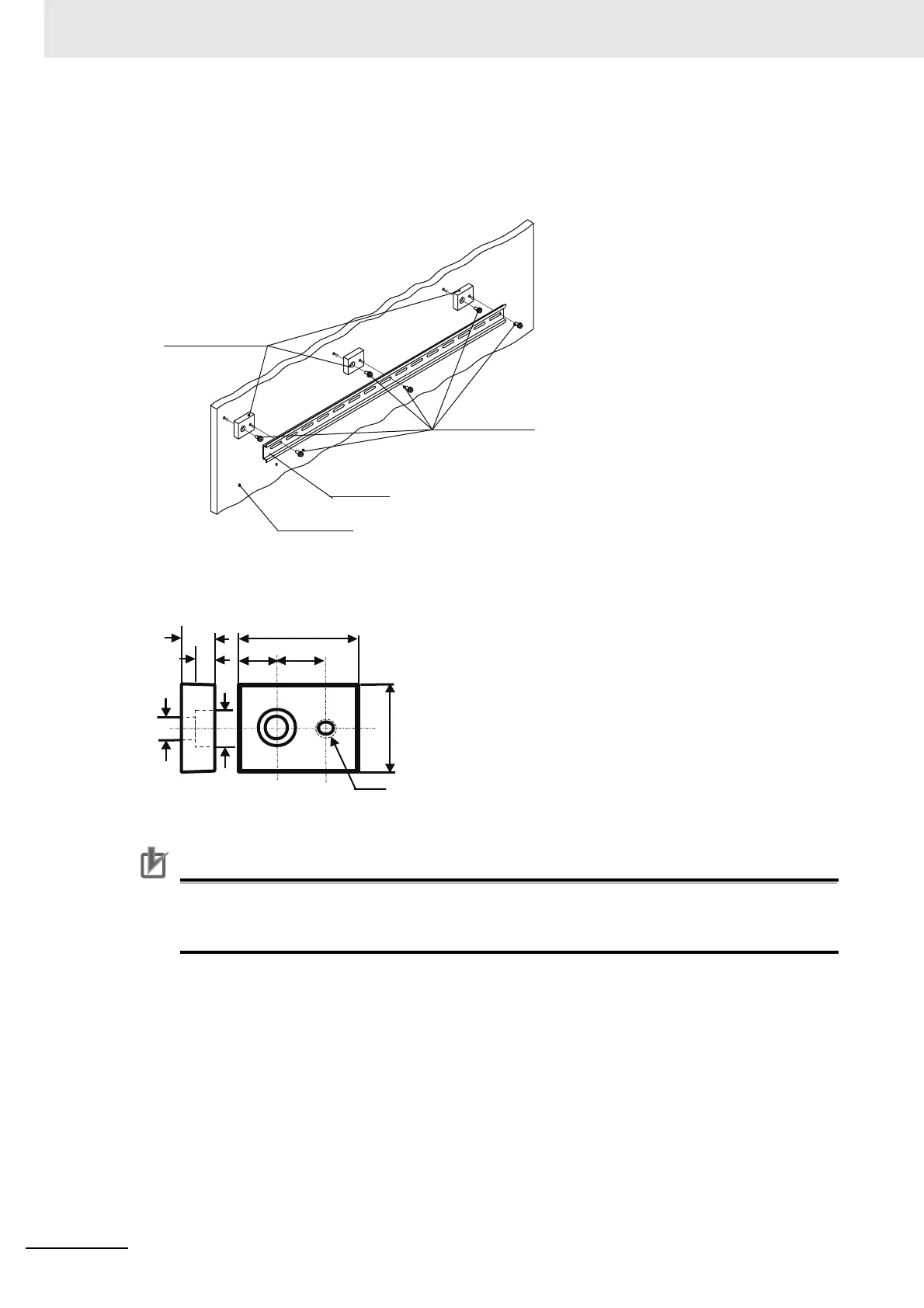

 Installing DIN Track Insulation Spacers and DIN Track
Secure the DIN Track Insulation Spacers to the control panel with screws, and then secure the DIN
Track to the DIN Track Insulation Spacers. The recommended tightening torque for M4 screws is 1.2
N·m.
• DIN Track Insulation Spacers
NX-AUX01 (OMRON Corporation)
Precautions for Correct Use
If you use DIN Track Insulation Spacers to install an EtherNet/IP Slave Terminal, the height will
be increased by approximately 10 mm. Make sure that the EtherNet/IP Slave Terminal and con-
necting cables do not come into contact with other devices.
DIN Track
Insulation Spacers
Control panel
DIN Track
Screws, M4×10
35
14.810
32.7
4.5 dia.
6
10
M4
10 dia.
