9 - 51
9 Setting Up Slave Terminals
NX-series EtherNet/IP Coupler Unit User’s Manual (W536)
9-5 Setting Tag Data Links
9
9-5-5 Creating Tags and Tag Sets

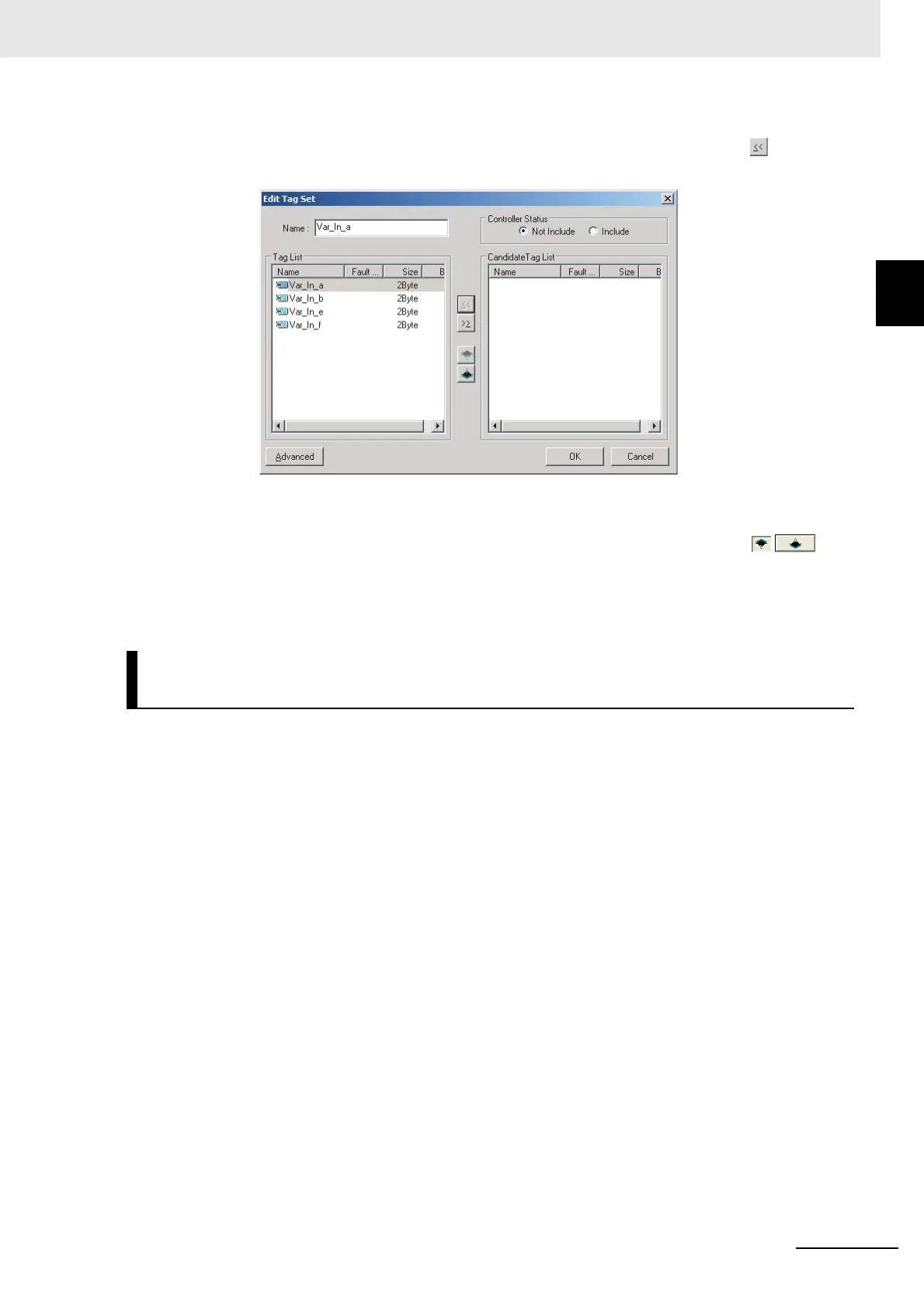

20 Select the tags that you want to add from the Candidate Tag List and click the button.
If you include the Controller status in the tag set, you can register up to only seven tags, and two
bytes are added to the size. Data is sent and received in the order it is displayed in the tag list.
To change the order of a tag, select the tag and click the Up and Down buttons ( ).
21 To confirm the changes, click the OK button at the bottom of the Edit Tag Set Dialog Box.
22 Click the OK button in the Edit Device Parameters Dialog Box.
If the CJ2H-CPU6
□-EIP or CJ2M-CPU3□ is used, you can create network symbols/variables using
the CX-Programmer, import them into the Network Configurator, and then create tags and tag sets. Use
the following procedure.
Creating Global Symbols
Create global symbol with the Global Symbol Editor of the CX-Programmer and select Input or Out-
put for the network variable properties. Save the project when you are finished.
Any global symbols with Input or Output set for the network variable property will be imported when
the import procedure is performed from the Edit Device Parameters Dialog Box.
2) Importing Network Symbols/Variables Created with the CX-Pro-
grammer to the Network Configurator
To Next Page
