6-10
6-4 Setting the Mode
6
Operation

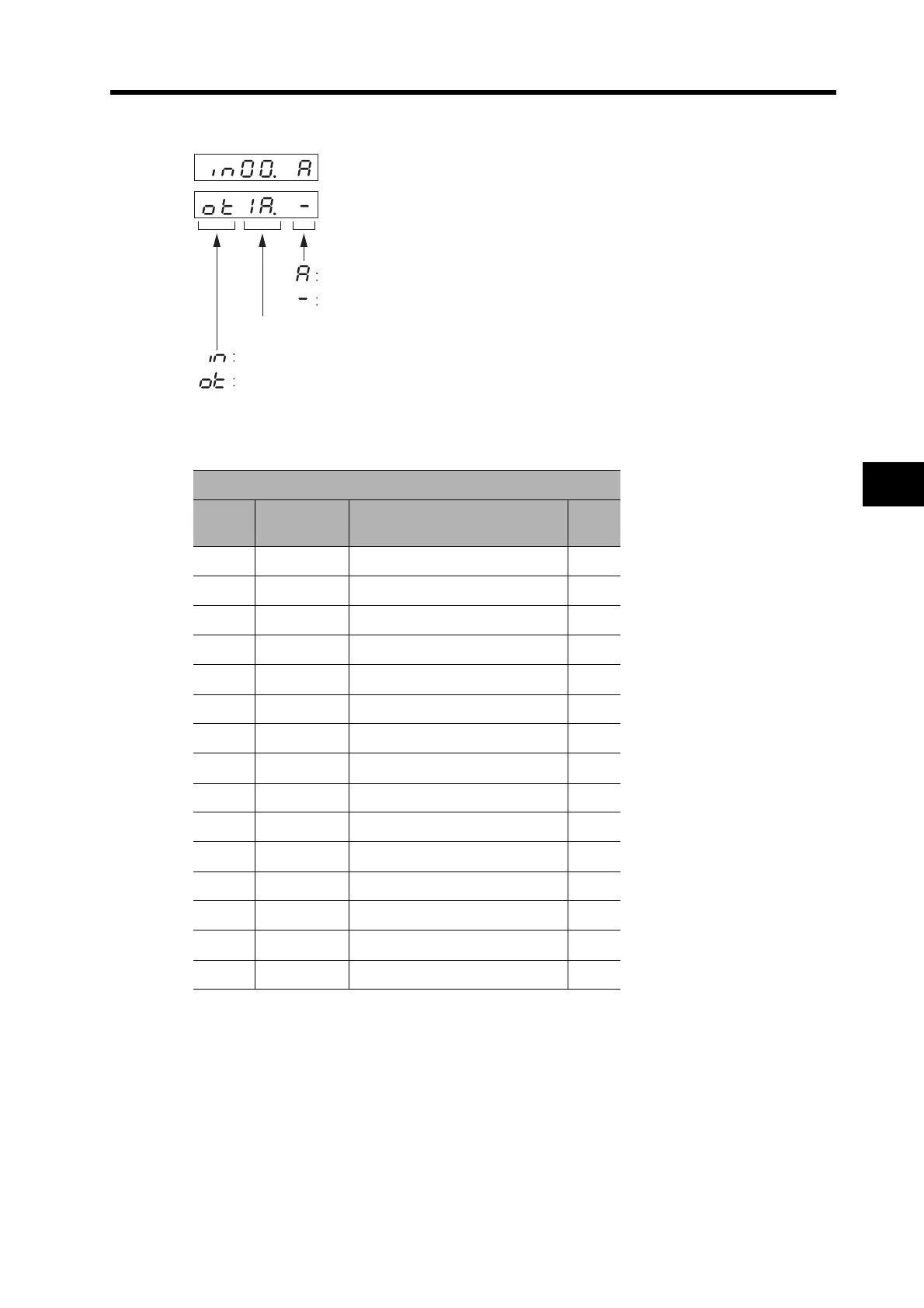

I/O Signal Status
• Displays the status of the control input and output signals connected to CN1.
Input Signals
CN1
Signal
No.
Abbreviation Name
Pin
No.
00 RUN RUN command 29
01 RESET Alarm reset 31
02 NOT Reverse drive prohibit 8
03 POT Forward drive prohibit 9
04 TVSEL Control mode switch 32
05 VZERO Zero speed designation 26
06 GESEL Electronic gear switch 28
08 IPG Pulse disable 33
09 GSEL Gain switch 27
0A ECRST Deviation counter reset 30
0C VSEL1 Internally set speed selection 1 33
0D VSEL2 Internally set speed selection 2 30
13 DFSEL Vibration filter switch 26
14 VSEL3 Internally set speed selection 3 28
15 TLSEL Torque limit switch 27
Input signal No. 00 ON
Output signal No. 1A OFF or disabled
ON
OFF or disabled
Signal No. display (0 to 1F hex)
Input
Out
ut
