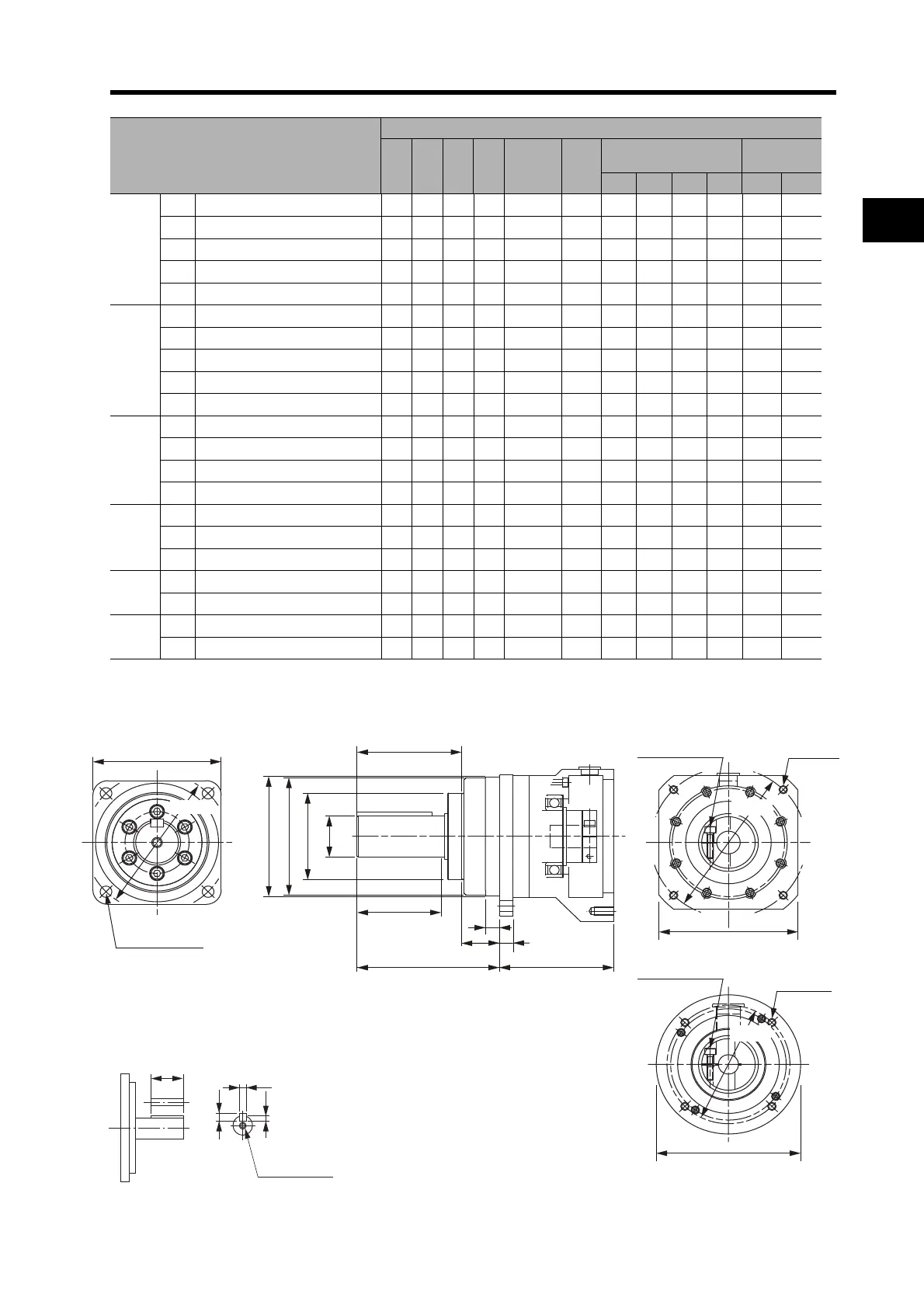

2-2 External and Mounting Hole Dimensions
2
Standard Models and Dimensions
*1. This is the set bolt.
Outline Drawings
*2. With the R88G-HPG50@, the height tolerance is 8 mm (D3 dia., h: 8).
Model
Dimensions (mm)
G S T Z1 Z2 AT
*1
Key dimensions
Tap
dimensions
QK b h t1 M L
1 kW
1/5 R88G-HPG32A051K0B@ 13 40 82 11 M6×12 M6 70 12 8 5.0 M10 20
1/11 R88G-HPG32A111K0B
@ 13 40 82 11 M6×12 M6 70 12 8 5.0 M10 20
1/21 R88G-HPG32A211K0B@ 13 40 82 11 M6×12 M6 70 12 8 5.0 M10 20
1/33 R88G-HPG32A331K0B
@ 13 40 82 11 M6×12 M6 70 12 8 5.0 M10 20
1/45 R88G-HPG50A451K0B@ 16 50 82 14 M6×10 M6 70 14 9 5.5 M10 20
1.5 kW
1/5 R88G-HPG32A052K0B
@ 13 40 82 11 M8×10 M6 70 12 8 5.0 M10 20
1/11 R88G-HPG32A112K0B@ 13 40 82 11 M8×10 M6 70 12 8 5.0 M10 20
1/21 R88G-HPG32A211K5B
@ 13 40 82 11 M8×10 M6 70 12 8 5.0 M10 20
1/33 R88G-HPG50A332K0B
@ 16 50 82 14 M8×10 M6 70 14 9 5.5 M10 20
1/45 R88G-HPG50A451K5B
@ 16 50 82 14 M8×10 M6 70 14 9 5.5 M10 20
2 kW
1/5 R88G-HPG32A052K0B
@ 13 40 82 11 M8×10 M6 70 12 8 5.0 M10 20
1/11 R88G-HPG32A112K0B
@ 13 40 82 11 M8×10 M6 70 12 8 5.0 M10 20
1/21 R88G-HPG50A212K0B
@ 16 50 82 14 M8×10 M6 70 14 9 5.5 M10 20
1/33 R88G-HPG50A332K0B
@ 16 50 82 14 M8×10 M6 70 14 9 5.5 M10 20
3 kW
1/5 R88G-HPG32A053K0B@ 13 40 82 11 M8×18 M6 70 12 8 5.0 M10 20
1/11 R88G-HPG50A113K0B
@ 16 50 82 14 M8×16 M6 70 14 9 5.5 M10 20
1/21 R88G-HPG50A213K0B@ 16 50 82 14 M8×16 M6 70 14 9 5.5 M10 20
4 kW
1/5 R88G-HPG32A054K0B
@ 13 40 82 11 M8×25 M6 70 12 8 5.0 M10 20
1/11 R88G-HPG50A115K0B@ 16 50 82 14 M8×25 M6 70 14 9 5.5 M10 20
5 kW
1/5 R88G-HPG50A055K0B
@ 16 50 82 14 M8×25 M6 70 14 9 5.5 M10 20
1/11 R88G-HPG50A115K0B
@ 16 50 82 14 M8×25 M6 70 14 9 5.5 M10 20
S dia.,h: 7
D5 dia. D4 dia.
Four, Z2
Set bolt (AT)
C2 dia.
C1 × C1
D1 dia.
Four, Z1 dia.
D2 dia.
C2 × C2
Four, Z2
Set bolt (AT)
D2 dia.
E
T
F1
F2
LR
G
LM
D3 dia.,h: 7 *2
QK
Key and Tap Dimensions
b
h
t1
M (depth: L)
