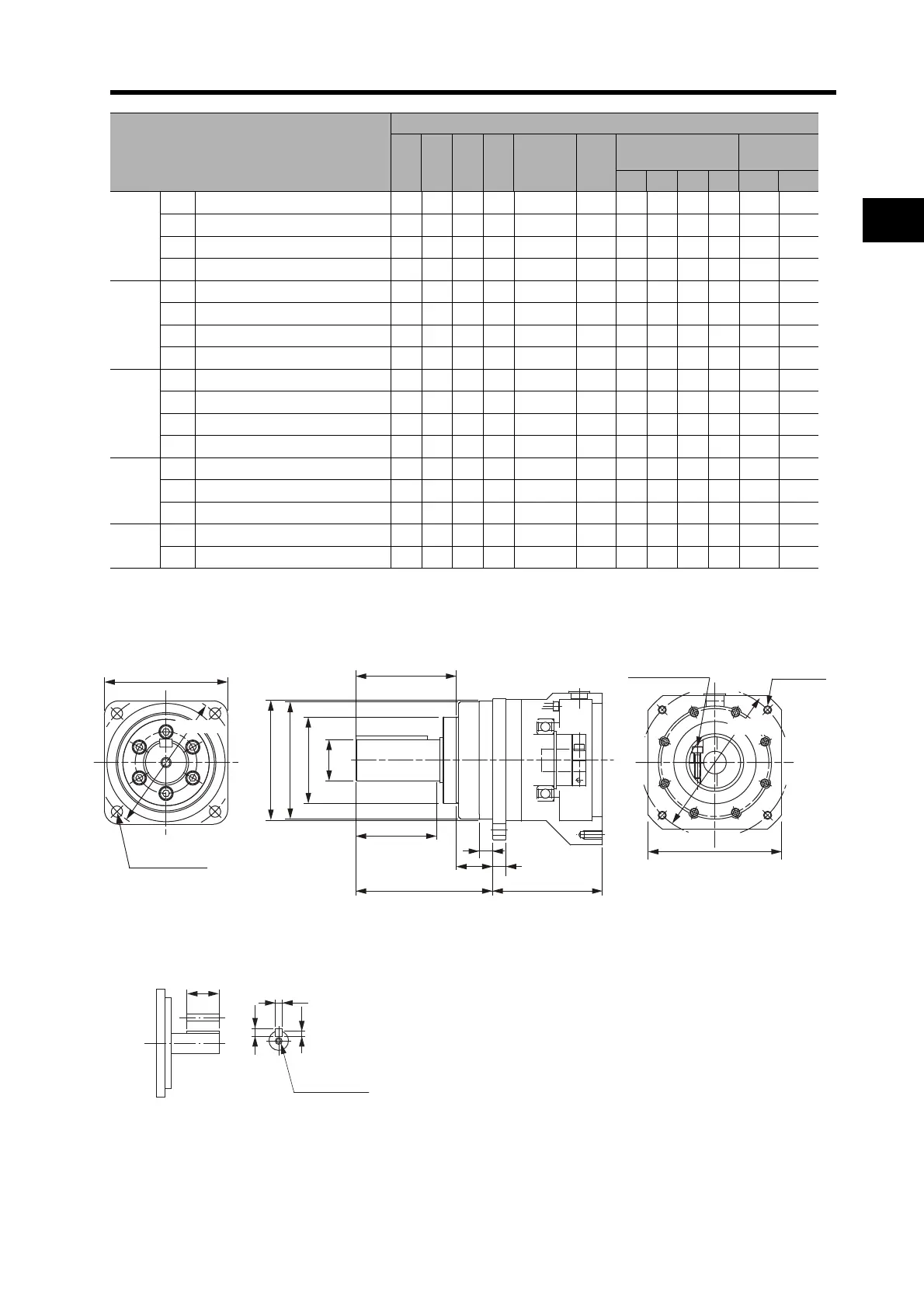

2-2 External and Mounting Hole Dimensions
2
Standard Models and Dimensions
*1. This is the set bolt.
Outline Drawings
*2. With the R88G-HPG50@/-HPG65@, the height tolerance is 8 mm (D3 dia., h: 8).
Model
Dimensions (mm)
G S T Z1 Z2 AT
*1
Key dimensions
Tap
dimensions
QK b h t1 M L
900 W
1/5 R88G-HPG32A05900TB@ 13 40 82 11 M8×25 M6 70 12 8 5.0 M10 20
1/11 R88G-HPG32A11900TB
@ 13 40 82 11 M8×25 M6 70 12 8 5.0 M10 20
1/21 R88G-HPG50A21900TB@ 16 50 82 14 M8×25 M6 70 14 9 5.5 M10 20
1/33 R88G-HPG50A33900TB
@ 16 50 82 14 M8×25 M6 70 14 9 5.5 M10 20
2 kW
1/5 R88G-HPG32A052K0TB@ 13 40 82 11 M12×25 M6 70 12 8 5.0 M10 20
1/11 R88G-HPG50A112K0TB
@ 16 50 82 14 M12×25 M6 70 14 9 5.5 M10 20
1/21 R88G-HPG50A212K0TB@ 16 50 82 14 M12×25 M6 70 14 9 5.5 M10 20
1/25 R88G-HPG65A255K0SB
@ 25 80 130 18 M12×25 M8 110 22 14 9.0 M16 35
3 kW
1/5 R88G-HPG50A055K0SB
@ 16 50 82 14 M12×25 M6 70 14 9 5.5 M10 20
1/11 R88G-HPG50A115K0SB
@ 16 50 82 14 M12×25 M6 70 14 9 5.5 M10 20
1/20 R88G-HPG65A205K0SB
@ 25 80 130 18 M12×25 M8 110 22 14 9.0 M16 35
1/25 R88G-HPG65A255K0SB
@ 25 80 130 18 M12×25 M8 110 22 14 9.0 M16 35
4.5 kW
1/5 R88G-HPG50A054K5TB
@ 16 50 82 14 M12×25 M6 70 14 9 5.5 M10 20
1/12 R88G-HPG65A127K5SB
@ 25 80 130 18 M12×25 M8 110 22 14 9.0 M16 35
1/20 R88G-HPG65A204K5TB@ 25 80 130 18 M12×25 M8 110 22 14 9.0 M16 35
6 kW
1/5 R88G-HPG65A057K5SB
@ 25 80 130 18 M12×25 M8 110 22 14 9.0 M16 35
1/12 R88G-HPG65A127K5SB@ 25 80 130 18 M12×25 M8 110 22 14 9.0 M16 35
QK
Key and Tap Dimensions
b
h
t1
M (depth: L)
C1 × C1
Four, Z1 dia.
S dia.,h: 7
D5 dia.
D4 dia.
D1 dia.
Four, Z2
Set bolt (AT)
D2 dia.
C2 × C2
E
T
F1
F2
LR
G
LM
D3 dia.,h: 7 *2
