2-58
2-2 External and Mounting Hole Dimensions
2
Standard Models and Dimensions
*1 This is the set bolt.

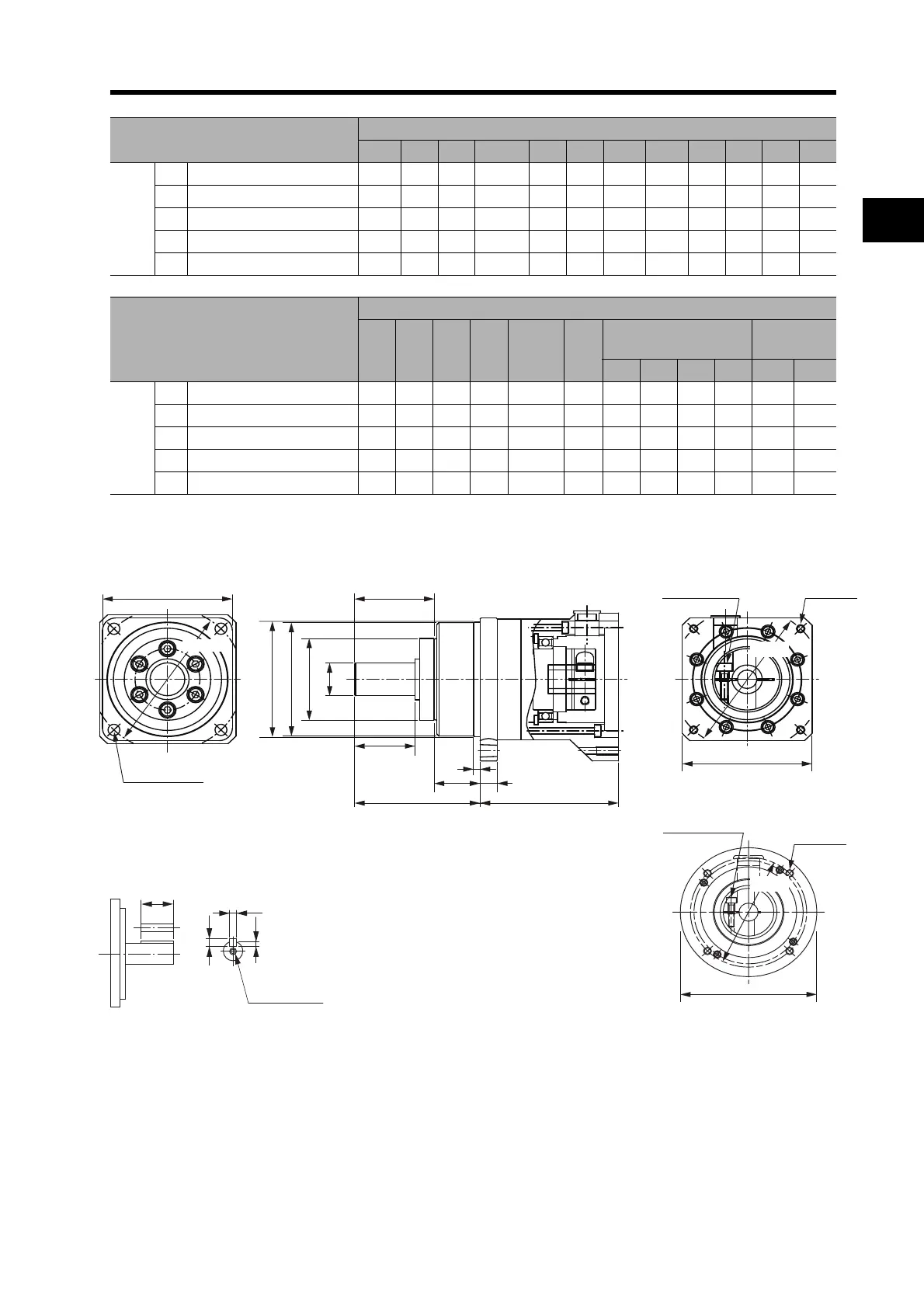

Outline Drawings
Model
Dimensions (mm)
LM LR C1 C2 D1 D2 D3 D4 D5 E F1 F2
400 W
1/5 R88G-HPG20A05400PB@ 78.0 80 90 80×80 105 90 85.0 84.0 59 53 7.5 27
1/11 R88G-HPG20A11400PB@ 78.0 80 90 80×80 105 90 85.0 84.0 59 53 7.5 27
1/21 R88G-HPG20A21400PB@ 78.0 80 90 80×80 105 90 85.0 84.0 59 53 7.5 27
1/33 R88G-HPG32A33400PB@ 104.0 133 120 122 dia. 135 90 115.0 114.0 84 98 12.5 35
1/45 R88G-HPG32A45400PB@ 104.0 133 120 122 dia. 135 90 115.0 114.0 84 98 12.5 35
Model
Dimensions (mm)
G S T Z1 Z2 AT
*1
Key dimensions
Tap
dimensions
QK b h t1 M L
400 W
1/5 R88G-HPG20A05400PB@ 10 25 42 9.0 M5×12 M4 36 8 7 4.0 M6 12
1/11 R88G-HPG20A11400PB@ 10 25 42 9.0 M5
×12 M4 36 8 7 4.0 M6 12
1/21 R88G-HPG20A21400PB@ 10 25 42 9.0 M5
×12 M4 36 8 7 4.0 M6 12
1/33 R88G-HPG32A33400PB@ 13 40 82 11.0 M5
×12 M6 70 12 8 5.0 M10 20
1/45 R88G-HPG32A45400PB@ 13 40 82 11.0 M5
×12 M6 70 12 8 5.0 M10 20
C1 × C1
Four, Z1 dia.
S dia.,h: 7
D5 dia.
D4 dia.
C2 × C2
D2 dia.
D1 dia.
Four, Z2
Set bolt (AT)
C2 dia.
Four, Z2
Set bolt (AT)
D2 dia.
E
T
F1
F2
LR
G
LM
D3 dia.,h: 7
QK
Key and Tap Dimensions
b
h
t1
M (depth: L)
