ZFX-C User’s Manual
Setting Calibration by Sampling Input
With this method, calibration is set based on the measurement results. First, a pre-registered model is
measured to find its position (in sub-pixel units). When the actual coordinates of the position that was found is
input, the calibration data is automatically calculated.
Setup method
Image adjustment
The image adjustment function can be set for calibration measurement.
X MENU mode - [Setup] - [Cameras] - [Camera 0/1] - [Calibration] - [Sampling input] - [Img Adj]
Registering the model
Register the model to be used for calibration.
X MENU mode - [Setup] - [Cameras] - [Camera 0/1] - [Calibration] - [Sampling input] - [Region]
Item Description
Color filter
For details, see "Image Adjustment". p.99
Filtering
BGS level
Item Description
Region Registers the model to be used for calibration.
Search region Sets the region in which to search for the model.

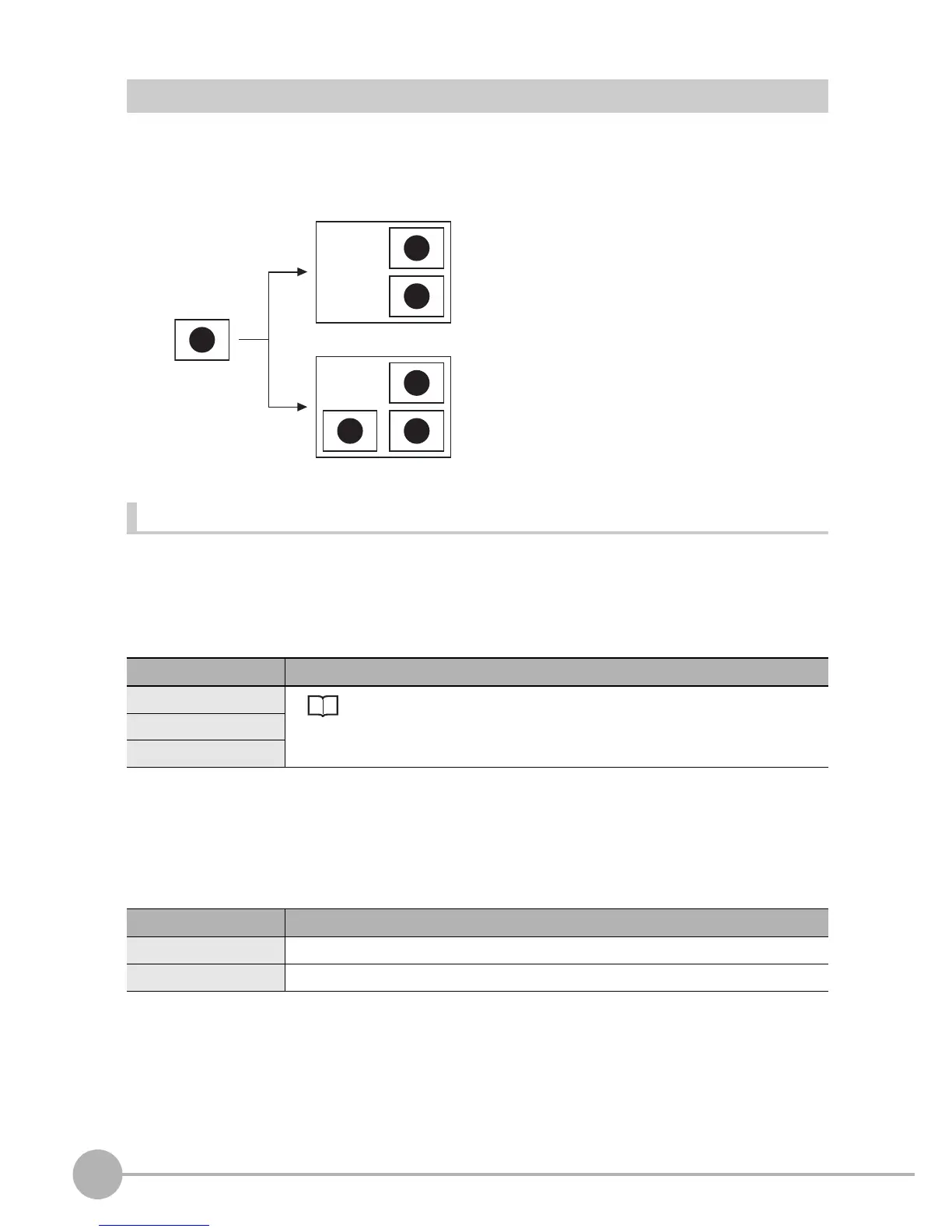

When the scale in the X and Y directions is the same
Model
Measure 2 locations and input the actual coordinates.
When each of the scales in the X and Y directions are different
Measure 3 locations and input the actual coordinates.
To Next Page
