Omron ZFX-C

Specifications and External Dimensions
182
ZFX-C User’s Manual

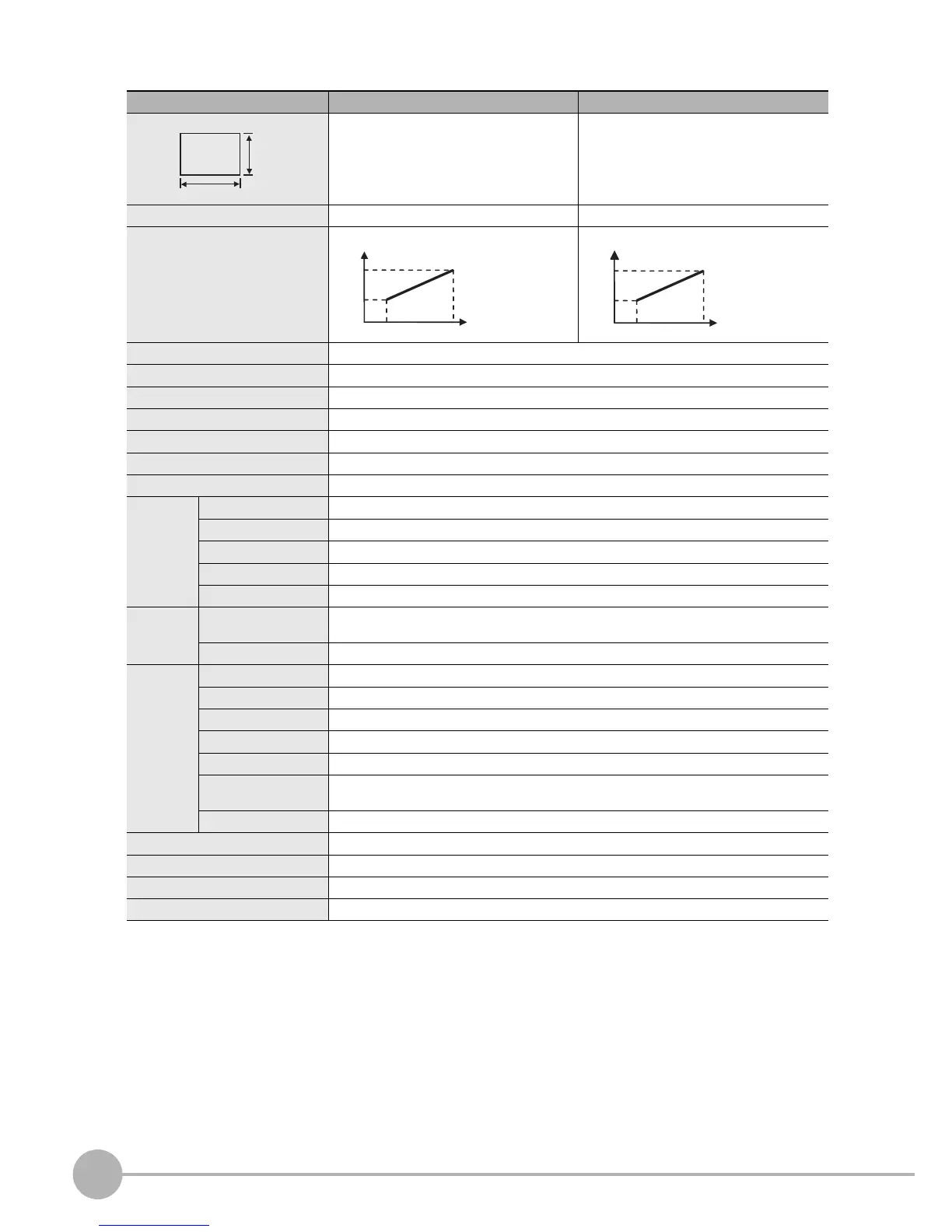

ZFX-SR10R/SR50R (monochrome type)
Item ZFX-SR10R ZFX-SR50R
Detection range (H x V) 4.9 mm x 4.9 mm to 8.9 mm x 8.9 mm
(variable range)
9.8 mm x 9.8 mm to 49 mm x 49 mm
(variable range)
Setting distance (L) 34 mm to 49 mm 38 mm to 194 mm
Relationship between setting
distance and detection range
Image capture element All-pixel capture inter-line transfer type 1/3" CCD (monochrome)
Effective number of pixels 659(H) x 494 (V)
Pixel size 7.4 µm (H) x 7.4 µm (V)
Shutter speed 1/170 to 1/20000 s
Partial function (partial capture) OFF
Image rate function Fine, Normal, High speed
Frame rate (at capture of entire screen) 90 fps
Lighting Lighting method Pulse lighting
LED Red LED
Type Direct lighting
Guide light Available (center, measurement region)
Optional lighting I/F Not available
Ratings Power supply voltage
(supplied from Controller)
15 VDC
Current consumption Approx. 200 mA
Operation
environment
robustness
Ambient temperature range Operating: 0 to + 40°C, Storage: -20 to +65°C (with no icing or condensation)
Ambient humidity range Operating and storage: 35% to 85% (with no condensation)
Ambient atmosphere No corrosive gases allowed
Degree of protection IP65 (IEC60529)
Dielectric strength 1000 VAC 50 Hz/60 Hz 1 min
Vibration resistance
(durability)
10 to 150 Hz Single-amplitude 0.35 mm 10 times for 8 min each in X, Y, and Z directions
Shock resistance (destructive) 150 m/s
2
3 times each in 6 directions (up/down, left/right, forward/backward)
Connection method Cable built-in type (Robot cable length 2 m)
Material Case: ABS, Mounting fixture (base): Aluminum, Mounting fixture (bracket): Stainless steel
Weight Approx. 270 g (including mounting fixture and cable)
Accessories Mounting fixture (ZFV-XMF3) 1 set, Ferrite core 2 p'ces, Instruction Sheet
Detection
range
V
H
49
mm
34
mm
4.9 mm 8.9 mm
Detection
range (H)
Setting distance (L)
9.8 mm
194
mm
38
mm
49 mm
Detection
range (H)
Setting distance (L)
