Omron ZFX-C User Manual

Specifications and External Dimensions
ZFX-C User’s Manual
7
APPENDICES
183

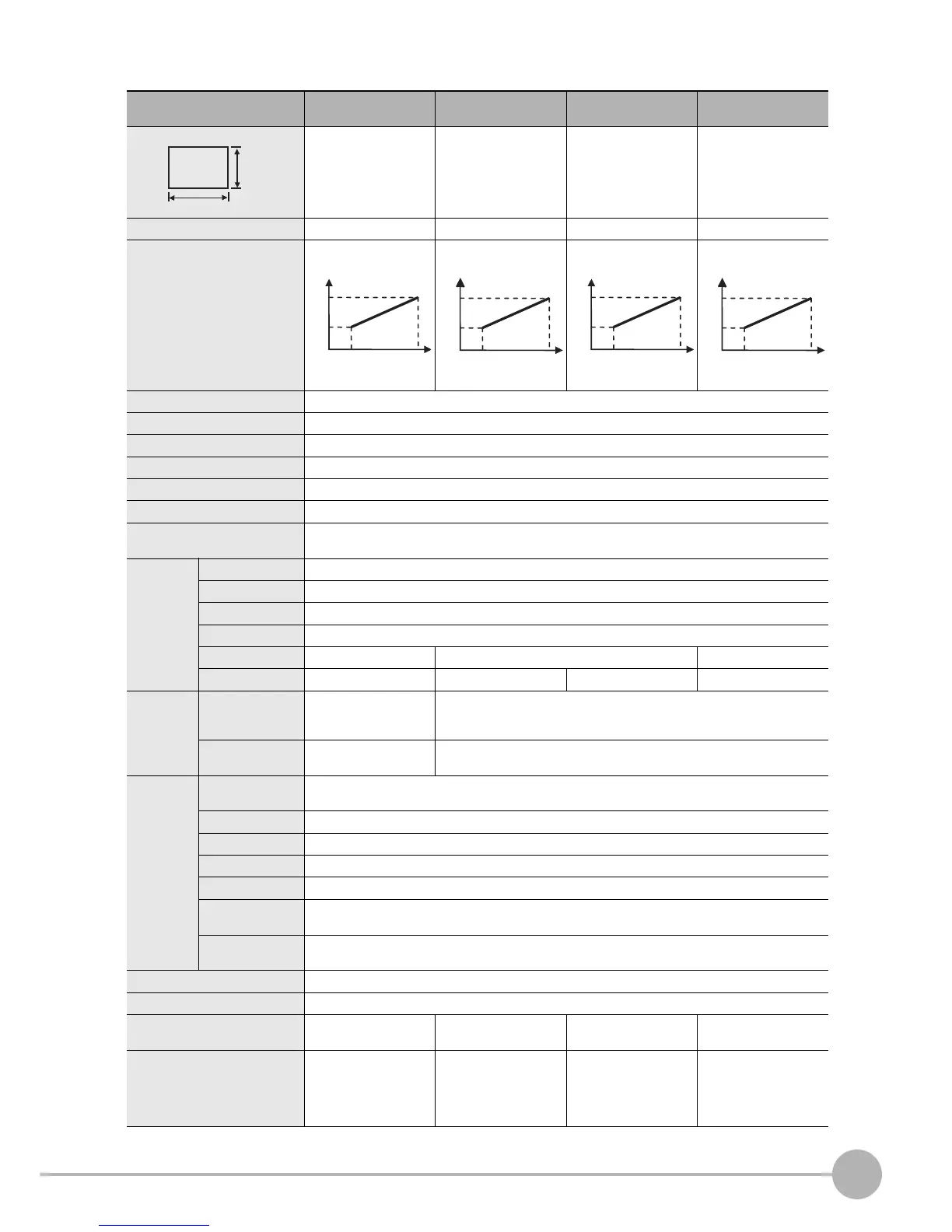

ZFX-SC10/SC50/SC50W/SC90/SC90W/SC150/SC150R/SC150W (color type)
*1: Applicable standards IEC60825-1:1993 +A1:1997 +A2:2001, EN60825-1:1994 +A2:2001 +A1:2002
Item ZFX-SC10 ZFX-SC50/SC50W ZFX-SC90/SC90W ZFX-SC150/SC150R/
SC150W
Detection range (H x V) 4.9 mm x 4.9 mm to
8.9 mm x 8.9 mm
(variable range)
9.8 mm x 9.8 mm to
49 mm x 49 mm
(variable range)
49 mm x 49 mm to
89 mm x 89 mm
(variable range)
89 mm x 89 mm to
148 mm x 148 mm
(variable range)
Setting distance (L) 34 mm to 49 mm 31 mm to 187 mm 67 mm to 142 mm 115 mm to 227 mm
Relationship between
setting distance and
detection range
Image capture element All-pixel capture inter-line transfer type 1/3" CCD (color)
Effective number of pixels 659(H) x 494 (V)
Pixel size 7.4 µm (H) x 7.4 µm (V)
Shutter speed 1/170 to 1/20000 s
Partial function (partial capture) 1/2 partial, 1/4 partial
Image rate function Not available
Frame rate
(at capture of entire screen)
90 fps
Lighting Lighting method Pulse lighting
LED White LED
Type Direct lighting
Guide light Not available
Optional lighting I/F Not available Available (ZFV-LT) Not available
Indicator Class
*1
Class 1 Class 2 Class 2 Class 1
Ratings Power supply
voltage (supplied
from Controller)
15 VDC 15 VDC, 48 VDC
Current
consumption
Approx. 200 mA Approx. 350 mA (15 VDC: approx. 150 mA, 48 VDC: approx. 200 mA)
(including current consumption when optional lighting is connected)
Operation
environment
robustness
Ambient
temperature range
Operating: 0 to + 40°C, Storage: -20 to +65°C (with no icing or condensation)
Ambient humidity range Operating and storage: 35% to 85% (with no condensation)
Ambient atmosphere No corrosive gases allowed
Degree of protection ZFX-SC___: IP65 (IEC60529), ZFX-SC___W: IP67 (IEC60529)
Dielectric strength 1000 VAC 50 Hz/60 Hz 1 min
Vibration resistance
(durability)
10 to 150 Hz Single-amplitude 0.35 mm Acceleration: 50 m/s
2
10 times for 8 min each in X, Y, and
Z directions
Shock resistance
(destructive)
150 m/s
2
3 times each in 6 directions (up/down, left/right, forward/backward)
Connection method Cable built-in type (ZFX-SC___R: Robot cable length 2 m, Otherwise: Standard cable length 2 m)
Material Case: ABS, mounting fixture: PBT
Weight Approx. 200 g (including
mounting fixture and cable)
Approx. 270 g (including
mounting fixture and cable)
Approx. 300 g (including
mounting fixture and cable)
Approx. 600 g (including
mounting fixture and cable)
Accessories mounting fixture
(ZFV-XMF) 1 p'ce,
Ferrite core 2 p'ces,
Instruction Sheet
mounting fixture
(ZFV-XMF2) 1 p'ce,
Ferrite core 2 p'ces,
Warning label 1,
Instruction Sheet
mounting fixture
(ZFV-XMF2) 1 p'ce,
Ferrite core 2 p'ces,
Warning label 1,
Instruction Sheet
Ferrite core 2 p'ces,
Instruction Sheet
Detection
range
V
H
49
mm
34
mm
4.9 mm 8.9 mm
Detection range (H)
(L)
Setting distance
9.8 mm
187
mm
31
mm
49 mm
Detection range (H)
(L)
Setting distance
142
mm
67
mm
49 mm 89 mm
Detection range (H)
(L)
Setting distance
89 mm
227
mm
115
mm
148 mm
Detection range (H)
(L)
Setting distance
